Wastewater/Activity/PacpInspection/1.0Apr 25, 2017, 09:11 AM
21 0460_21 0459 _20170425_024138.mp4
- Date
- 04/25/2017
- W/O
- 630321
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00777
- PipeID
- P15669
- Time
- 2:11 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4513
- Sewer Name
- 21 MOUNT SAN ANTONIO TRUNK
- City
- WALNUT
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- WO_630321_TV21046_APR2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 21 0459
- Downstream MH
- 21 0460
- Dir. of Survey
- Upstream
- Length Surveyed
- 352.5 ft.
- Total Length
- 352.5 ft.
- Structural Index
- 2
- Structural Quick
- 3122
- Structural Rating
- 7
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (4)
3.5 ft. - Deposits Attached Ragging, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

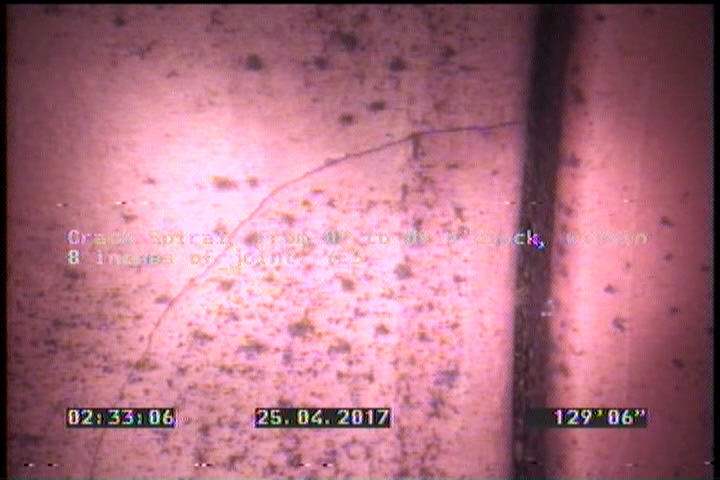

129.5 ft. - Crack Spiral, from 07 to 09 o'clock, within 8 inches of joint: YES

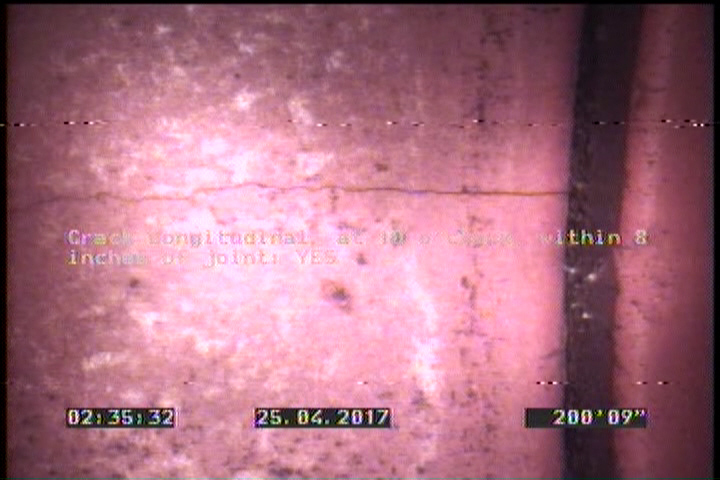

200.8 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

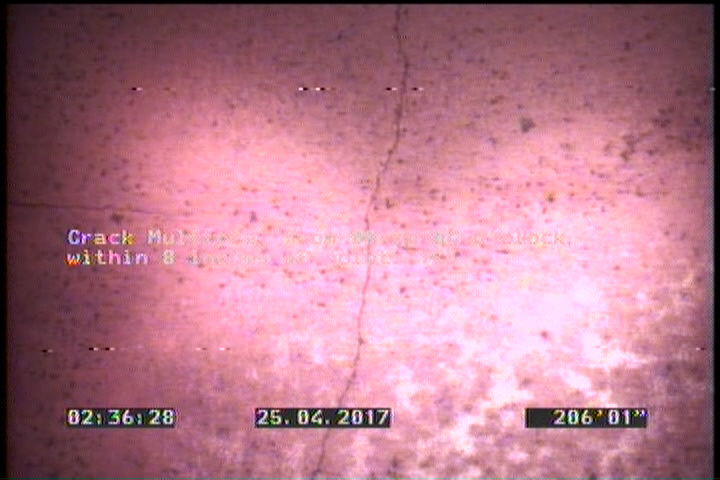

206.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 320 | CM | — |
| 200.8 | CL | — |
| 352.5 | DAR | — |
| 206.1 | CM | — |
| 352.5 | AMH | 21 0460 |
| 129.5 | CS | — |
| 0 | MWM | — |
| 0 | AMH | 21 0459 |
| 3.5 | DAR | — |
Properties (4)
- additional_info
- SC340727
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-04-25T02:11:19-07:00
