  • 18 1007_18 1006 _19042017_032118.mp4

Date
04/19/2017
W/O
630156
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00677
PipeID
P14861
Time
3:20 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4268
Sewer Name
18 LA HABRA HEIGHTS TRUNK, SECTION 1
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
22
Purpose
Routine Assessment
Project
WO_630156_TV18008_APR2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
18 1007
Downstream MH
18 1006
Dir. of Survey
Downstream
Length Surveyed
302.3 ft.
Total Length
302.3 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2111
O&M Rating
3
Overall Index
2
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole 18 1007 to 18 1006
MH: 18 1007MH: 18 1006downstream0 ft. AMH - Upstream Manhole, Survey Begins - 18 10070 ft. MGO - General Observation - LATERAL AT MH 3 OCLOCK ACTIVE0 ft. VC - Vermin Cockroach0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area2.1 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2.1 ft. MGO - General Observation - MAGNESIUM COATING START26.6 ft. MGO - General Observation - LINER68.3 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"145.3 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"300.4 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish300.4 ft. MGO - General Observation - MAGNESIUM COATING END302.3 ft. AMH - Downstream Manhole, Survey Ends - 18 1006

Observation photos (1)

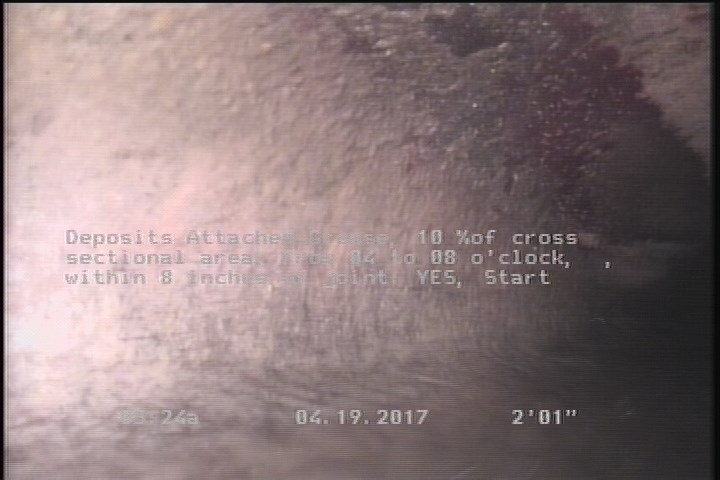

  • Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.1 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P14861Work order 630156

Observations (13)

DistanceCodeObservation
0AMH18 1007
145.3TFA—
0MGOLATERAL AT MH 3 OCLOCK ACTIVE
2.1DAGS—
2.1MGOMAGNESIUM COATING START
300.4DAGS—
0VC—
0MWM—
26.6MGOLINER
68.3TFA—
300.4MGOMAGNESIUM COATING END
0MWL—
302.3AMH18 1006

Properties (6)

additional_info
SC306848
custom_field_two
4
customer
LACSD
datetime
2017-04-19T03:20:37-07:00
lining
CIPP
year_laid
38344
