Wastewater/Activity/PacpInspection/1.0May 22, 2017, 10:17 AM
- Date
- 05/22/2017
- W/O
- 618894
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00258
- PipeID
- P03146
- Time
- 3:17 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4558
- Sewer Name
- 02 EAST COMPTON BOULEVARD EXTENSION TRUNK
- City
- BELLFLOWER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 33
- Purpose
- Routine Assessment
- Project
- WO_618894_TV02057_MAY2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 0601
- Downstream MH
- 02 0600
- Dir. of Survey
- Downstream
- Length Surveyed
- 357 ft.
- Total Length
- 357 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2M00
- O&M Rating
- 140
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 143
Observation photos (2)

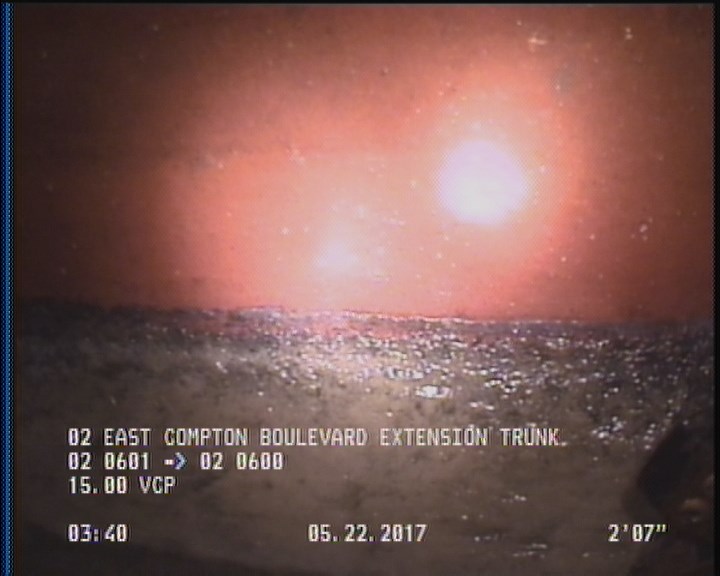

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
81.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 81.7 | CM | — |
| 282.4 | TFC | — |
| 0 | AMH | 02 0601 |
| 178.9 | TFA | — |
| 79.7 | TFA | — |
| 357 | AMH | 02 0600 |
| 0 | MWM | — |
| 0 | MWL | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 357 | MGO | COCKROACHES IN MANHOLE |
| 354 | DAGS | — |
| 2 | DAGS | — |
Properties (4)
- additional_info
- SC345234
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-05-22T03:17:56-07:00
