Wastewater/Activity/PacpInspection/1.0May 17, 2017, 07:27 AM
- Date
- 05/17/2017
- W/O
- 635479
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00709
- PipeID
- P14739
- Time
- 12:27 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4498
- Sewer Name
- 18 SO WHITTIER OUTFALL RLF TR, SECTS 1,2A,2B,2C,&3
- City
- WHITTIER
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 26
- Purpose
- Routine Assessment
- Project
- WO_635479_TV18051_MAY2017
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 18 0888
- Downstream MH
- 18 0887
- Dir. of Survey
- Downstream
- Length Surveyed
- 753.7 ft.
- Total Length
- 753.7 ft.
- Structural Index
- 3
- Structural Quick
- 5\3\
- Structural Rating
- 1450
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 1450
Observation photos (3)

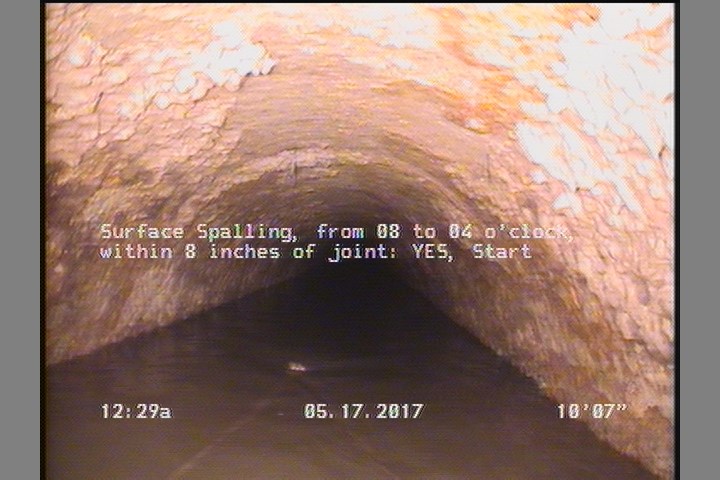

10.6 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

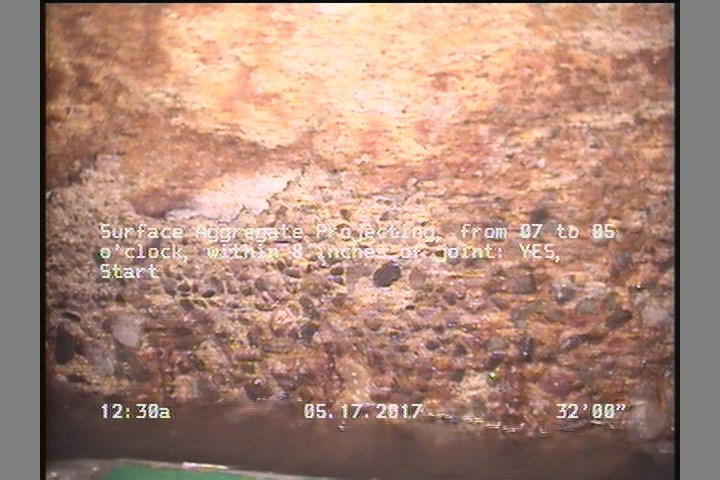

32 ft. - Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

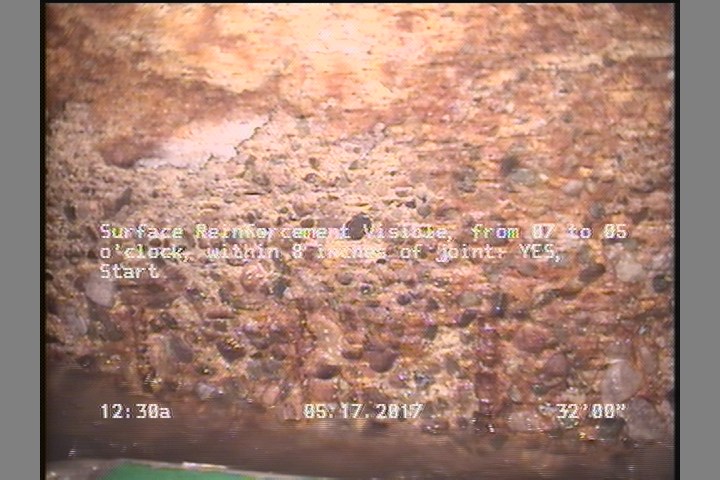

32 ft. - Surface Reinforcement Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 753.7 | SSS | — |
| 10.6 | SSS | — |
| 516.9 | TF | — |
| 32 | SAP | — |
| 32 | SRV | — |
| 0 | MWM | — |
| 0 | AMH | 18 0888 |
| 355.2 | TF | — |
| 0 | MWL | — |
| 753.7 | AMH | 18 0887 |
| 753.7 | SAP | — |
| 750.7 | SRV | — |
Properties (5)
- additional_info
- SC345307
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-05-17T00:27:02-07:00
- sewer_category
- Gravity
