Wastewater/Activity/PacpInspection/1.0Apr 17, 2017, 08:23 AM
15 0570_15 0569 _17042017_012319.mp4
- Date
- 04/17/2017
- W/O
- 630147
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00629
- PipeID
- P12499
- Time
- 1:23 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4468
- Sewer Name
- 15 SANTA ANITA OUTFALL TRUNK
- City
- ARCADIA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- WO_630147_TV15085_APR2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 15 0569
- Downstream MH
- 15 0570
- Dir. of Survey
- Upstream
- Length Surveyed
- 416.6 ft.
- Total Length
- 416.6 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 1
- O&M Quick
- 1100
- O&M Rating
- 1
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (2)

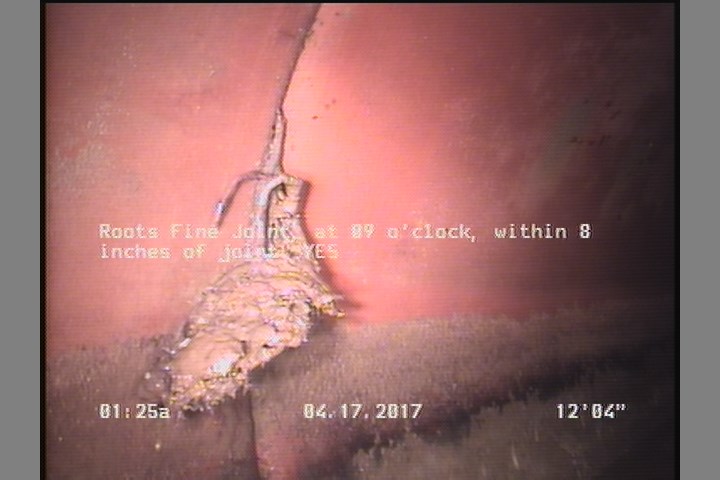

12.4 ft. - Roots Fine Joint, at 09 o'clock, within 8 inches of joint: YES

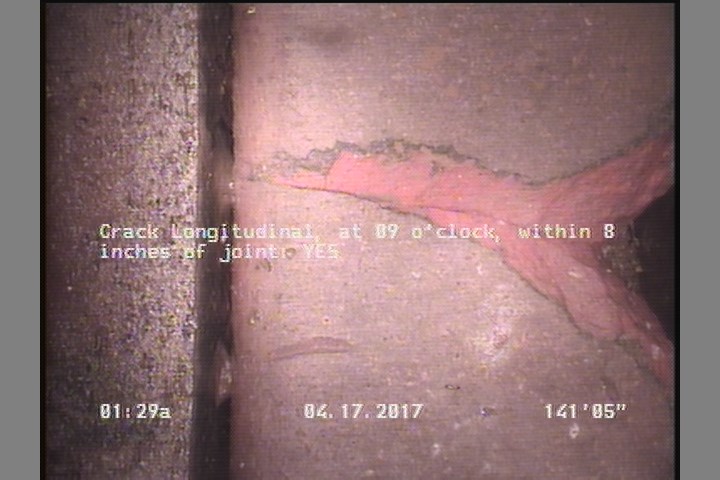

141.4 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 12.4 | RFJ | — |
| 416.2 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 203.3 | TB | — |
| 0 | AMH | 15 0569 |
| 141.4 | CL | — |
| 141.4 | TB | — |
| 0 | MWM | — |
| 416.6 | AMH | 15 0570 |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC345177
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-04-17T01:23:10-07:00
- sewer_category
- Gravity
