Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 18, 2017, 11:12 AM
Date
05/18/2017
W/O
618894
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00258
PipeID
P03180
Time
4:12 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4556
Sewer Name
02 EAST COMPTON BOULEVARD EXTENSION TRUNK
City
DOWNEY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
30
Purpose
Routine Assessment
Project
WO_618894_TV02057_MAY2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
02 0629
Downstream MH
02 0628
Dir. of Survey
Downstream
Length Surveyed
351.9 ft.
Total Length
351.9 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
2
O&M Quick
2M00
O&M Rating
138
Overall Index
2
Overall Quick
—
Overall Rating
143
Pipe schematic from manhole 02 0629 to 02 0628
MH: 02 0629MH: 02 0628downstream0 ft. AMH - Upstream Manhole, Survey Begins - 02 06293.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start15.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"23.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"75 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"83.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"124.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"172.2 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"175.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"186.6 ft. CS - Crack Spiral, from 10 to 12 o'clock, within 8 inches of joint: YES228.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"240.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"246.6 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES256.3 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"276 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"324.7 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"341 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"349.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish351.9 ft. AMH - Downstream Manhole, Survey Ends - 02 0628

Observation photos (3)

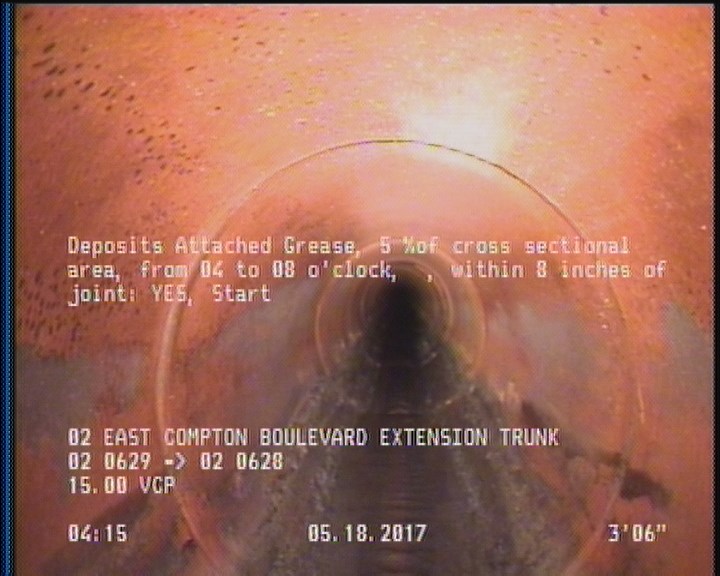

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    3.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

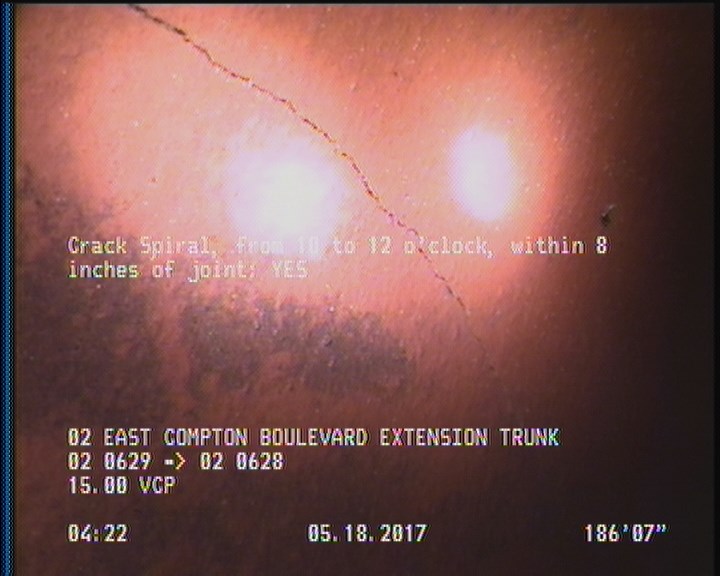

  • Crack Spiral, from 10 to 12 o'clock, within 8 inches of joint: YES

    186.6 ft. - Crack Spiral, from 10 to 12 o'clock, within 8 inches of joint: YES

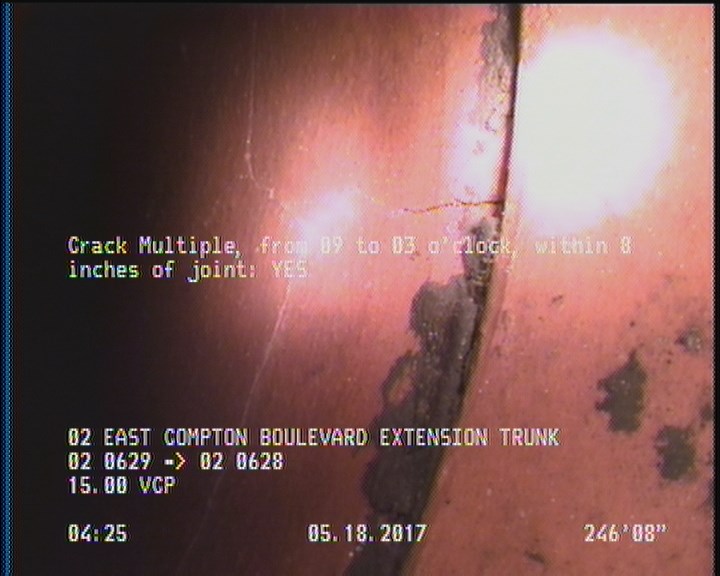

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    246.6 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

All inspections of P03180Work order 618894

Observations (19)

DistanceCodeObservation
172.2TFA—
3.5DAGS—
349.5DAGS—
75TFC—
175.9TFC—
15.1TF—
351.9AMH02 0628
124.4TFC—
256.3TFA—
324.7TFA—
246.6CM—
276TFC—
0AMH02 0629
186.6CS—
228.5TFC—
240.2TFC—
341TFA—
83.8TFA—
23.1TFC—

Properties (5)

additional_info
SC345232
custom_field_two
4
customer
LACSD
datetime
2017-05-18T04:12:13-07:00
sewer_category
Gravity
