Wastewater/Activity/PacpInspection/1.0Sep 15, 2016, 04:48 AM
- Date
- 09/14/2016
- W/O
- 588247
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00028
- PipeID
- P11272
- Time
- 9:48 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3583
- Sewer Name
- E JOINT OUTFALL E - UNIT 2
- City
- COMPTON
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- WO_588247_TV01123_AUG2016
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 48 in.
- Width
- 48 in.
- Upstream MH
- E 0045
- Downstream MH
- E 0044
- Dir. of Survey
- Downstream
- Length Surveyed
- 417.2 ft.
- Total Length
- 417.2 ft.
- Structural Index
- 3
- Structural Quick
- 513B
- Structural Rating
- 50
- O&M Index
- 3
- O&M Quick
- 3O00
- O&M Rating
- 243
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 293
Observation photos (5)

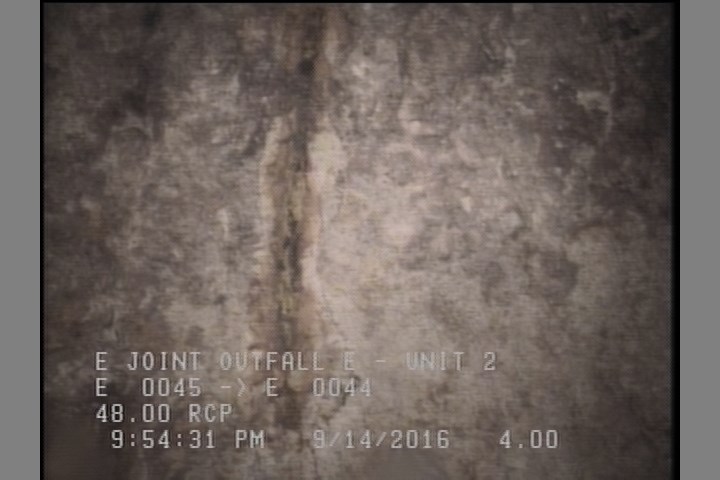

3.9 ft. - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start
4 ft. - Surface Reinforcement Visible, at 12 o'clock, within 8 inches of joint: YES

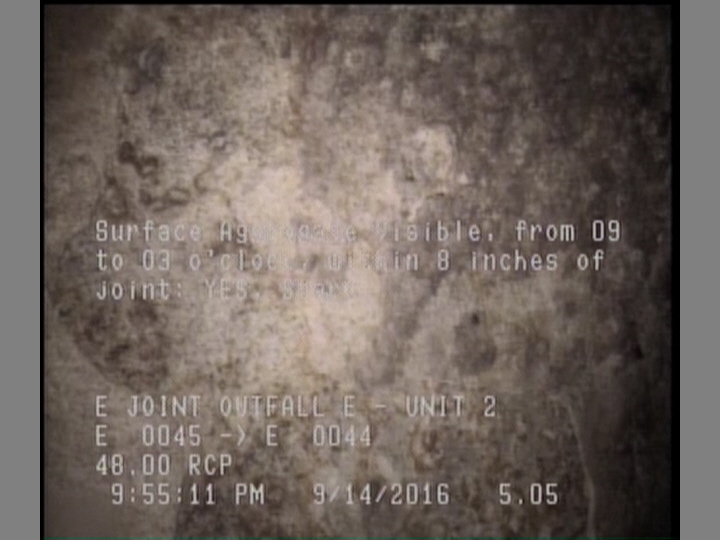

5.1 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

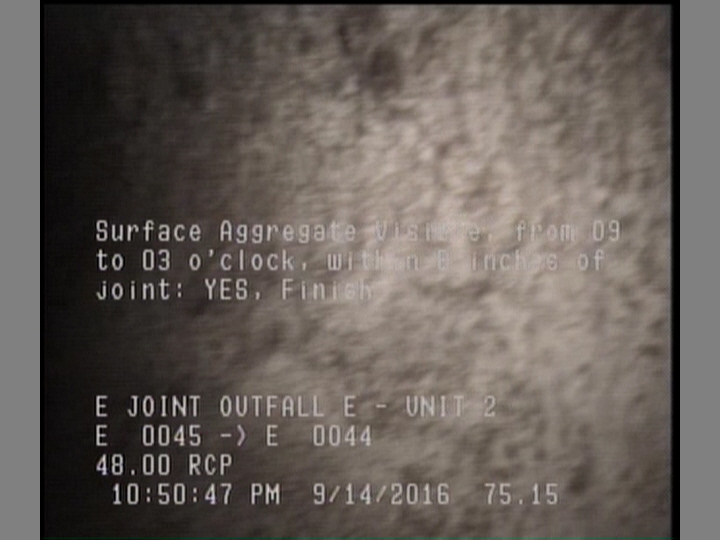

75.2 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish

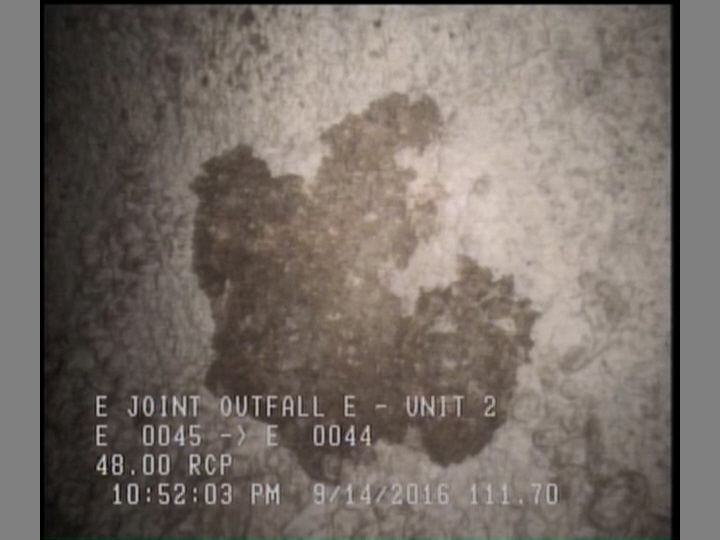

111.7 ft. - Surface Aggregate Visible, at 12 o'clock, within 8 inches of joint: NO
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 5.1 | SAV | — |
| 75.2 | SAV | — |
| 4 | SRV | — |
| 411.3 | DSZ | — |
| 417.2 | AMH | E 0044 |
| 0 | AMH | E 0045 |
| 3.9 | DSZ | — |
| 111.7 | SAV | — |
| 0 | MWL | — |
| 0.1 | MWM | — |
Properties (5)
- additional_info
- SC306177
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-09-14T21:48:27-07:00
- sewer_category
- Gravity
