Wastewater/Activity/PacpInspection/1.0Jul 24, 2017, 07:49 AM
05 1881_05 1880_7242017_011109.mp4
- Date
- 07/24/2017
- W/O
- 0652917
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00507
- PipeID
- P07106
- Time
- 12:49 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0600
- Sewer Name
- 05 NARBONNE AVENUE TRUNK, SECTION 1(WEST)
- City
- SAN PREDO
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 35
- Purpose
- Maintenance Related
- Project
- 20170724MDM_NARBONNE_AVENUE_TRUNK_SECTION_1
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Upstream MH
- 05 1881
- Downstream MH
- 05 1880
- Dir. of Survey
- Downstream
- Length Surveyed
- 124.7 ft.
- Total Length
- 124.7 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (3)

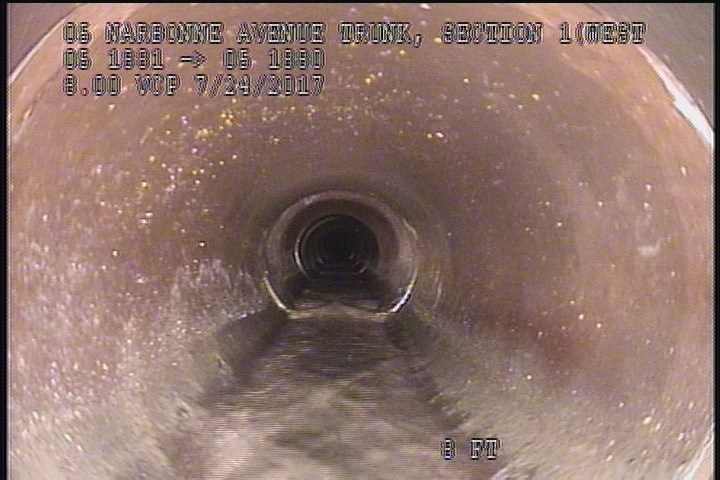

8 ft. - General Observation - 8" VCP

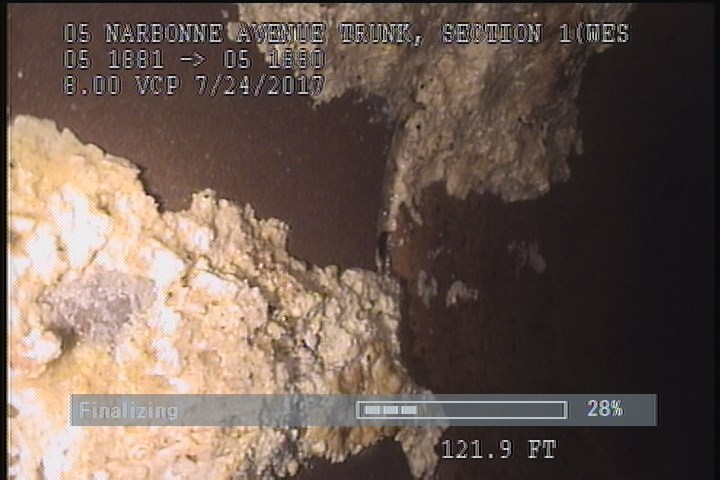

121.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: YES

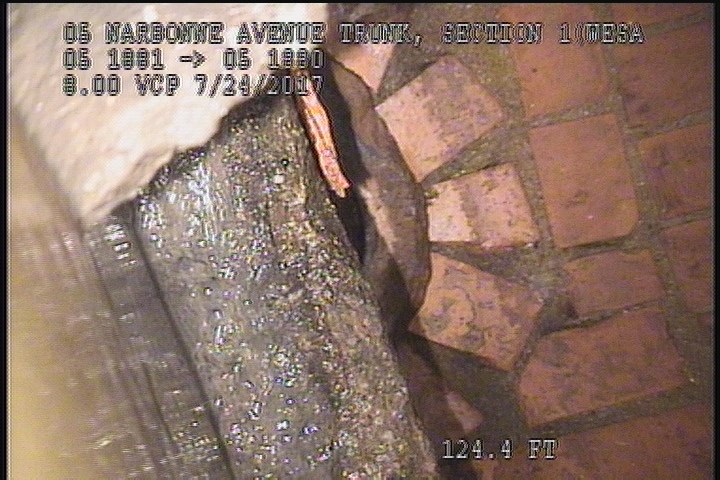

124.4 ft. - General Observation - Conn. @ Mh, 12 O' Clock. BLOCKED
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 15.5 | TF | Open |
| 124.7 | AMH | 1:10AM |
| 124.4 | MGO | Conn. @ Mh, 9 O' Clock. Active |
| 63.1 | TFC | Capped |
| 124.4 | MGO | Conn. @ Mh, 12 O' Clock. BLOCKED |
| 87 | TF | Active |
| 0 | MWL | — |
| 8 | MGO | 8" VCP |
| 0 | AMH | 12:50AM |
| 121.5 | DAGS | — |
Properties (3)
- additional_info
- OBSTRUCTION INSPECTION
- customer
- LACSD
- datetime
- 2017-07-24T00:49:47-07:00
