Wastewater/Activity/PacpInspection/1.0Jul 25, 2017, 08:18 AM
A 0531_A 0530_7252017_020253.mp4
- Date
- 07/25/2017
- W/O
- 0651133
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00315
- PipeID
- P07767
- Time
- 1:18 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0602
- Sewer Name
- A JOA-1A DISTRICT 5 INTERCEPTOR
- City
- GARDENA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 20
- Purpose
- Routine Assessment
- Project
- 20170724MDM_JOA_1A_DISTRICT_5_INTERCEPTOR
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 54 in.
- Upstream MH
- A 0531
- Downstream MH
- A 0530
- Dir. of Survey
- Downstream
- Length Surveyed
- 5 ft.
- Total Length
- 5 ft.
- Structural Index
- 3
- Structural Quick
- 3221
- Structural Rating
- 8
- O&M Index
- 5
- O&M Quick
- 5100
- O&M Rating
- 5
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 13
Observation photos (4)
2 ft. - Lining Failure Detached, from 09 to 03 o'clock, within 8 inches of joint: YES - 30% EPOXY COATING REMAINING

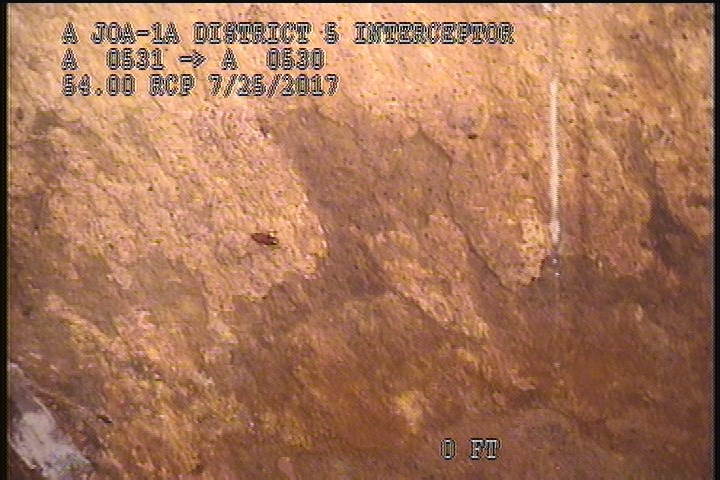

3 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES - BLISTERING PEELING CONCRETE

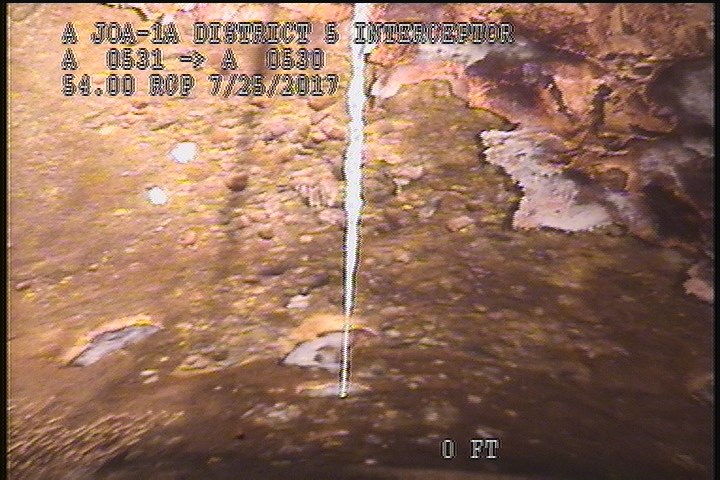

4 ft. - Surface Aggregate Projecting, from 10 to 02 o'clock, within 8 inches of joint: YES - SEVERE AGG

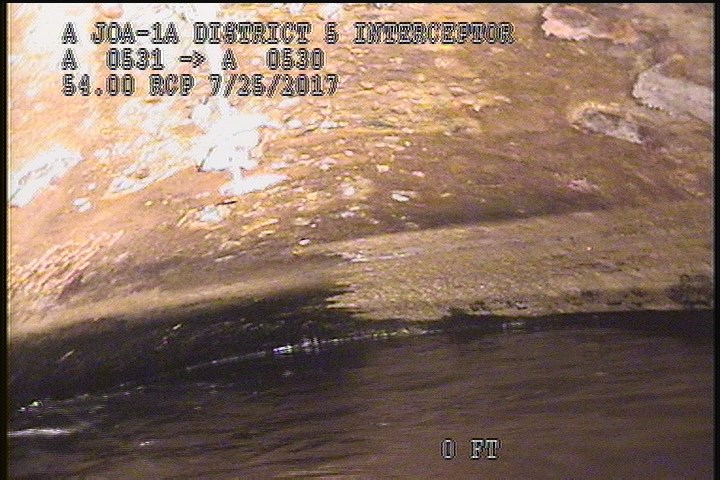

5 ft. - Survey Abandoned - DOWNLEG UPSTREAM SIPHON
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 2:10AM |
| 4 | SAP | SEVERE AGG |
| 0 | MWL | — |
| 2 | LFD | 30% EPOXY COATING REMAINING |
| 5 | MSA | DOWNLEG UPSTREAM SIPHON |
| 0 | MWM | — |
| 3 | SSS | BLISTERING PEELING CONCRETE |
Properties (5)
- additional_info
- DOWNLEG UPSTREAM SIPHON NORTH-EAST
- custom_field_three
- SEVERE PROJECTING AGG-30% COATING REMAINING
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-07-25T01:18:58-07:00
