Wastewater/Activity/PacpInspection/1.0May 8, 2017, 09:18 AM
H 0144_H 0143_08052017_021839.mp4
- Date
- 05/08/2017
- W/O
- 630340
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00166
- PipeID
- P10596
- Time
- 2:18 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4446
- Sewer Name
- H JOINT OUTFALL H - UNIT 1G
- City
- VERNON
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- WO_630340_TV23003_APR2017
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 42 in.
- Width
- 42 in.
- Upstream MH
- H 0144
- Downstream MH
- H 0143
- Dir. of Survey
- Downstream
- Length Surveyed
- 487.7 ft.
- Total Length
- 487.7 ft.
- Structural Index
- 3
- Structural Quick
- 3R00
- Structural Rating
- 291
- O&M Index
- 2
- O&M Quick
- 2T00
- O&M Rating
- 206
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 497
Observation photos (2)

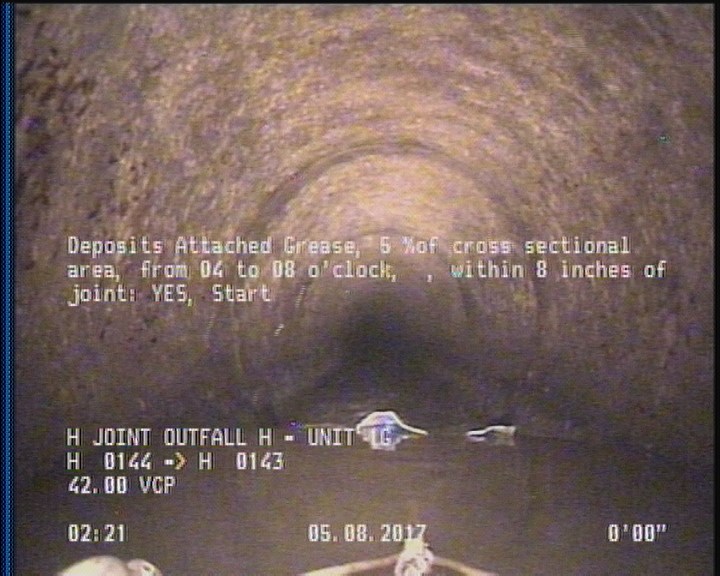

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

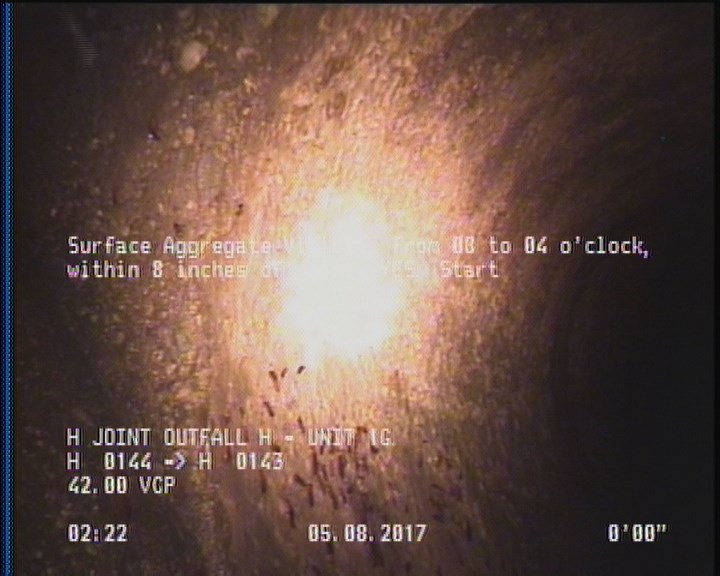

2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 487.7 | MGO | COCKROACHES IN MANHOLE |
| 0 | MWL | — |
| 0 | AMH | H 0144 |
| 375.6 | TBC | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 432 | TBC | — |
| 319.3 | TBC | — |
| 484.6 | DAGS | — |
| 262.4 | TBC | — |
| 487.7 | AMH | H 0143 |
| 484.6 | SAV | — |
| 2 | DAGS | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 205.7 | TBC | — |
| 2 | SAV | — |
| 0 | MWM | — |
| 92.9 | TBC | — |
Properties (5)
- additional_info
- SC345219
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-05-08T02:18:13-07:00
- sewer_category
- Gravity
