Wastewater/Activity/PacpInspection/1.0May 5, 2017, 09:53 AM
H 1131_H 0145_05052017_025248.mp4
- Date
- 05/05/2017
- W/O
- 630340
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00166
- PipeID
- P20586
- Time
- 2:53 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4445
- Sewer Name
- H JOINT OUTFALL H - UNIT 1G
- City
- VERNON
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- WO_630340_TV23003_APR2017
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 42 in.
- Width
- 42 in.
- Upstream MH
- H 1131
- Downstream MH
- H 0145
- Dir. of Survey
- Downstream
- Length Surveyed
- 359.4 ft.
- Total Length
- 359.4 ft.
- Structural Index
- 3
- Structural Quick
- 3E00
- Structural Rating
- 87
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 87
Observation photos (2)

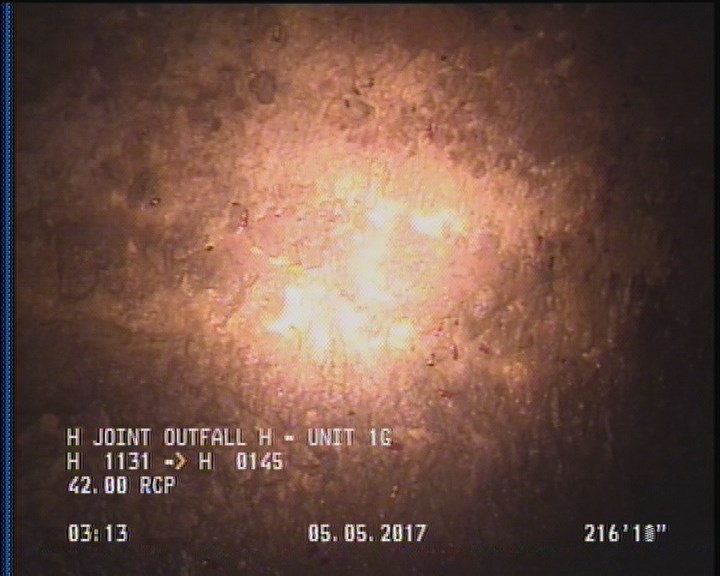

215.9 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

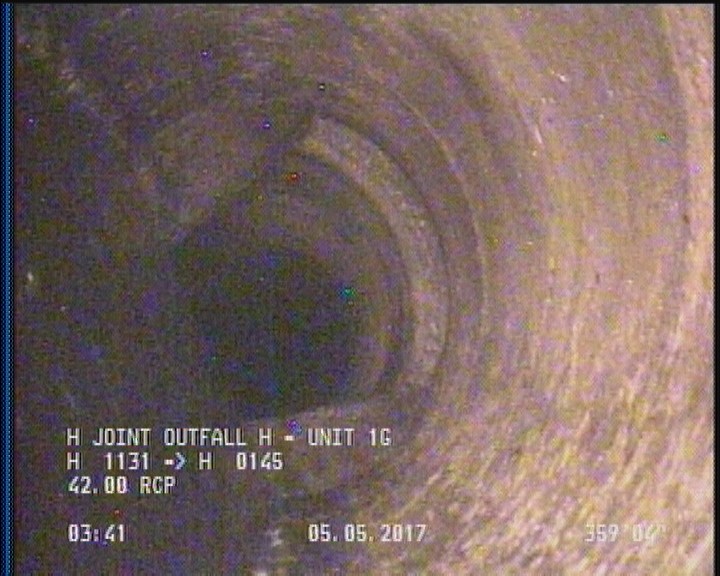

359.4 ft. - Downstream Manhole, Survey Ends - H 0145, CONDITIONS OF PIPE DO NOT CHANGE.
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 359.4 | SAV | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 215.9 | SAV | — |
| 0 | AMH | H 1131 |
| 359.4 | AMH | H 0145, CONDITIONS OF PIPE DO NOT CHANGE. |
Properties (6)
- additional_info
- SC345218
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-05-05T02:53:41-07:00
- sewer_category
- Gravity
- year_laid
- 36998
