Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 19, 2017, 08:51 AM

  • 18 1014_18 1013 _19042017_015138.mp4

Date
04/19/2017
W/O
630156
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00677
PipeID
P14868
Time
1:51 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4268
Sewer Name
18 LA HABRA HEIGHTS TRUNK, SECTION 1
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
22
Purpose
Routine Assessment
Project
WO_630156_TV18008_APR2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
18 1014
Downstream MH
18 1013
Dir. of Survey
Downstream
Length Surveyed
292 ft.
Total Length
292 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2111
O&M Rating
3
Overall Index
2
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole 18 1014 to 18 1013
MH: 18 1014MH: 18 1013downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - LINER0 ft. MGO - General Observation - LATERAL AT MH 3 OCLOCK ACTIVE0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 10140 ft. VC - Vermin Cockroach2.4 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2.4 ft. MGO - General Observation - MAGNESIUM COATING START48.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4"143.1 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"171.4 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"227.7 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"252.5 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"288.1 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish288.1 ft. MGO - General Observation - MAGNESIUM COATING END292 ft. AMH - Downstream Manhole, Survey Ends - 18 1013

Observation photos (1)

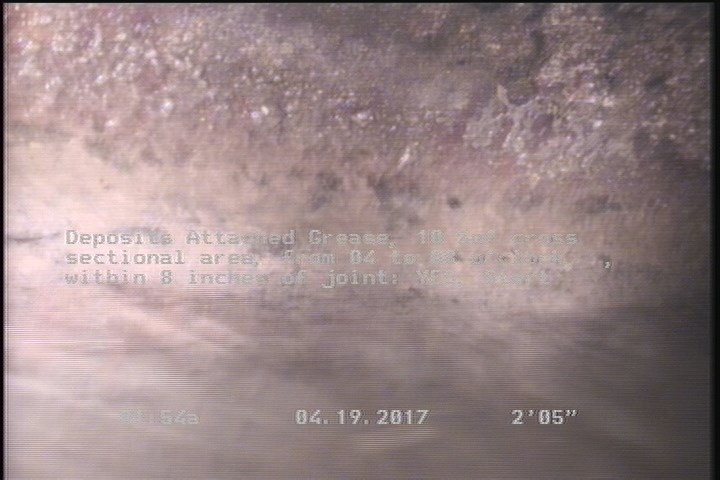

  • Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.4 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P14868Work order 630156

Observations (16)

DistanceCodeObservation
288.1DAGS—
2.4DAGS—
0MWL—
143.1TFA—
0MGOLINER
292AMH18 1013
171.4TFA—
252.5TFA—
0MGOLATERAL AT MH 3 OCLOCK ACTIVE
227.7TFA—
0MWM—
288.1MGOMAGNESIUM COATING END
0AMH18 1014
48.7TF—
2.4MGOMAGNESIUM COATING START
0VC—

Properties (6)

additional_info
SC306848
custom_field_two
4
customer
LACSD
datetime
2017-04-19T01:51:25-07:00
sewer_category
Gravity
year_laid
38344
