Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 9, 2017, 07:10 AM

  • 01 0846_01 0845_09052017_001056.mp4

Date
05/09/2017
W/O
630371
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00228
PipeID
P01675
Time
12:10 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4447
Sewer Name
01 WRIGHT ROAD TRUNK
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
21
Purpose
Routine Assessment
Project
WO_630371_TV01261_APR2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
39 in.
Width
39 in.
Upstream MH
01 0846
Downstream MH
01 0845
Dir. of Survey
Downstream
Length Surveyed
323.3 ft.
Total Length
323.3 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
412W
O&M Rating
244
Overall Index
2
Overall Quick
—
Overall Rating
244
Pipe schematic from manhole 01 0846 to 01 0845
MH: 01 0846MH: 01 0845downstream0 ft. AMH - Upstream Manhole, Survey Begins - 01 08460 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MWL - Water Level, 30 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start43.1 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start323.3 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Finish323.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish323.3 ft. AMH - Downstream Manhole, Survey Ends - 01 0845

Observation photos (2)

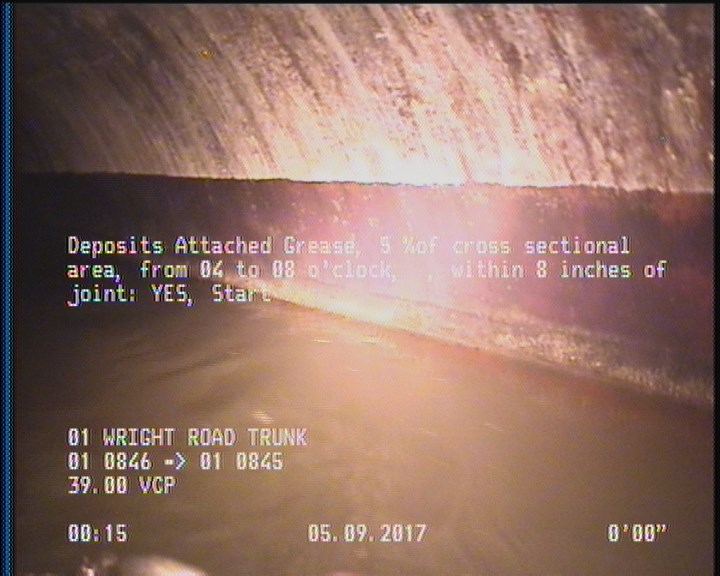

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

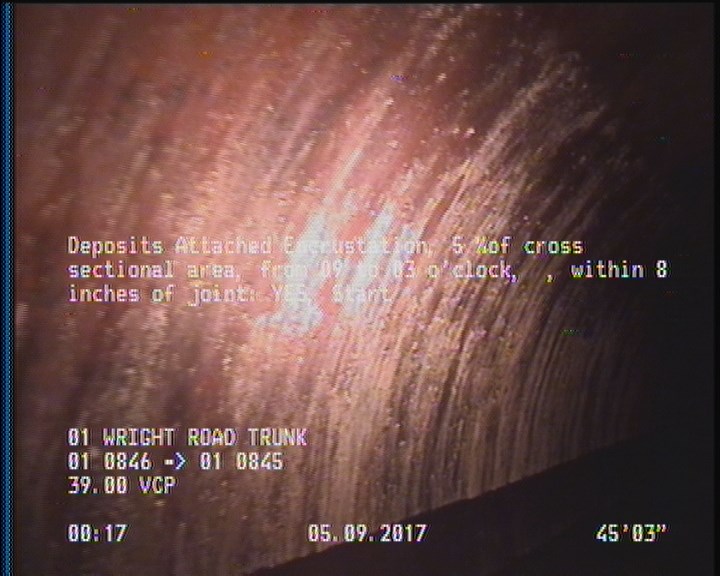

  • Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start

    43.1 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start

All inspections of P01675Work order 630371

Observations (8)

DistanceCodeObservation
0AMH01 0846
2DAGS—
323.3DAE—
0MWM—
323.3DAGS—
43.1DAE—
323.3AMH01 0845
0MWL—

Properties (5)

additional_info
SC345220
custom_field_two
4
customer
LACSD
datetime
2017-05-09T00:10:23-07:00
sewer_category
Gravity
