Wastewater/Activity/PacpInspection/1.0May 9, 2017, 05:04 AM
01 0845_01 0844_08052017_220906.mp4
- Date
- 05/08/2017
- W/O
- 630371
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00228
- PipeID
- P01674
- Time
- 10:04 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4447
- Sewer Name
- 01 WRIGHT ROAD TRUNK
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_630371_TV01261_APR2017
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 39 in.
- Width
- 39 in.
- Upstream MH
- 01 0845
- Downstream MH
- 01 0844
- Dir. of Survey
- Downstream
- Length Surveyed
- 142.1 ft.
- Total Length
- 142.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2E00
- O&M Rating
- 56
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 56
Observation photos (2)

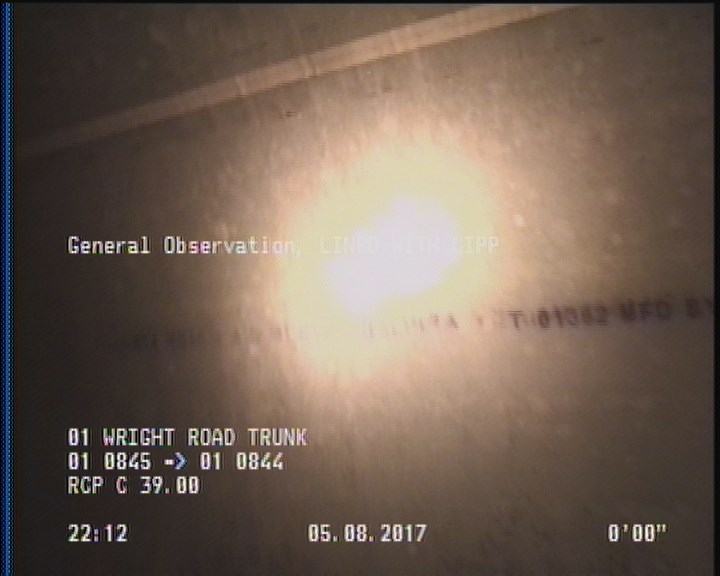

0 ft. - General Observation - LINED WITH CIPP
2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 0 | MWM | — |
| 142.1 | AMH | 01 0844 |
| 0 | MWL | — |
| 142.1 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 140.1 | DAGS | — |
| 0 | AMH | 01 0845 |
| 0 | MGO | LINED WITH CIPP |
Properties (5)
- additional_info
- SC345220
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-05-08T22:04:21-07:00
- sewer_category
- Gravity
