Wastewater/Activity/PacpInspection/1.0May 5, 2017, 07:18 AM
B 1095_B 1094 _05052017_001851.mp4
- Date
- 05/05/2017
- W/O
- 630375
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01124
- PipeID
- P13720
- Time
- 12:18 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4444
- Sewer Name
- B JOINT OUTFALL B - UNIT 6G
- City
- ALHAMBRA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 04
- Purpose
- Routine Assessment
- Project
- WO_630375_TV02344_APR2017
- Material
- NRCP
- Shape
- Circular
- Height
- 36 in.
- Width
- 36 in.
- Upstream MH
- B 1095
- Downstream MH
- B 1094
- Dir. of Survey
- Downstream
- Length Surveyed
- 842.5 ft.
- Total Length
- 842.5 ft.
- Structural Index
- 3
- Structural Quick
- 3a00
- Structural Rating
- 504
- O&M Index
- 2
- O&M Quick
- 412a
- O&M Rating
- 340
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 844
Observation photos (2)

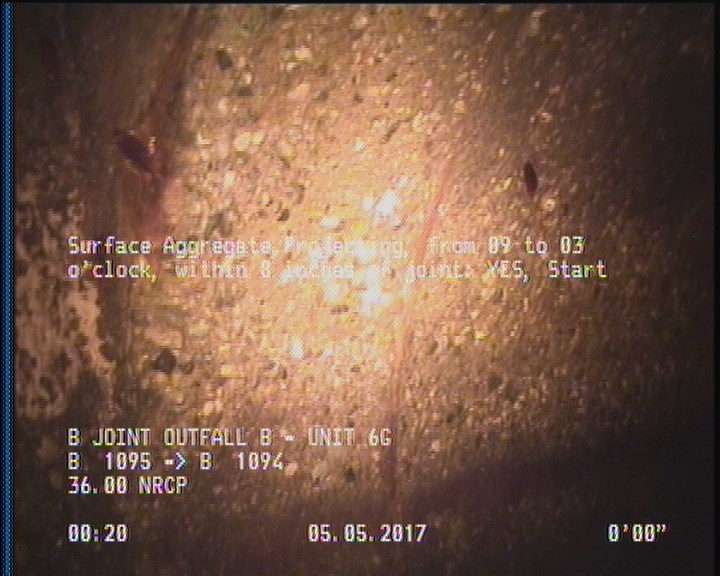

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

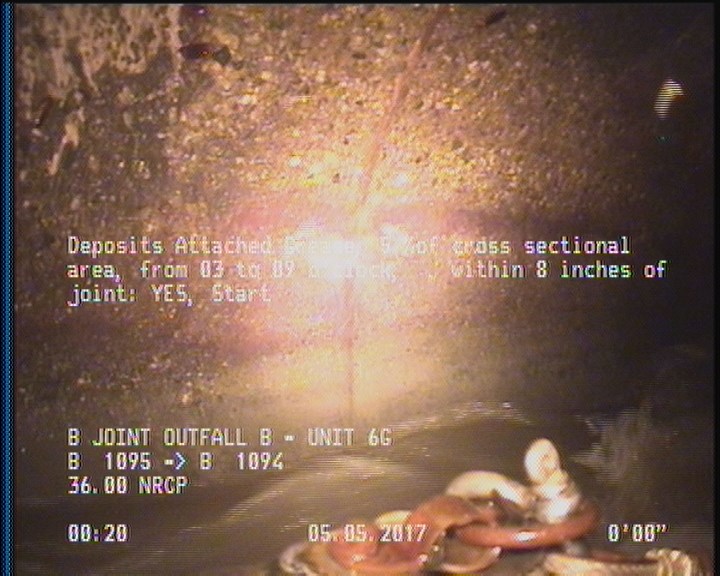

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 842 | MGO | COCKROACHES IN MANHOLE |
| 0 | AMH | B 1095 |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 841.9 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 0 | MWL | — |
| 841.9 | DAGS | — |
| 841.9 | SAP | — |
| 0 | MWM | — |
| 842.5 | AMH | B 1094 |
| 2 | SAP | — |
| 2 | DAGS | — |
| 16.2 | MGO | MAG COATING 75% |
Properties (5)
- additional_info
- SC345217
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-05-05T00:18:32-07:00
- sewer_category
- Gravity
