Wastewater/Activity/PacpInspection/1.0May 5, 2017, 05:08 AM
B 1098_B 1097 _04052017_221046.mp4
- Date
- 05/04/2017
- W/O
- 630375
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01124
- PipeID
- P13723
- Time
- 10:08 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4444
- Sewer Name
- B JOINT OUTFALL B - UNIT 6G
- City
- ALHAMBRA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- WO_630375_TV02344_APR2017
- Material
- NRCP
- Shape
- Circular
- Height
- 36 in.
- Width
- 36 in.
- Upstream MH
- B 1098
- Downstream MH
- B 1097
- Dir. of Survey
- Downstream
- Length Surveyed
- 821.8 ft.
- Total Length
- 821.8 ft.
- Structural Index
- 3
- Structural Quick
- 3`2`
- Structural Rating
- 820
- O&M Index
- 2
- O&M Quick
- 412`
- O&M Rating
- 332
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 1152
Observation photos (3)

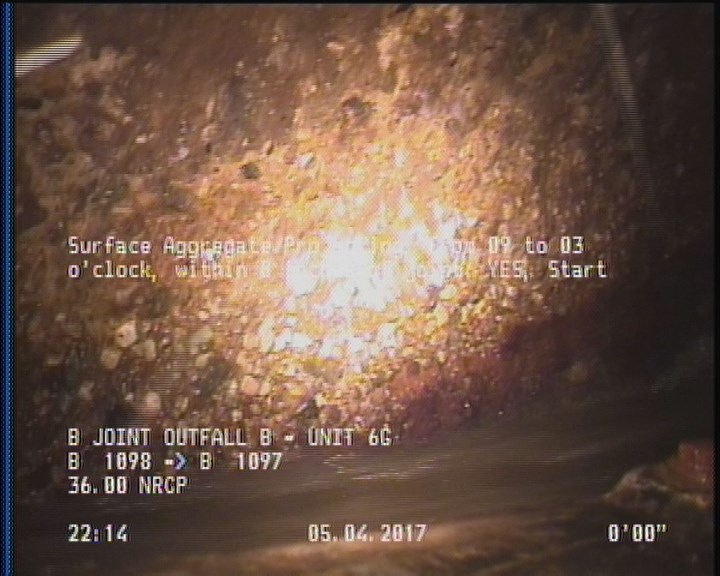

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

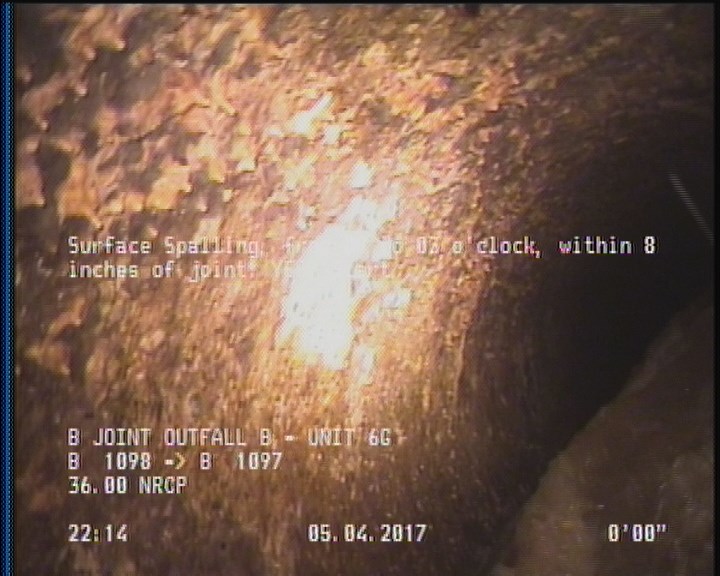

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

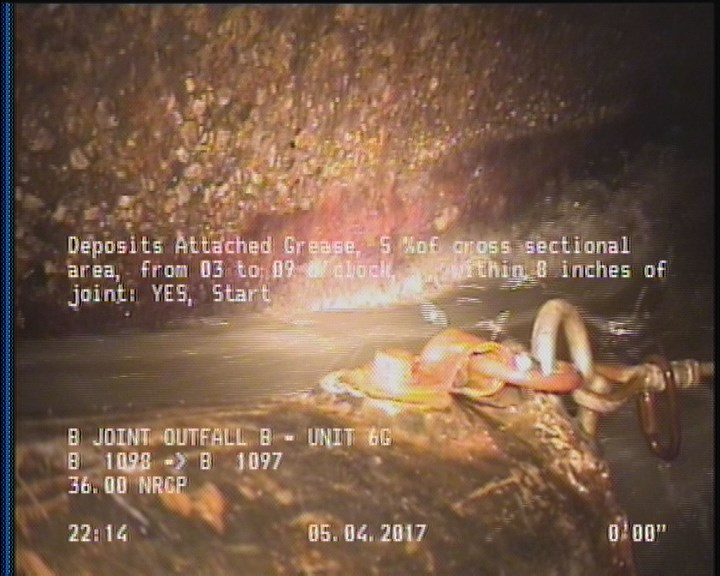

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 820.4 | SAP | — |
| 2 | SAP | — |
| 2 | SSS | — |
| 820.4 | SSS | — |
| 820.4 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 820.4 | DAGS | — |
| 0 | AMH | B 1098 |
| 0 | MWL | — |
| 2 | DAGS | — |
| 821.8 | AMH | B 1097 |
| 0 | MWM | — |
Properties (5)
- additional_info
- SC345217
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-05-04T22:08:29-07:00
- sewer_category
- Gravity
