Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 21, 2017, 09:11 AM

  • A 0571_A 0570 _21042017_021809.mp4

Date
04/21/2017
W/O
630374
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00327
PipeID
P08352
Time
2:11 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4438
Sewer Name
A JOA-1A SOUTH HAWTHORNE-WARFIELD AV EXTENSION
City
LAWNDALE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
19
Purpose
Routine Assessment
Project
WO_630374_TV05327_APR2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
A 0571
Downstream MH
A 0570
Dir. of Survey
Downstream
Length Surveyed
525.6 ft.
Total Length
525.6 ft.
Structural Index
3
Structural Quick
4121
Structural Rating
6
O&M Index
2
O&M Quick
2T00
O&M Rating
208
Overall Index
2
Overall Quick
—
Overall Rating
214
Pipe schematic from manhole A 0571 to A 0570
MH: A 0571MH: A 0570downstream0 ft. AMH - Upstream Manhole, Survey Begins - A 05710 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start38 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: NO39.9 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"44.5 ft. H - Hole, from 12 to 02 o'clock, within 8 inches of joint: YES47.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"75.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"99 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: NO, 6"122.9 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"152 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: NO, 6"159.5 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"193.7 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"193.7 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"195.2 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: NO, 6"245.3 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"248 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: NO, 6"280.5 ft. MGO - General Observation - ABANDONED MH333.2 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"346.7 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: NO, 6"370.4 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"398.9 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: NO, 6"417.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"450.3 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: NO, 6"459.7 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"502.9 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"505.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"523.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish525.6 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK525.6 ft. AMH - Downstream Manhole, Survey Ends - A 0570

Observation photos (4)

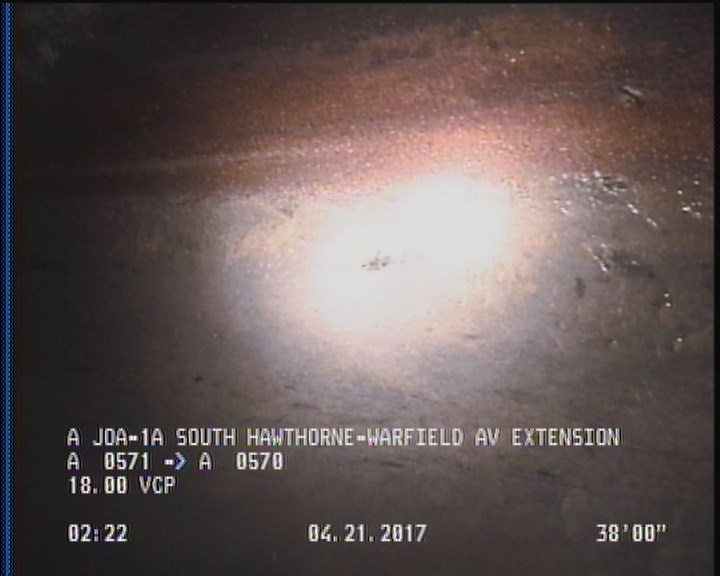

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

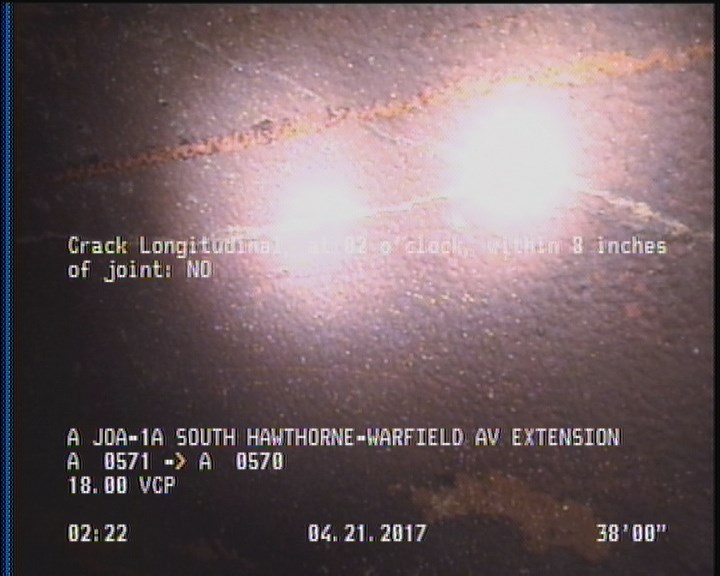

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: NO

    38 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: NO

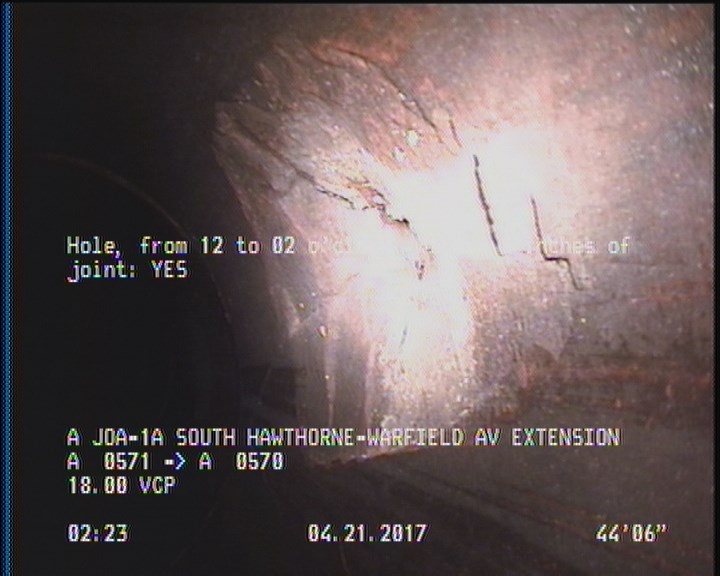

  • Hole, from 12 to 02 o'clock, within 8 inches of joint: YES

    44.5 ft. - Hole, from 12 to 02 o'clock, within 8 inches of joint: YES

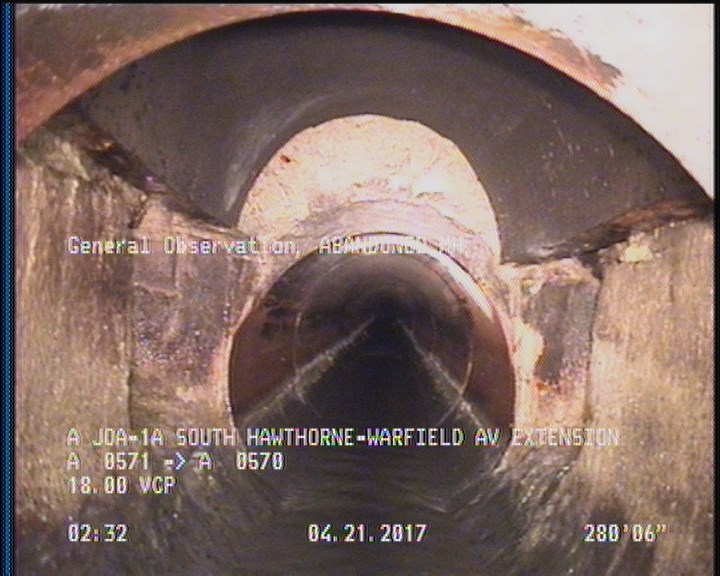

  • General Observation - ABANDONED MH

    280.5 ft. - General Observation - ABANDONED MH

All inspections of P08352Work order 630374

Observations (32)

DistanceCodeObservation
0AMHA 0571
44.5H—
523.8DAGS—
333.2TFC—
0MWM—
0MGOACTIVE CONNECTION AT MH 3 O'CLOCK
525.6MGOACTIVE CONNECTION AT MH 9 O'CLOCK
502.9TFA—
152TFC—
38CL—
398.9TFC—
280.5MGOABANDONED MH
122.9TFC—
0MWL—
193.7TFC—
75.7TFC—
39.9TFC—
346.7TFC—
525.6AMHA 0570
370.4TFC—
195.2TFC—
193.7TFC—
159.5TFC—
47.5TFC—
2DAGS—
99TFC—
505.2TFC—
245.3TFC—
248TFC—
417.3TFC—
459.7TFA—
450.3TFC—

Properties (5)

additional_info
SC345210
custom_field_two
2
customer
LACSD
datetime
2017-04-21T02:11:24-07:00
sewer_category
Gravity
