Wastewater/Activity/PacpInspection/1.0Apr 6, 2017, 09:26 AM
14 0254_14 0253 _06042017_022719.mp4
- Date
- 04/06/2017
- W/O
- 630311
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00577
- PipeID
- P18310
- Time
- 2:26 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4421
- Sewer Name
- 14 TRUNK "A"
- City
- LANCASTER
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 06
- Purpose
- Routine Assessment
- Project
- WO_630311_TV14039_APRIL2017
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 14 0254
- Downstream MH
- 14 0253
- Dir. of Survey
- Downstream
- Length Surveyed
- 383.9 ft.
- Total Length
- 383.9 ft.
- Structural Index
- 3
- Structural Quick
- 5B3N
- Structural Rating
- 459
- O&M Index
- 2
- O&M Quick
- 412N
- O&M Rating
- 156
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 615
Observation photos (4)

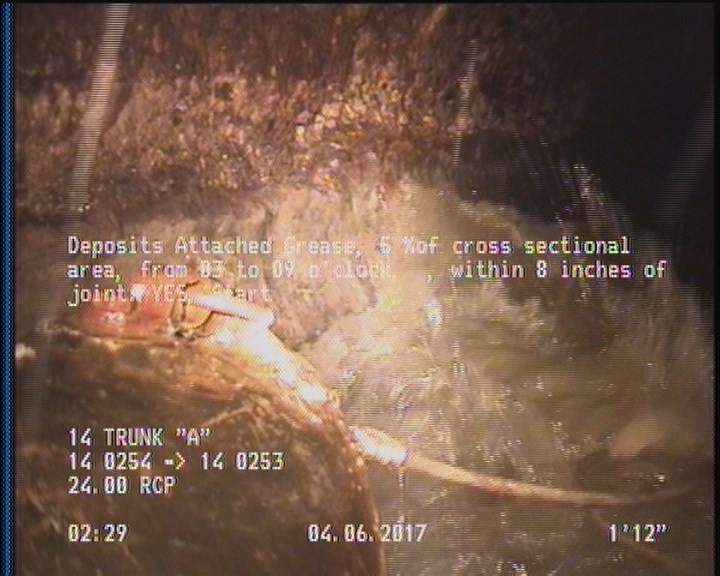

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

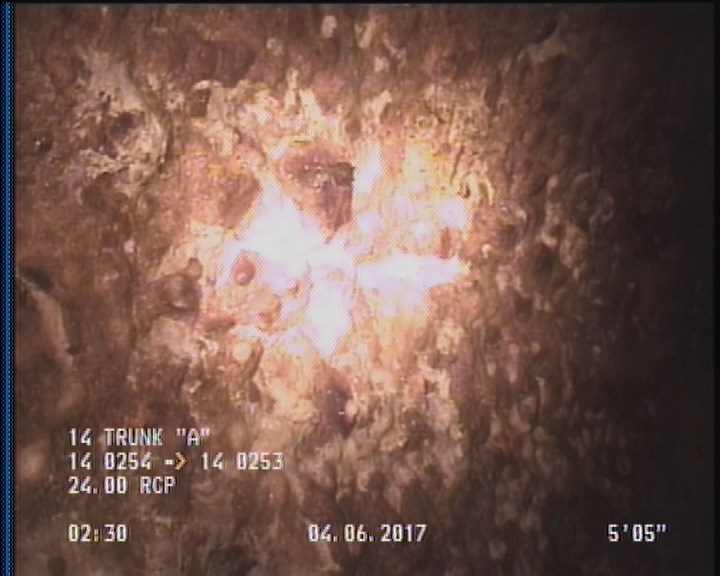

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

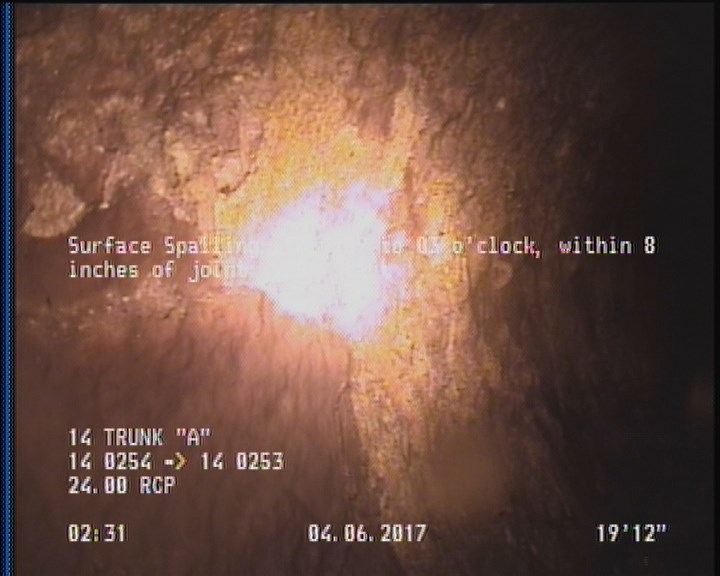

20 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

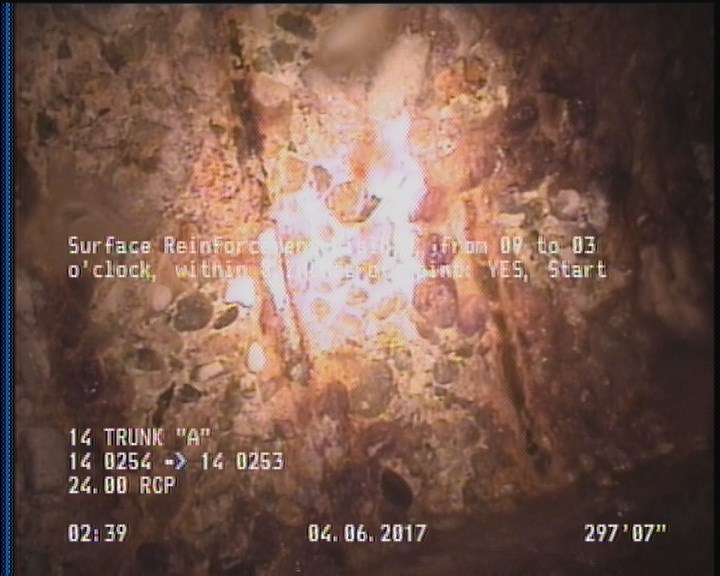

297.6 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 297.6 | SRV | — |
| 383.8 | SSS | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 383.8 | DAGS | — |
| 383.9 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 383.8 | AMH | 14 0253 |
| 0 | AMH | 14 0254 |
| 2 | SAP | — |
| 20 | SSS | — |
| 383.8 | SRV | — |
| 383.8 | SAP | — |
Properties (5)
- additional_info
- SC306990
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-04-06T02:26:52-07:00
- sewer_category
- Gravity
