Wastewater/Activity/PacpInspection/1.0Apr 20, 2017, 07:50 AM
21 0722_21 0516 _20170420_015319.mp4
- Date
- 04/20/2017
- W/O
- 630300
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00768
- PipeID
- P15834
- Time
- 12:50 AM
- Certificate
- U715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- 4508
- Sewer Name
- 21 FIRST STREET DIVERSION TRUNK
- City
- POMONA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 20
- Purpose
- Routine Assessment
- Project
- WO_630300_TV21070_APR2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 21 0722
- Downstream MH
- 21 0516
- Dir. of Survey
- Downstream
- Length Surveyed
- 388 ft.
- Total Length
- 388 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (3)

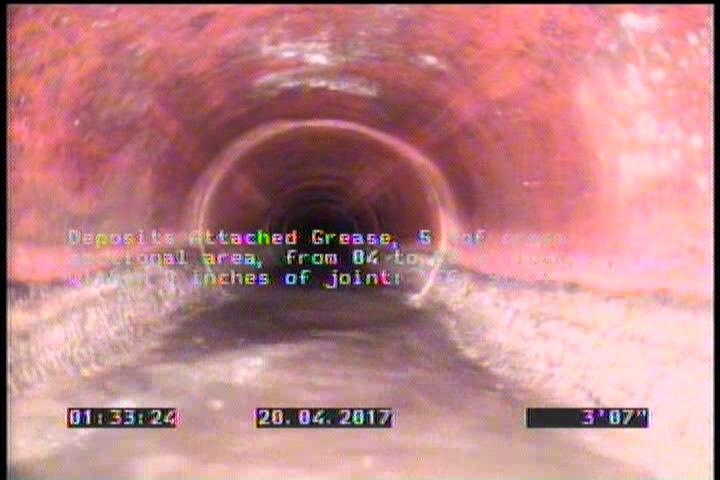

3.6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

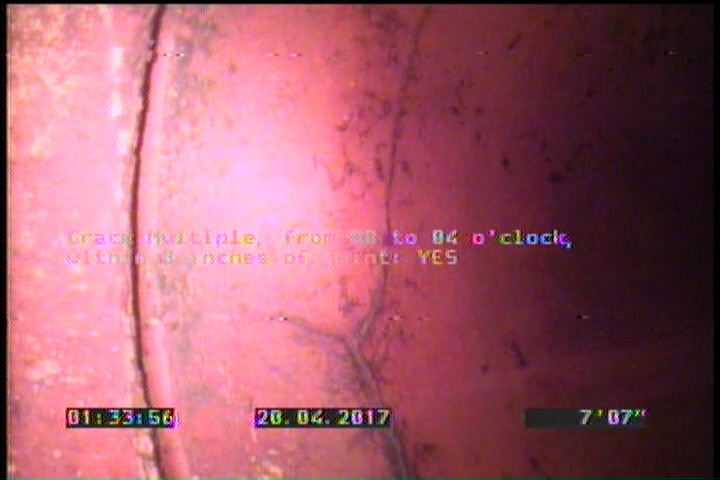

7.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

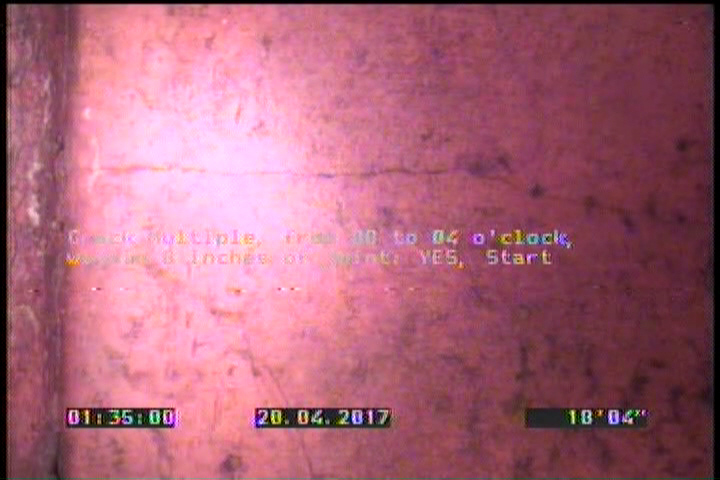

18.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 388 | CM | — |
| 388 | AMH | 21 0516 |
| 18.4 | CM | — |
| 184.9 | TB | — |
| 3.6 | DAGS | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 205.5 | TB | — |
| 278.1 | TB | — |
| 7.6 | CM | — |
| 387.9 | DAGS | — |
| 0 | AMH | 21 0722 |
Properties (5)
- additional_info
- SC340722
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-04-20T00:50:30-07:00
- sewer_category
- Gravity
