Wastewater/Activity/PacpInspection/1.0Apr 20, 2017, 06:32 AM
21 0725_A 0754 _20170420_004534.mp4
- Date
- 04/19/2017
- W/O
- 630300
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00768
- PipeID
- P15850
- Time
- 11:32 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- 4508
- Sewer Name
- 21 FIRST STREET DIVERSION TRUNK
- City
- POMONA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 20
- Purpose
- Routine Assessment
- Project
- WO_630300_TV21070_APR2017
- Material
- Vitrified Clay Pipe
- Shape
- Square
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- A 0754
- Downstream MH
- 21 0725
- Dir. of Survey
- Upstream
- Length Surveyed
- 26.4 ft.
- Total Length
- 26.4 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 4121
- O&M Rating
- 6
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (2)

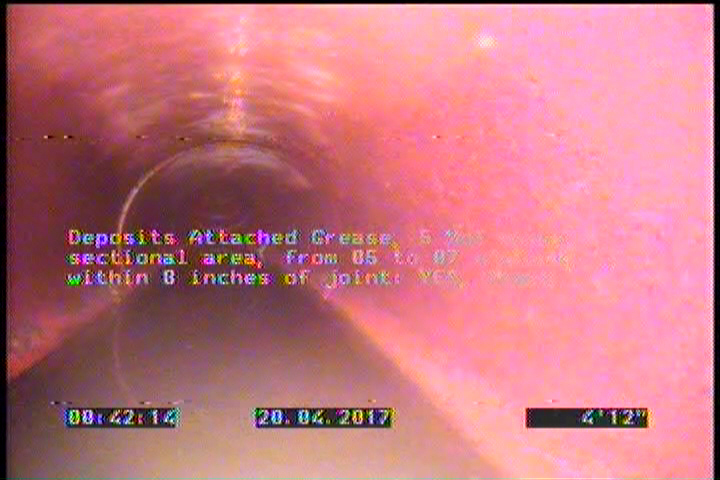

5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

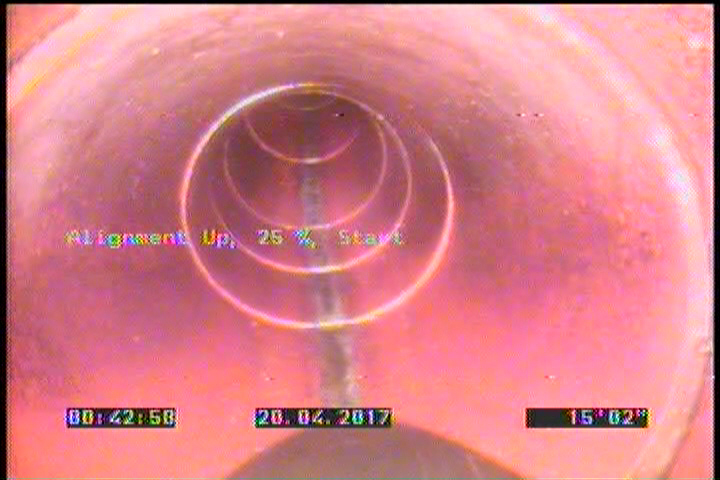

15.2 ft. - Alignment Up, 25 %, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 26.4 | MGO | FLOOD GATE CLOSED |
| 26.3 | DAGS | — |
| 0 | MWM | — |
| 26.4 | LU | — |
| 15.2 | LU | — |
| 0 | AMH | A 0754 |
| 5 | DAGS | — |
| 26.4 | AMH | 21 0725 |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC340722
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-04-19T23:32:10-07:00
- sewer_category
- Gravity
