Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 4, 2017, 06:22 AM
Date
05/03/2017
W/O
630297
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00675
PipeID
P14300
Time
11:22 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4483
Sewer Name
18 FLORENCE AVENUE TRUNK
City
SANTA FE SPRINGS
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
19
Purpose
Routine Assessment
Project
WO_630297_TV18092_APR2017
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
18 0449
Downstream MH
18 0448
Dir. of Survey
Downstream
Length Surveyed
376 ft.
Total Length
376 ft.
Structural Index
3
Structural Quick
3J21
Structural Rating
164
O&M Index
2
O&M Quick
2M00
O&M Rating
144
Overall Index
2
Overall Quick
—
Overall Rating
308
Pipe schematic from manhole 18 0449 to 18 0448
MH: 18 0449MH: 18 0448downstream0 ft. MGO - General Observation - PIPE IS VCP0 ft. AMH - Upstream Manhole, Survey Begins - 18 04490 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area9.9 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start13.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"26.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"44.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"77.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"79.6 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES100 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start101.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"127.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"145.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"148.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"174.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"200.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"226.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"252 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"278 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"294.9 ft. TS - Tap Saddle, at 02 o'clock, -, within 8 inches of joint: NO, 6"298.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"324.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"350.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"369.8 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Finish369.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish376 ft. AMH - Downstream Manhole, Survey Ends - 18 0448

Observation photos (4)

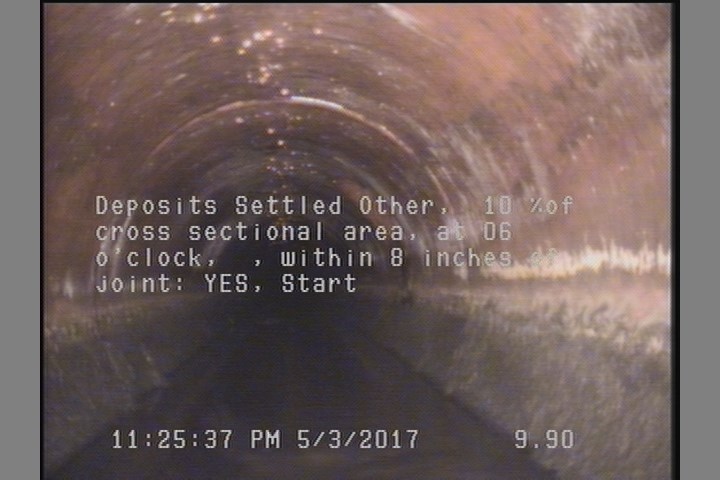

  • Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

    9.9 ft. - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

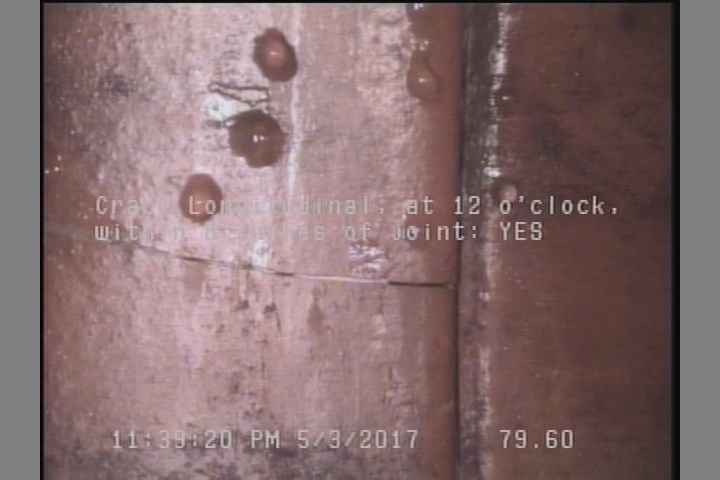

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    79.6 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

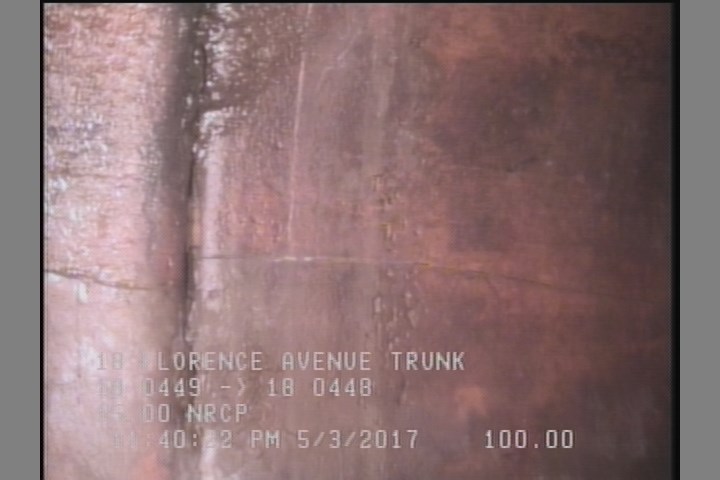

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    100 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

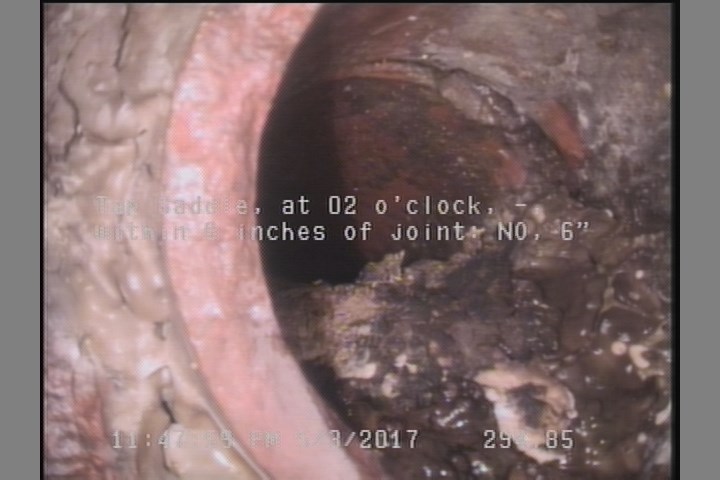

  • Tap Saddle, at 02 o'clock, -, within 8 inches of joint: NO, 6"

    294.9 ft. - Tap Saddle, at 02 o'clock, -, within 8 inches of joint: NO, 6"

All inspections of P14300Work order 630297

Observations (28)

DistanceCodeObservation
79.6CL—
148.4TFC—
200.5TFC—
13.6TFC—
376AMH18 0448
252TFC—
369.8DSZ—
77.5TFC—
0MGOPIPE IS VCP
0AMH18 0449
127.7TF—
0MGOCONNECTION AT MH 3 O'CLOCK
0MWL—
100CM—
294.9TS—
9.9DSZ—
278TFC—
101.8TFC—
226.5TF—
26.1TFC—
145.5TF—
174.6TFC—
298.6TFC—
369.8CM—
350.5TFC—
0MWM—
324.8TFC—
44.4TFC—

Properties (5)

additional_info
SC345193
custom_field_two
3
customer
LACSD
datetime
2017-05-03T23:22:24-07:00
sewer_category
Gravity
