Wastewater/Activity/PacpInspection/1.0Apr 19, 2017, 10:56 AM
18 0999_18 0998 _19042017_035649.mp4
- Date
- 04/19/2017
- W/O
- 630156
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00677
- PipeID
- P14853
- Time
- 3:56 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4268
- Sewer Name
- 18 LA HABRA HEIGHTS TRUNK, SECTION 1
- City
- WHITTIER
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 22
- Purpose
- Routine Assessment
- Project
- WO_630156_TV18008_APR2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 18 0999
- Downstream MH
- 18 0998
- Dir. of Survey
- Downstream
- Length Surveyed
- 294.2 ft.
- Total Length
- 294.2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2111
- O&M Rating
- 3
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (1)

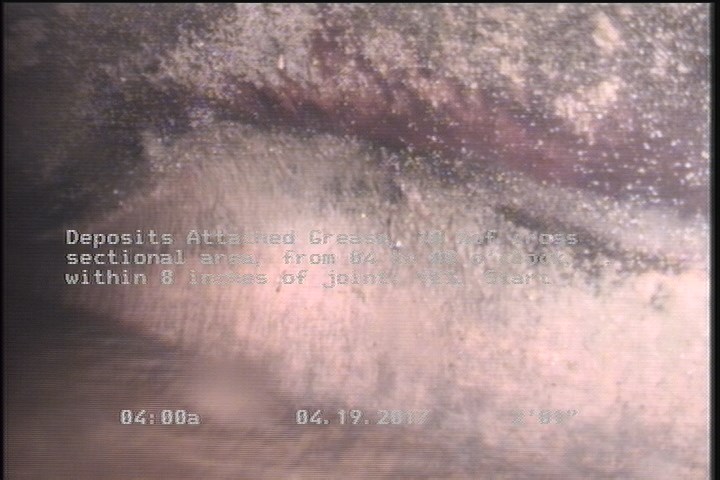

2.1 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 294.2 | AMH | 18 0998 |
| 2.1 | DAGS | — |
| 0 | MGO | LINER |
| 0 | MWM | — |
| 0 | AMH | 18 0999 |
| 293.3 | DAGS | — |
| 121.5 | TFA | — |
| 292.5 | MGO | MAGNESIUM COATING END |
| 0 | MWL | — |
| 2.1 | MGO | MAGNESIUM COATING START |
| 0 | VC | — |
| 0 | MGO | LATERAL AT MH 3 OCLOCK ACTIVE |
Properties (6)
- additional_info
- SC306848
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-04-19T03:56:17-07:00
- sewer_category
- Gravity
- year_laid
- 38344
