Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 12, 2017, 06:04 AM

  • 01 1352_01 1351_11042017_230453.mp4

Date
04/11/2017
W/O
630043
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00197
PipeID
P20018
Time
11:04 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4425
Sewer Name
01 BULLIS ROAD-TEMPLE STREET TRUNK
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
17
Purpose
Routine Assessment
Project
WO_630043_TV01008_APR2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
01 1352
Downstream MH
01 1351
Dir. of Survey
Downstream
Length Surveyed
339.6 ft.
Total Length
339.6 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
412X
O&M Rating
252
Overall Index
2
Overall Quick
—
Overall Rating
252
Pipe schematic from manhole 01 1352 to 01 1351
MH: 01 1352MH: 01 1351downstream0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 13520 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK0 ft. MWM - Water Mark, 50 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start54.3 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - DEBRIS337.3 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish337.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish339.6 ft. AMH - Downstream Manhole, Survey Ends - 01 1351339.6 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK339.6 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (3)

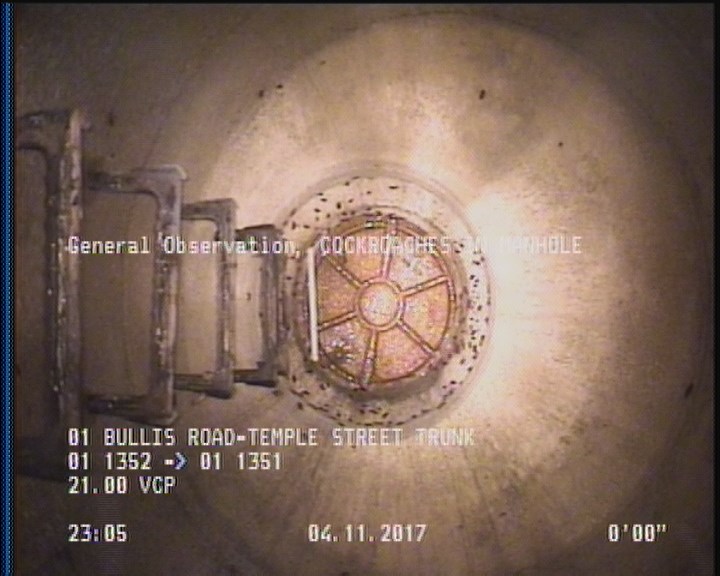

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

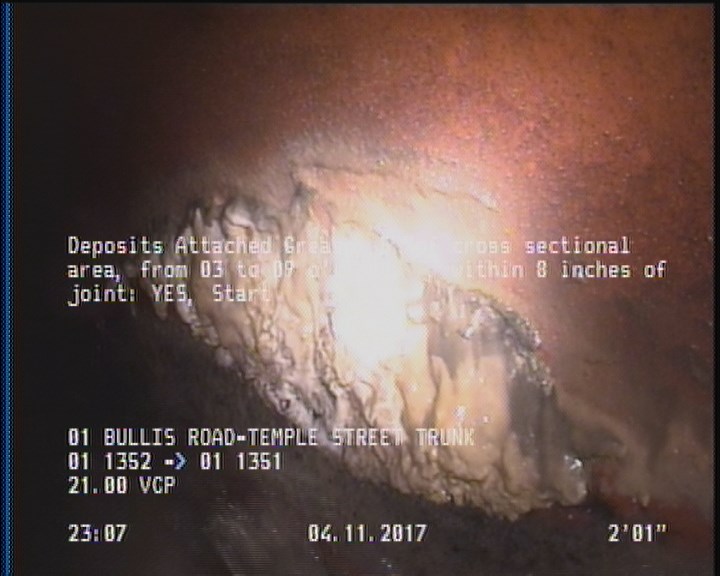

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

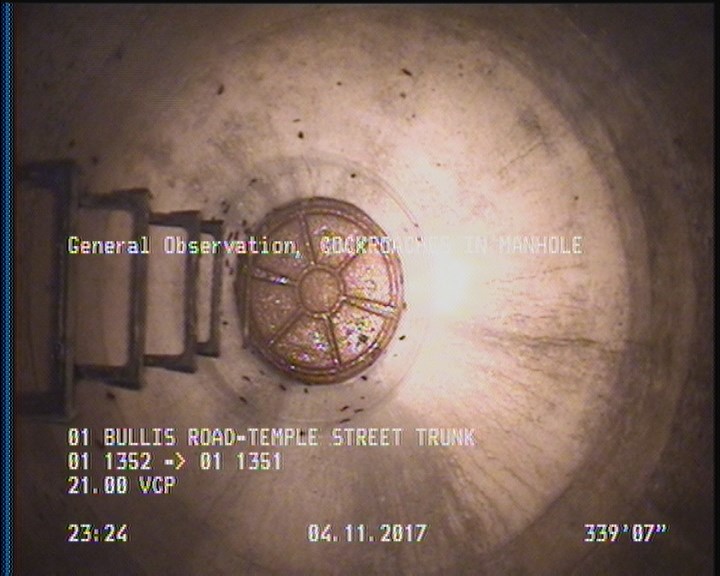

  • General Observation - COCKROACHES IN MANHOLE

    339.6 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P20018Work order 630043

Observations (12)

DistanceCodeObservation
0MWL—
339.6AMH01 1351
0AMH01 1352
339.6MGOACTIVE CONNECTION AT MH 9 O'CLOCK
2DAGS—
339.6MGOCOCKROACHES IN MANHOLE
0MGOCOCKROACHES IN MANHOLE
54.3DSZDEBRIS
0MGOACTIVE CONNECTION AT MH 9 O'CLOCK
0MWM—
337.3DSZ—
337.3DAGS—

Properties (5)

additional_info
SC306994
custom_field_two
4
customer
LACSD
datetime
2017-04-11T23:04:23-07:00
sewer_category
Gravity
