Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 11, 2017, 08:06 AM

  • 01 0791A_01 1368_11042017_010840.mp4

Date
04/11/2017
W/O
630043
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00197
PipeID
P21608
Time
1:06 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4424
Sewer Name
01 BULLIS ROAD-TEMPLE STREET TRUNK
City
LYNWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
17
Purpose
Routine Assessment
Project
WO_630043_TV01008_APR2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
01 0791A
Downstream MH
01 1368
Dir. of Survey
Downstream
Length Surveyed
196.1 ft.
Total Length
196.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
512M
O&M Rating
145
Overall Index
2
Overall Quick
—
Overall Rating
145
Pipe schematic from manhole 01 0791A to 01 1368
MH: 01 0791AMH: 01 1368downstream0 ft. AMH - Upstream Manhole, Survey Begins - 01 0791A0 ft. MWM - Water Mark, 90 %of cross sectional area0 ft. MWL - Water Level, 60 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 01 to 11 o'clock, , within 8 inches of joint: YES, Start17.2 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: NO, 6"38.7 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - DEBRIS79 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"118.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"177.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"194.9 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish194.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 01 to 11 o'clock, , within 8 inches of joint: YES, Finish196.1 ft. AMH - Downstream Manhole, Survey Ends - 01 1368

Observation photos (2)

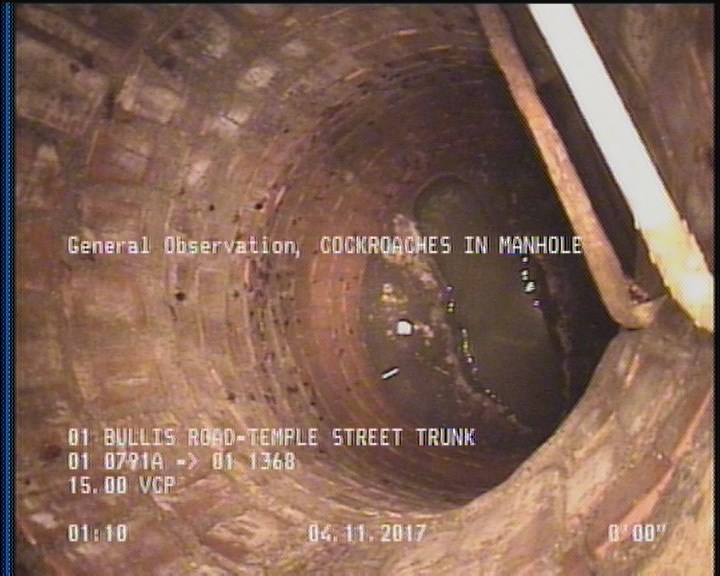

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

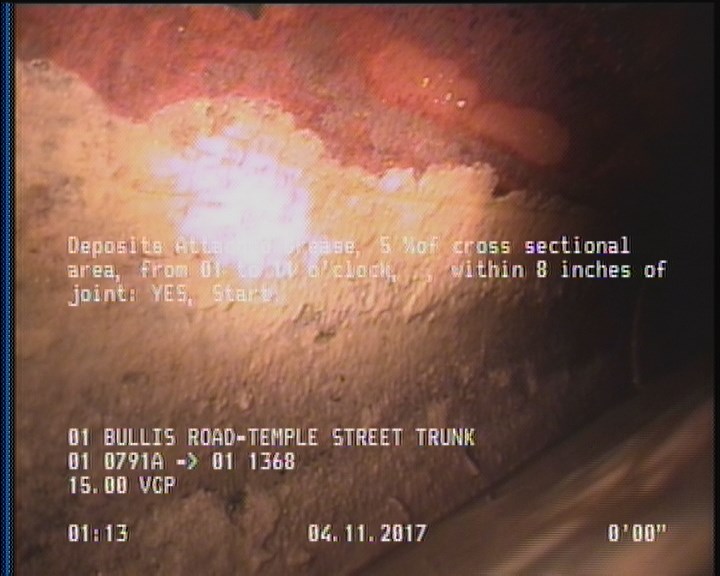

  • Deposits Attached Grease, 5 %of cross sectional area, from 01 to 11 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 01 to 11 o'clock, , within 8 inches of joint: YES, Start

All inspections of P21608Work order 630043

Observations (13)

DistanceCodeObservation
196.1AMH01 1368
17.2TFC—
194.9DSZ—
2DAGS—
0AMH01 0791A
177.9TFC—
0MWM—
79TFA—
0MWL—
0MGOCOCKROACHES IN MANHOLE
38.7DSZDEBRIS
118.8TFC—
194.9DAGS—

Properties (5)

additional_info
SC306993
custom_field_two
4
customer
LACSD
datetime
2017-04-11T01:06:45-07:00
sewer_category
Gravity
