Wastewater/Activity/PacpInspection/1.0Feb 23, 2017, 07:15 AM
03 0346_03 0345 _02222017_231547.mp4
- Date
- 02/22/2017
- W/O
- 625657
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00369
- PipeID
- P04920
- Time
- 11:15 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4251
- Sewer Name
- 03 MARINA TRUNK, SECTION 1A
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 24
- Purpose
- Routine Assessment
- Project
- WO_625657_DISTRICT03_MAR2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 03 0346
- Downstream MH
- 03 0345
- Dir. of Survey
- Downstream
- Length Surveyed
- 282.3 ft.
- Total Length
- 282.3 ft.
- Structural Index
- 3
- Structural Quick
- 3B00
- Structural Rating
- 51
- O&M Index
- 2
- O&M Quick
- 413F
- O&M Rating
- 227
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 278
Observation photos (4)

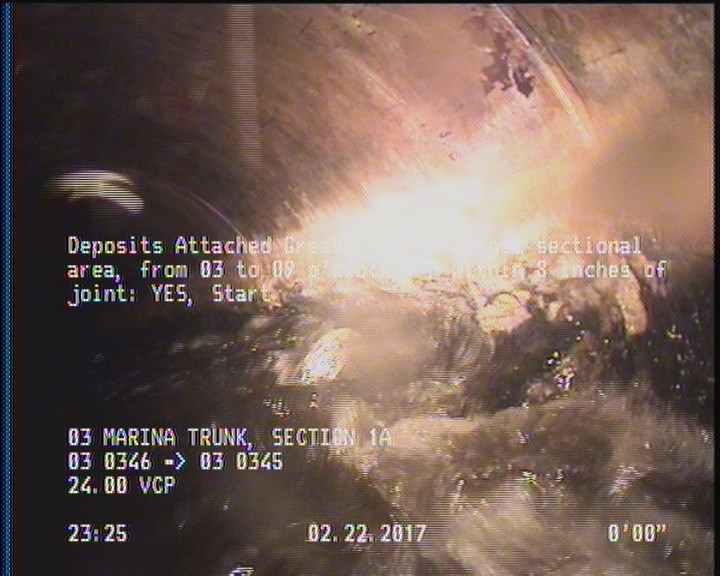

2 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

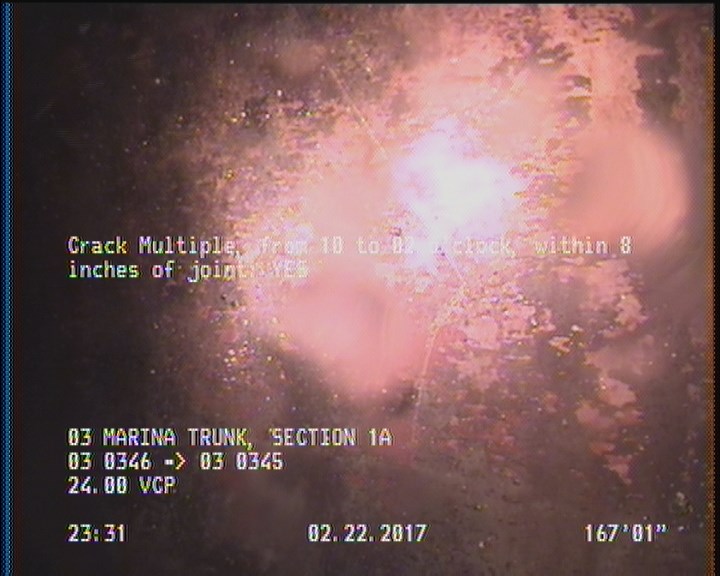

167.1 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

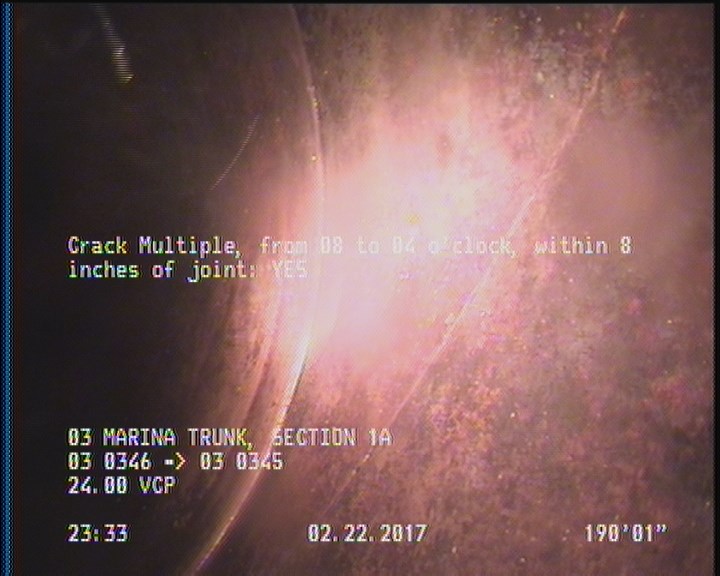

190.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

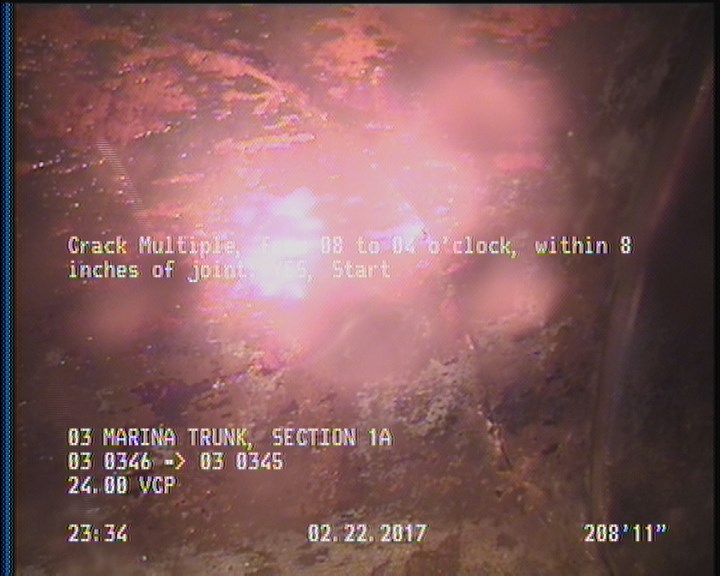

208.9 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 167.1 | CM | — |
| 282.3 | DSZ | — |
| 97.9 | DSZ | DEBRIS |
| 208.9 | CM | — |
| 0 | AMH | 03 0346 |
| 2 | DAGS | — |
| 282.3 | DAGS | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 282.3 | AMH | 03 0345 |
| 282.3 | CM | — |
| 190.1 | CM | — |
Properties (5)
- additional_info
- SC306954
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-02-22T23:15:10-08:00
- sewer_category
- Gravity
