Wastewater/Activity/PacpInspection/1.0Feb 23, 2017, 08:58 AM
03 0345_03 0344 _02232017_010051.mp4
- Date
- 02/23/2017
- W/O
- 625657
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00369
- PipeID
- P04919
- Time
- 12:58 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4251
- Sewer Name
- 03 MARINA TRUNK, SECTION 1A
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 24
- Purpose
- Routine Assessment
- Project
- WO_625657_DISTRICT03_MAR2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 03 0345
- Downstream MH
- 03 0344
- Dir. of Survey
- Downstream
- Length Surveyed
- 128.5 ft.
- Total Length
- 128.5 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 412H
- O&M Rating
- 94
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 96
Observation photos (2)

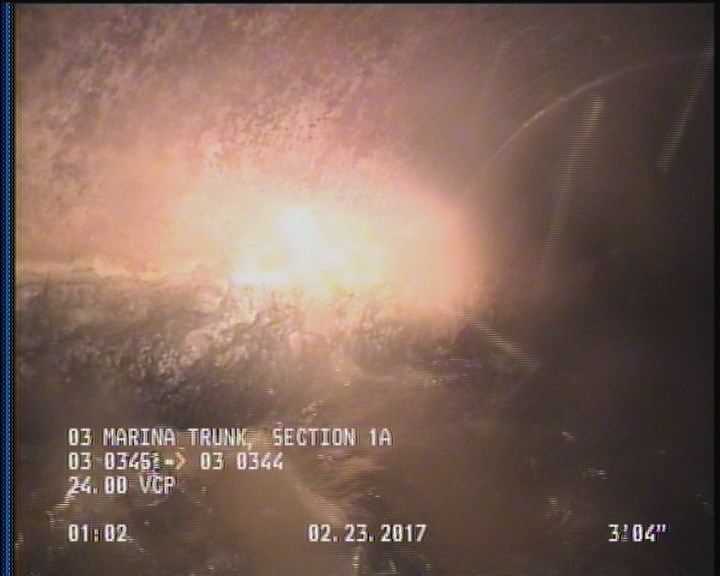

2 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

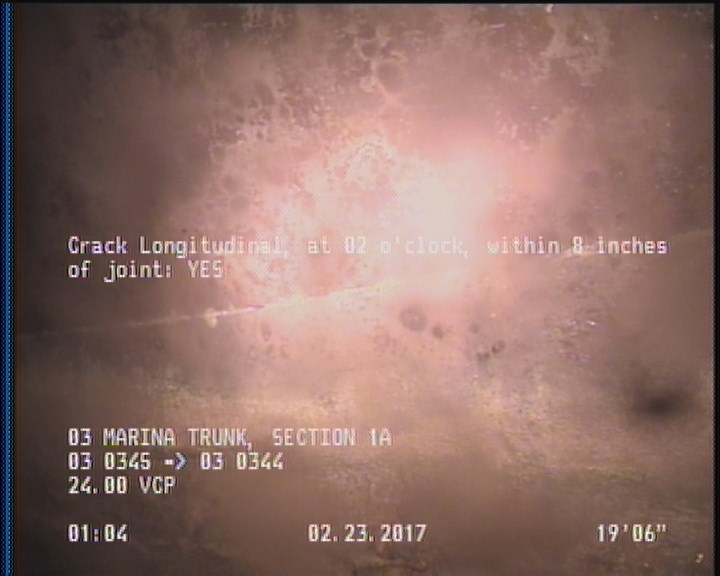

19.5 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 128.5 | AMH | 03 0344 |
| 0 | AMH | 03 0345 |
| 126.1 | DSZ | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 27.3 | DSZ | DEBRIS |
| 2 | DAGS | — |
| 128.5 | DAGS | — |
| 19.5 | CL | — |
Properties (5)
- additional_info
- SC306954
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-02-23T00:58:05-08:00
- sewer_category
- Gravity
