Wastewater/Activity/PacpInspection/1.0May 5, 2017, 05:36 AM
B 1097_B 1096 _04052017_223703.mp4
- Date
- 05/04/2017
- W/O
- 630375
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01124
- PipeID
- P13722
- Time
- 10:36 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4444
- Sewer Name
- B JOINT OUTFALL B - UNIT 6G
- City
- ALHAMBRA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 04
- Purpose
- Routine Assessment
- Project
- WO_630375_TV02344_APR2017
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 36 in.
- Width
- 36 in.
- Upstream MH
- B 1097
- Downstream MH
- B 1096
- Dir. of Survey
- Downstream
- Length Surveyed
- 870.3 ft.
- Total Length
- 870.3 ft.
- Structural Index
- 3
- Structural Quick
- 3b00
- Structural Rating
- 519
- O&M Index
- 2
- O&M Quick
- 412b
- O&M Rating
- 354
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 873
Observation photos (2)

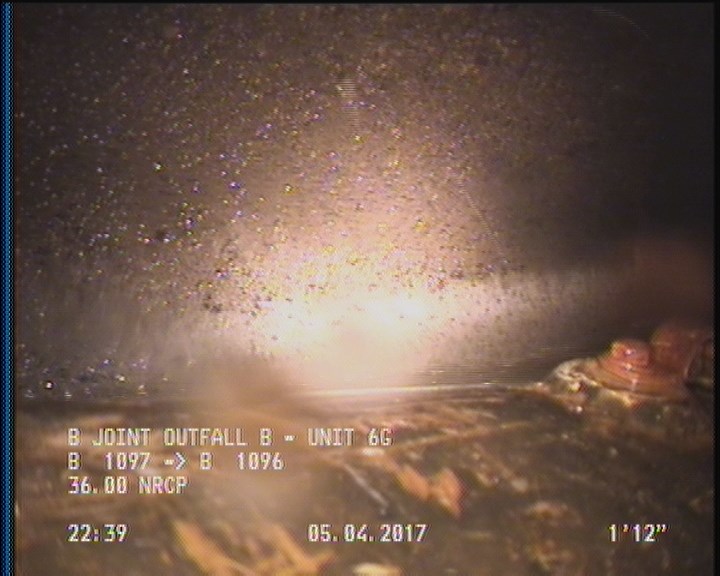

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

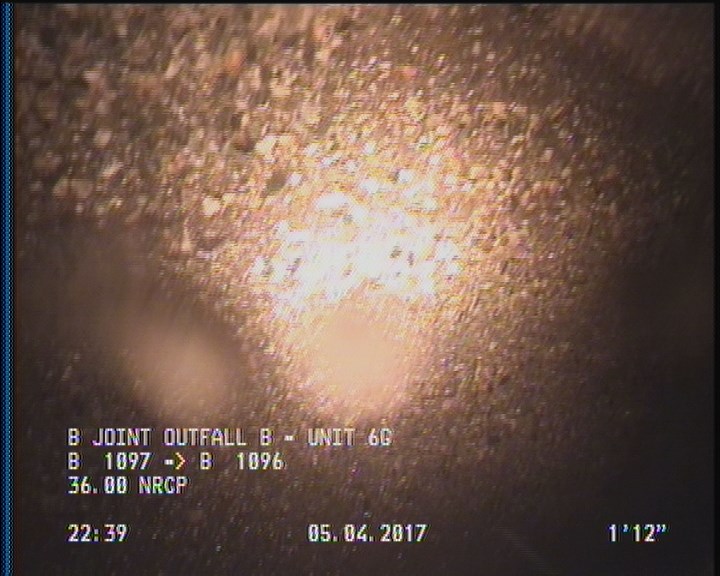

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 869.1 | SAP | — |
| 650.3 | TFC | — |
| 2 | DAGS | — |
| 2 | SAP | — |
| 0 | MWL | — |
| 869.9 | DAGS | — |
| 835.2 | TBA | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 218.4 | TBC | — |
| 20.3 | MGO | MAG COATING 50% |
| 622 | TF | — |
| 739.2 | TFC | — |
| 0 | MWM | — |
| 870.3 | AMH | B 1096 |
| 332 | TBA | — |
| 0 | AMH | B 1097 |
Properties (4)
- additional_info
- SC345217
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-05-04T22:36:45-07:00
