Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 20, 2017, 04:59 AM

  • 18 1070_18 1069 _19042017_220759.mp4

Date
04/19/2017
W/O
630159
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00682
PipeID
P14928
Time
9:59 PM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4269
Sewer Name
18 LA HABRA HEIGHTS TRUNK, SECTION 5
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
22
Purpose
Routine Assessment
Project
WO_630159_TV18020_APR2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
18 1069
Downstream MH
18 1070
Dir. of Survey
Upstream
Length Surveyed
328.7 ft.
Total Length
328.7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole 18 1069 to 18 1070
MH: 18 1069MH: 18 1070upstream0 ft. AMH - Upstream Manhole, Survey Ends - 18 10702.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish2.2 ft. MGO - General Observation - MAGNESIUM COATING END13.6 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"20.4 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"69.9 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"77.7 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"131.6 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"136.7 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"197.3 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"200.6 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"260.1 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"265.7 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"325.9 ft. MGO - General Observation - MAGNESIUM COATING START326.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start328.7 ft. MWM - Water Mark, 10 %of cross sectional area328.7 ft. MWL - Water Level, 10 %of cross sectional area328.7 ft. MGO - General Observation - LINER328.7 ft. AMH - Downstream Manhole, Survey Begins - 18 1069328.7 ft. MGO - General Observation - LATERAL AT MH 3 OCLOCK ACTIVE

Observation photos (1)

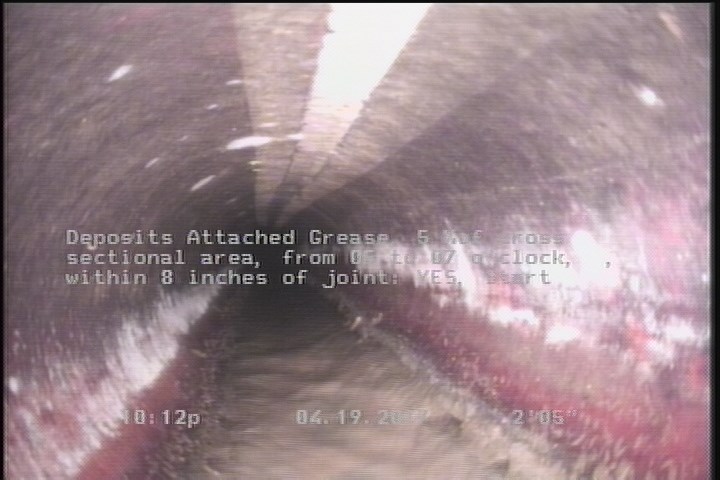

  • Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

    2.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

All inspections of P14928Work order 630159

Observations (20)

DistanceCodeObservation
192TFA—
0MWM—
251TFA—
328.7AMH18 1070
63TFA—
326.5DAGS—
315.1TFA—
2.3DAGS—
68.6TFA—
197.1TFA—
131.4TFA—
0MWL—
326.5MGOMAGNESIUM COATING END
308.3TFA—
128.1TFA—
258.8TFA—
2.8MGOMAGNESIUM COATING START
0MGOLINER
0AMH18 1069
0MGOLATERAL AT MH 3 OCLOCK ACTIVE

Properties (6)

additional_info
SC306849
custom_field_two
4
customer
LACSD
datetime
2017-04-19T21:59:07-07:00
lining
CIPP
year_laid
38344
