Wastewater/Activity/PacpInspection/1.0Apr 20, 2017, 06:17 AM
18 1075_18 1074 _19042017_231750.mp4
- Date
- 04/19/2017
- W/O
- 630159
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00682
- PipeID
- P14934
- Time
- 11:17 PM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4269
- Sewer Name
- 18 LA HABRA HEIGHTS TRUNK, SECTION 5
- City
- WHITTIER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 22
- Purpose
- Routine Assessment
- Project
- WO_630159_TV18020_APR2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 18 1075
- Downstream MH
- 18 1074
- Dir. of Survey
- Downstream
- Length Surveyed
- 298 ft.
- Total Length
- 298 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (1)

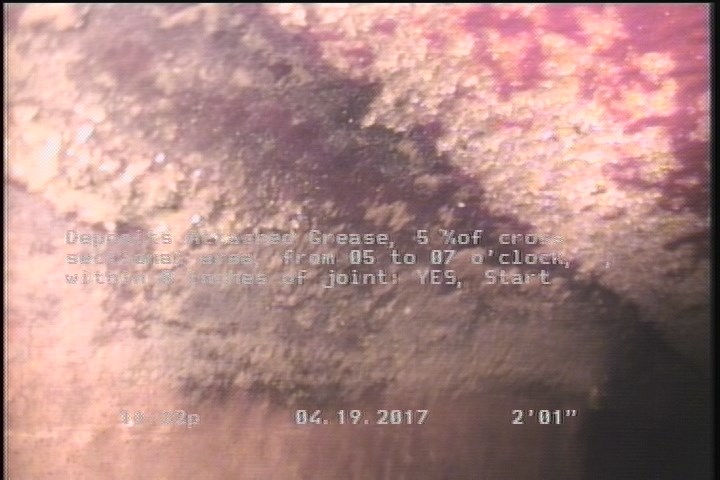

2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 293.1 | DAGS | — |
| 0 | AMH | 18 1075 |
| 298 | MGO | LATERAL AT MH 3 OCLOCK ACTIVE |
| 2.1 | MGO | MAGNESIUM COATING START |
| 0 | MWM | — |
| 0 | MGO | LINER |
| 293.1 | MGO | MAGNESIUM COATING END |
| 0 | MGO | LATERAL AT MH 3 OCLOCK ACTIVE |
| 298 | AMH | 18 1074 |
| 193.1 | TFA | — |
| 2.1 | DAGS | — |
| 0 | MWL | — |
| 75.4 | TFA | — |
Properties (6)
- additional_info
- SC306849
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-04-19T23:17:36-07:00
- lining
- CIPP
- year_laid
- 38344
