Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 16, 2017, 06:42 AM

  • 18 0375_18 0374 _03152017_234416.mp4

Date
03/15/2017
W/O
624575
Weather
Dry
Operator/Surveyor
S.LOPEZ
Sewer ID
Z00690
PipeID
P14209
Time
11:42 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4411
Sewer Name
18 NORTH NORWALK TRUNK
City
NORWALK
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
25
Purpose
Routine Assessment
Project
WO_624575_TV18095_MAR2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
18 0375
Downstream MH
18 0374
Dir. of Survey
Downstream
Length Surveyed
352.7 ft.
Total Length
352.7 ft.
Structural Index
4
Structural Quick
4M00
Structural Rating
272
O&M Index
2
O&M Quick
2M00
O&M Rating
140
Overall Index
3
Overall Quick
—
Overall Rating
412
Pipe schematic from manhole 18 0375 to 18 0374
MH: 18 0375MH: 18 0374downstream0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 03752 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start6 ft. FM - Fracture Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES, Start39.7 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"68.5 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"141.9 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"243.4 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"348 ft. FM - Fracture Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES, Finish349.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish352.7 ft. AMH - Downstream Manhole, Survey Ends - 18 0374352.7 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (2)

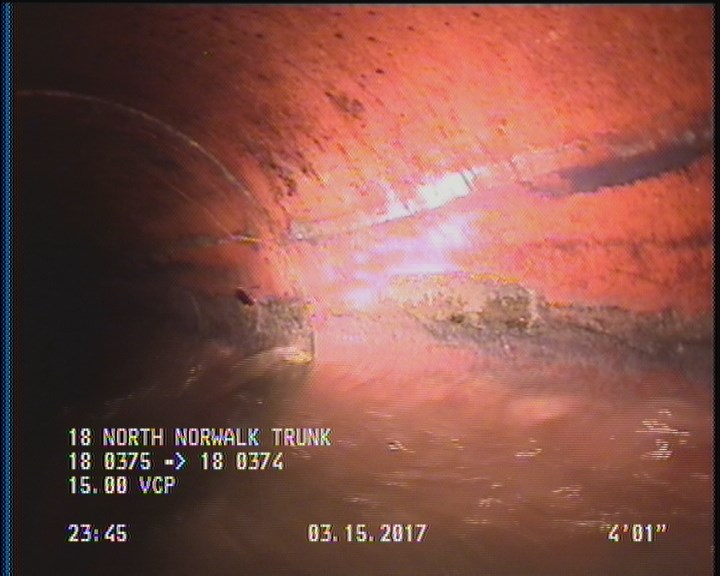

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

  • Fracture Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES, Start

    6 ft. - Fracture Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES, Start

All inspections of P14209Work order 624575

Observations (14)

DistanceCodeObservation
348FM—
6FM—
0MGOCOCKROACHES IN MANHOLE
68.5TBA—
243.4TFC—
39.7TF—
141.9TFA—
0MWL—
0MWM—
352.7AMH18 0374
0AMH18 0375
349.6DAGS—
2DAGS—
352.7MGOCOCKROACHES IN MANHOLE

Properties (4)

additional_info
SC306975
custom_field_two
2
customer
LACSD
datetime
2017-03-15T23:42:59-07:00
