Wastewater/Activity/PacpInspection/1.0Mar 7, 2017, 06:09 AM
18 1102 N_18 1101 _03062017_221847.mp4
- Date
- 03/06/2017
- W/O
- 624500
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00699
- PipeID
- P14268
- Time
- 10:09 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4368
- Sewer Name
- 18 SANTA FE STREET RELIEF TRUNK
- City
- WHITTIER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_624500_TV18084_MAR2017
- Sewer Type
- Siphon
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 18 1102 N
- Downstream MH
- 18 1101
- Dir. of Survey
- Downstream
- Length Surveyed
- 4.7 ft.
- Total Length
- 4.7 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (3)

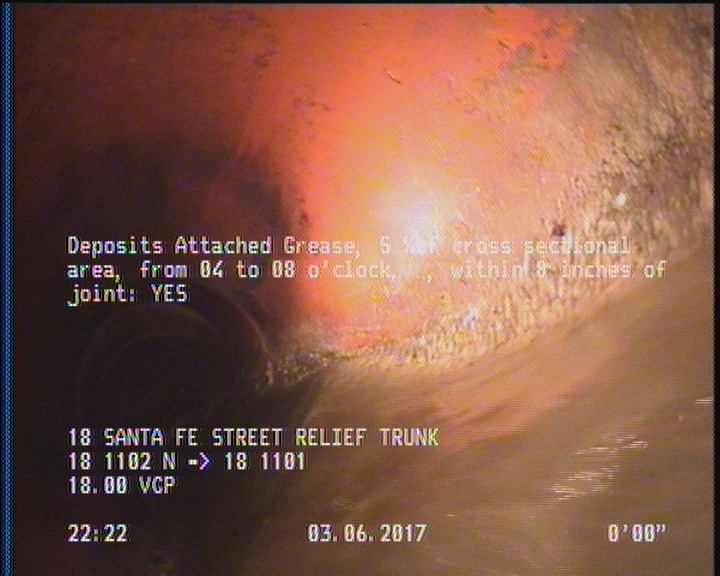

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES

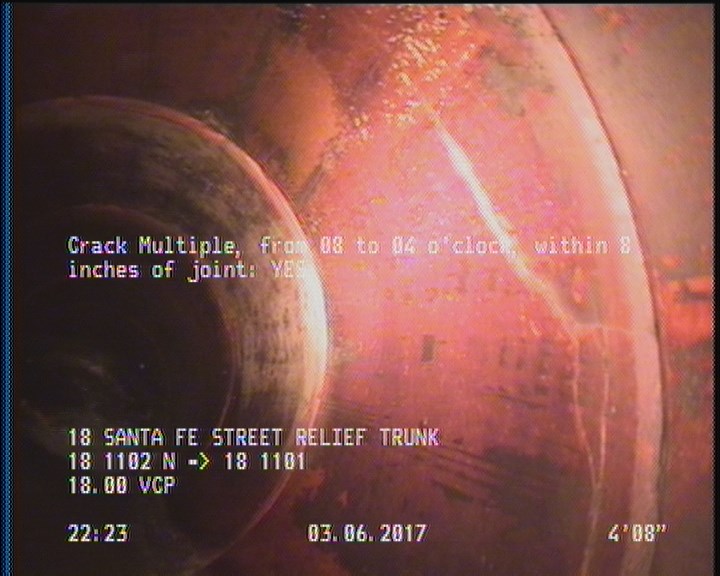

4.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

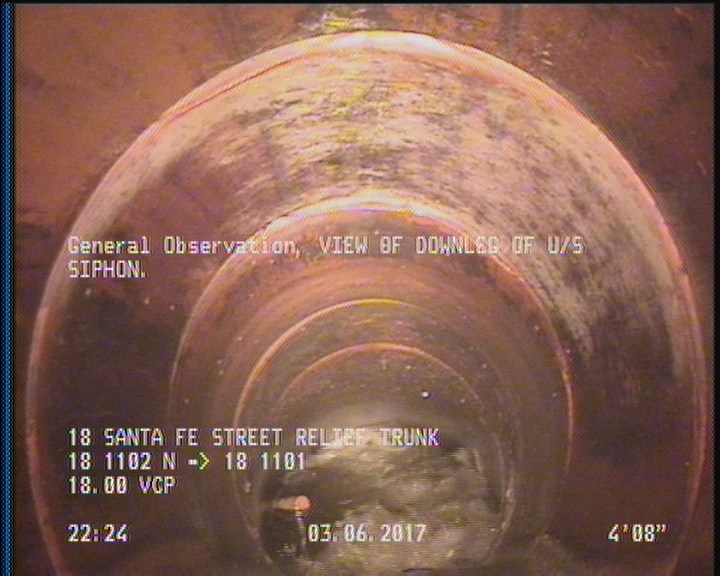

4.7 ft. - Survey Abandoned - VIEW OF DOWNLEG OF U/S SIPHON.
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 18 1102, NORTH BARREL |
| 2 | DAGS | — |
| 4.4 | CM | — |
| 4.7 | MSA | VIEW OF DOWNLEG OF U/S SIPHON. |
| 0 | MWL | — |
| 0 | MWM | — |
Properties (5)
- additional_info
- SC306964
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-03-06T22:09:13-08:00
- year_laid
- 26802
