  • 20 0229_20 0228_27032017_232920.mpg

Date
03/27/2017
W/O
624439
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00735
PipeID
P19196
Time
11:29 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4399
Sewer Name
20 AVENUE "Q" TRUNK
City
PALMDALE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 20
Page No.
07
Purpose
Routine Assessment
Project
WO_624439_TV20019_MAR2017
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
20 0229
Downstream MH
20 0228
Dir. of Survey
Downstream
Length Surveyed
333.4 ft.
Total Length
333.4 ft.
Structural Index
3
Structural Quick
3L21
Structural Rating
200
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
200
Pipe schematic from manhole 20 0229 to 20 0228
MH: 20 0229MH: 20 0228downstream0 ft. AMH - Upstream Manhole, Survey Begins - 20 02290 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 5 %of cross sectional area2.1 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2.1 ft. MGO - General Observation - MAG COAT40.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"43.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"92.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"95.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"103.3 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES137.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"141.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"189.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"192.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"238 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"241 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"289.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"292.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"320.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"323.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"333.4 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish333.4 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK333.4 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK CAPPED333.4 ft. AMH - Downstream Manhole, Survey Ends - 20 0228

Observation photos (2)

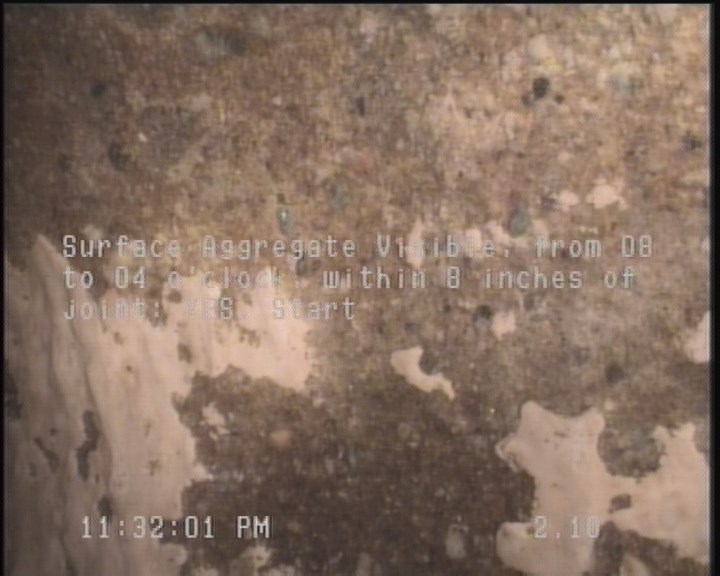

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

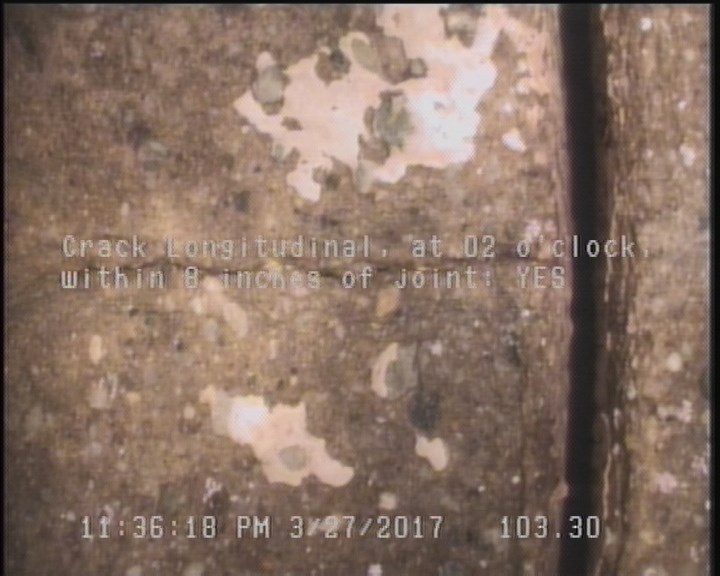

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

    103.3 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

All inspections of P19196Work order 624439

Observations (24)

DistanceCodeObservation
2.1SAV—
0AMH20 0229
0MWL—
189.8TFC—
323.1TFC—
43.7TFC—
40.5TFC—
2.1MGOMAG COAT
192.8TFC—
103.3CL—
238TFC—
333.4SAV—
141.1TFC—
95.9TFC—
0MWM—
333.4MGOCONNECTION AT MH 3 O'CLOCK
320.2TFC—
333.4MGOCONNECTION AT MH 9 O'CLOCK CAPPED
289.7TFC—
92.2TFC—
137.7TFC—
241TFC—
333.4AMH20 0228
292.7TFC—

Properties (4)

additional_info
SC345158
custom_field_two
3
customer
LACSD
datetime
2017-03-27T23:29:14-07:00
