Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 30, 2017, 05:32 AM

  • 14 0106_14 0105 _29032017_223316.mpg

Date
03/29/2017
W/O
624327
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00577
PipeID
P18132
Time
10:32 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4404
Sewer Name
14 TRUNK "A"
City
LANCASTER
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 14
Page No.
18
Purpose
Routine Assessment
Project
WO_624327_TV14017_MAR2017
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
14 0105
Downstream MH
14 0106
Dir. of Survey
Upstream
Length Surveyed
362.8 ft.
Total Length
362.8 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole 14 0105 to 14 0106
MH: 14 0105MH: 14 0106upstream0 ft. AMH - Upstream Manhole, Survey Ends - 14 01060 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK CAPPED40.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"63.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"90.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"113.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"140.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"163.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"190.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"213.1 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"217 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"239.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"262.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"293.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"316.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"339.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"360.8 ft. MMC - Material Change, Vitrified clay pipe362.8 ft. MWL - Water Level, 10 %of cross sectional area362.8 ft. AMH - Downstream Manhole, Survey Begins - 14 0105362.8 ft. MWM - Water Mark, 15 %of cross sectional area

Observation photos (1)

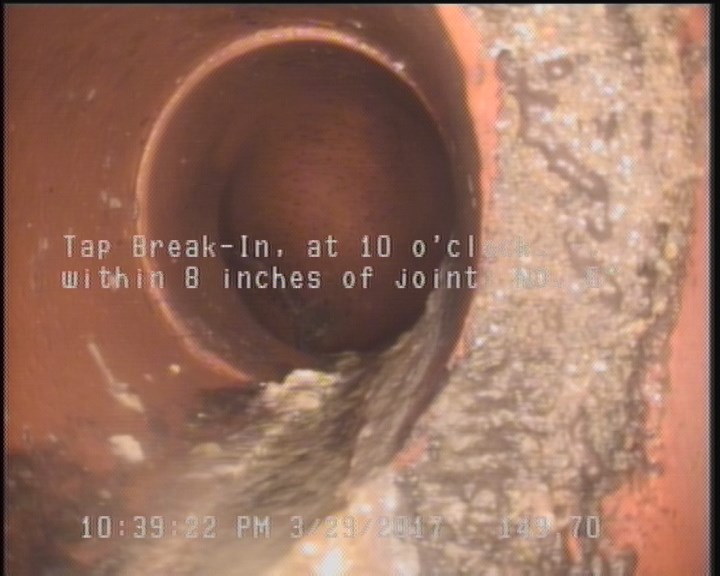

  • Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"

    149.7 ft. - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"

All inspections of P18132Work order 624327

Observations (20)

DistanceCodeObservation
123.6TF—
272.6TFC—
299.3TFC—
322.4TFC—
199.7TFC—
45.9TFC—
23TFC—
100.6TFC—
145.8TFC—
249.5TFC—
0MWL—
362.8AMH14 0106
0AMH14 0105
2MMC—
149.7TB—
69TFC—
362.8MGOCONNECTION AT MH 9 O'CLOCK CAPPED
222.6TFC—
172.6TFC—
0MWM—

Properties (4)

additional_info
SC345163
custom_field_two
4
customer
LACSD
datetime
2017-03-29T22:32:51-07:00
