Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 18, 2017, 12:39 AM

  • 01 0398_01 0397_031017_003443.mp4

Date
02/17/2017
W/O
624309
Weather
Dry
Operator/Surveyor
JUAN B
Sewer ID
Z00208
PipeID
P00877
Time
4:39 PM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
4318
Sewer Name
01 HOLMES-WILLOWBROOK TRUNK
City
LOS ANGELES
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
16
Purpose
Routine Assessment
Project
WO_624309_TV01032_MAR2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
01 0397
Downstream MH
01 0398
Dir. of Survey
Upstream
Length Surveyed
291.4 ft.
Total Length
291.4 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2J00
O&M Rating
114
Overall Index
2
Overall Quick
—
Overall Rating
114
Pipe schematic from manhole 01 0397 to 01 0398
MH: 01 0397MH: 01 0398upstream0 ft. MSA - Survey Abandoned - REVERSAL COMPLETE0 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Finish19.5 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 4"66.4 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 4"121.2 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 4"155.2 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 4"217.2 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 4"251.7 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 4"287.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start287.5 ft. MGO - General Observation - PIPE LINED291.4 ft. MWM - Water Mark, 20 %of cross sectional area291.4 ft. AMH - Downstream Manhole, Survey Begins - 01 0397291.4 ft. MWL - Water Level, 10 %of cross sectional area

Observation photos (1)

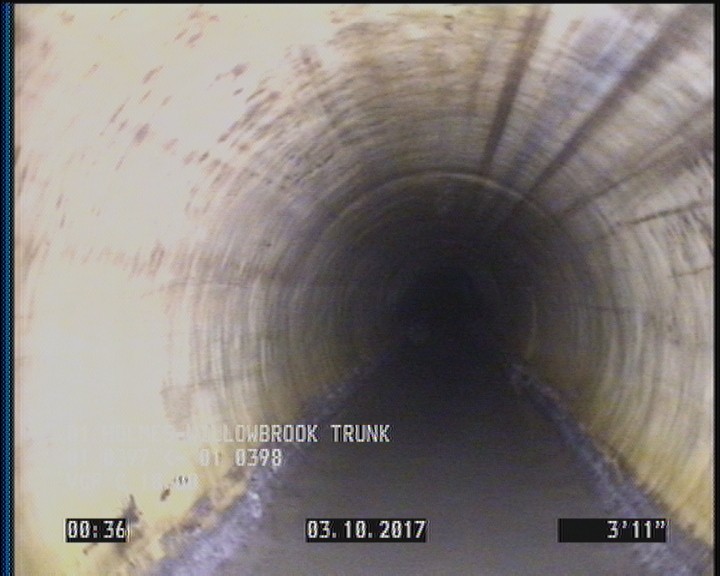

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start

    3.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start

All inspections of P00877Work order 624309

Observations (13)

DistanceCodeObservation
136.2TF—
170.2TF—
0MWM—
225TF—
291.4MSAREVERSAL COMPLETE
291.4DAGS—
3.9DAGS—
39.7TF—
271.9TF—
0AMH01 0397
74.2TFC—
0MWL—
3.9MGOPIPE LINED

Properties (6)

additional_info
SC318731
custom_field_two
4
customer
LACSD
datetime
2017-02-17T16:39:25-08:00
lining
CIPP
year_laid
35628
