Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 8, 2017, 10:02 PM

  • 01 0389_01 0388_030817_141705.mp4

Date
03/08/2017
W/O
624309
Weather
Dry
Operator/Surveyor
JUAN B
Sewer ID
Z00208
PipeID
P00868
Time
2:02 PM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
4315
Sewer Name
01 HOLMES-WILLOWBROOK TRUNK
City
LOS ANGELES
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
16
Purpose
Routine Assessment
Project
WO_624309_TV01032_MAR2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
01 0388
Downstream MH
01 0389
Dir. of Survey
Upstream
Length Surveyed
238.1 ft.
Total Length
238.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2H00
O&M Rating
94
Overall Index
2
Overall Quick
—
Overall Rating
94
Pipe schematic from manhole 01 0388 to 01 0389
MH: 01 0388MH: 01 0389upstream0 ft. MGO - General Observation - CONNECTION AT 9 O CLOCK0 ft. AMH - Upstream Manhole, Survey Ends - 01 03890 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish62.6 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 4"88.9 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 4"162.8 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 4"188.4 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 4"188.4 ft. MGO - General Observation - PIPE LINED234.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start238.1 ft. MWM - Water Mark, 20 %of cross sectional area238.1 ft. AMH - Downstream Manhole, Survey Begins - 01 0388238.1 ft. MWL - Water Level, 15 %of cross sectional area

Observation photos (1)

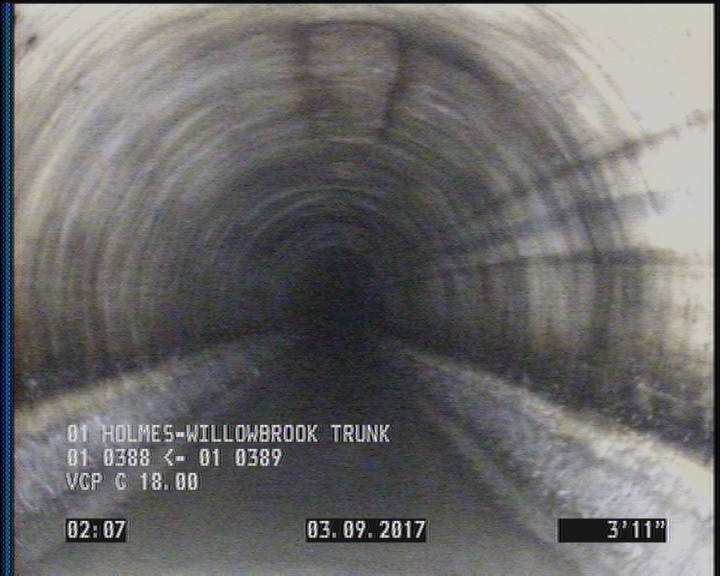

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    3.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P00868Work order 624309

Observations (12)

DistanceCodeObservation
3.9DAGS—
0MWM—
49.7TF—
149.2TF—
238.1MGOCONNECTION AT 9 O CLOCK
0AMH01 0388
75.3TF—
238.1AMH01 0389
49.7MGOPIPE LINED
238.1DAGS—
0MWL—
175.5TF—

Properties (6)

additional_info
SC318730
custom_field_two
4
customer
LACSD
datetime
2017-03-08T14:02:05-08:00
lining
CIPP
year_laid
35628
