Wastewater/Activity/PacpInspection/1.0Mar 7, 2017, 11:43 AM
05 1295_05 1294 _07032017_034447.mp4
- Date
- 03/07/2017
- W/O
- 624344
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00453
- PipeID
- P06508
- Time
- 3:43 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4372
- Sewer Name
- 05 GRAMERCY PLACE TRUNK, SECTION 1
- City
- GARDENA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_624344_TV05033_MAR2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 05 1294
- Downstream MH
- 05 1295
- Dir. of Survey
- Upstream
- Length Surveyed
- 400.7 ft.
- Total Length
- 400.7 ft.
- Structural Index
- 3
- Structural Quick
- 3N21
- Structural Rating
- 233
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 235
Observation photos (5)

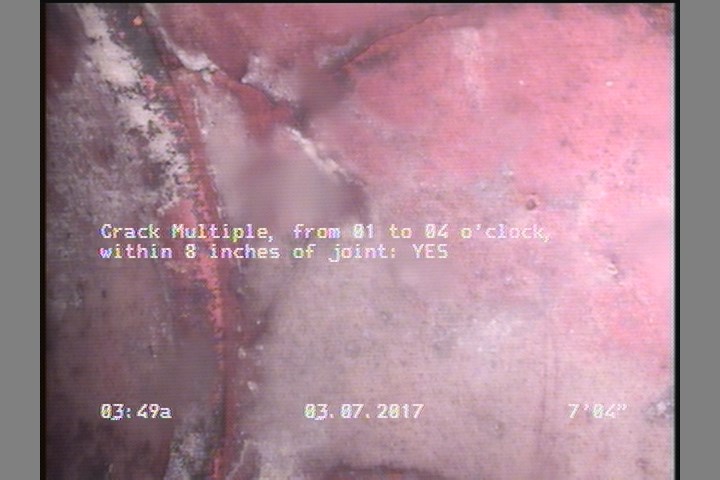

7.2 ft. - Crack Multiple, from 01 to 04 o'clock, within 8 inches of joint: YES

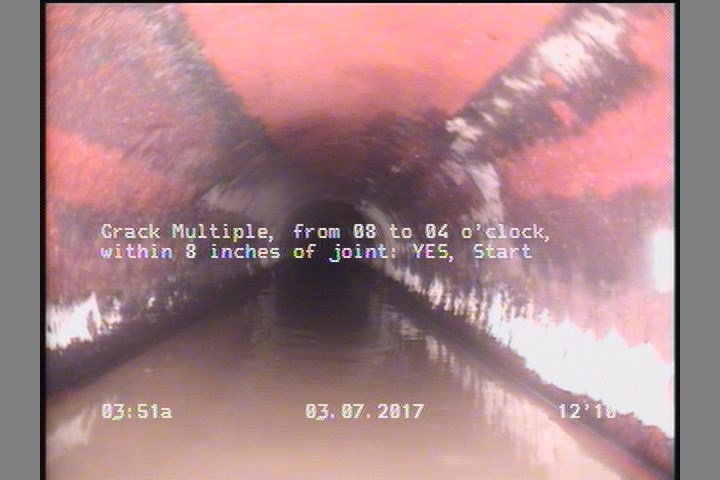

12.9 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

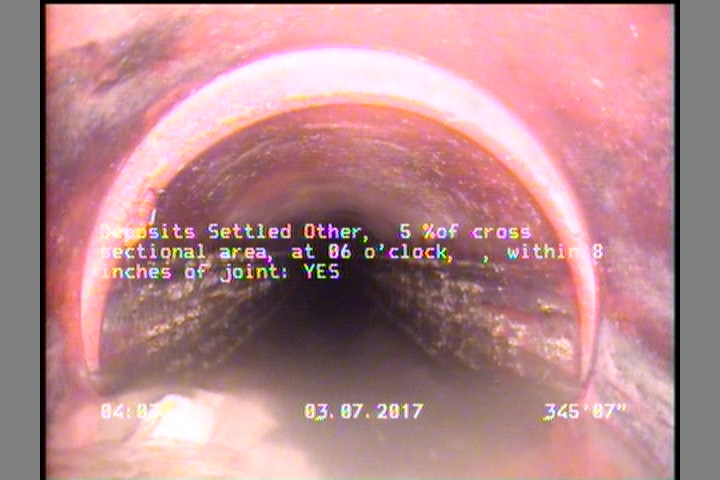

345.5 ft. - Deposits Settled Other, 5 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES

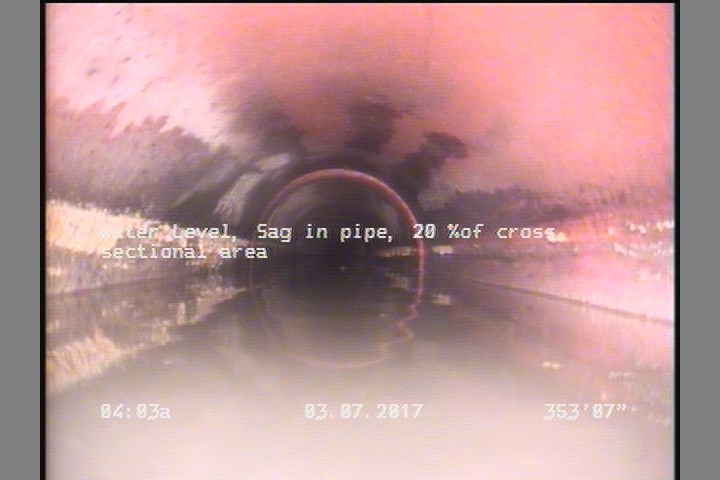

353.6 ft. - Water Level, Sag in pipe, 20 %of cross sectional area

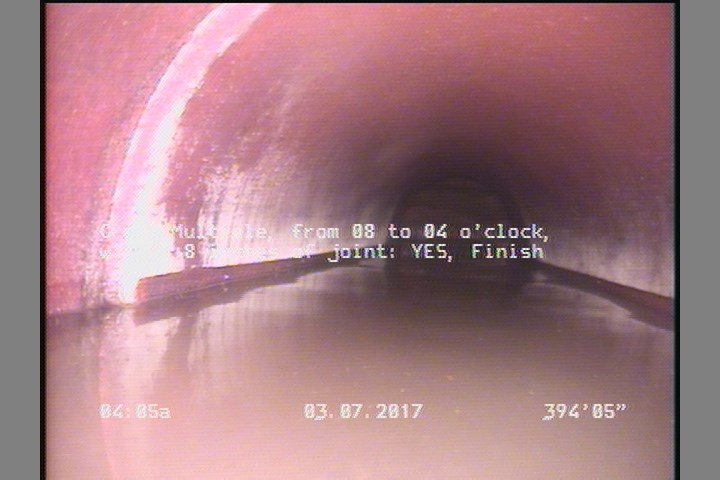

394 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | MWM | — |
| 400.7 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 12.9 | CM | — |
| 7.2 | CM | — |
| 394 | CM | — |
| 0 | AMH | 05 1294 |
| 353.6 | MWLS | — |
| 400.7 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 345.5 | DSZ | — |
| 400.7 | AMH | 05 1295 |
Properties (5)
- additional_info
- SC306881
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-03-07T03:43:14-08:00
- sewer_category
- Gravity
