Wastewater/Activity/PacpInspection/1.0Apr 18, 2017, 05:09 AM
22 0500_22 0499 _20170417_224727.mp4
- Date
- 04/17/2017
- W/O
- 630167
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00800
- PipeID
- P16839
- Time
- 10:09 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4355
- Sewer Name
- 22 COVINA CONNECTION EXTENSION TRUNK
- City
- COVINA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 31
- Purpose
- Routine Assessment
- Project
- WO_630167_TV22031_APR2017
- Material
- NRCP
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 22 0500
- Downstream MH
- 22 0499
- Dir. of Survey
- Downstream
- Length Surveyed
- 58.8 ft.
- Total Length
- 58.8 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (2)

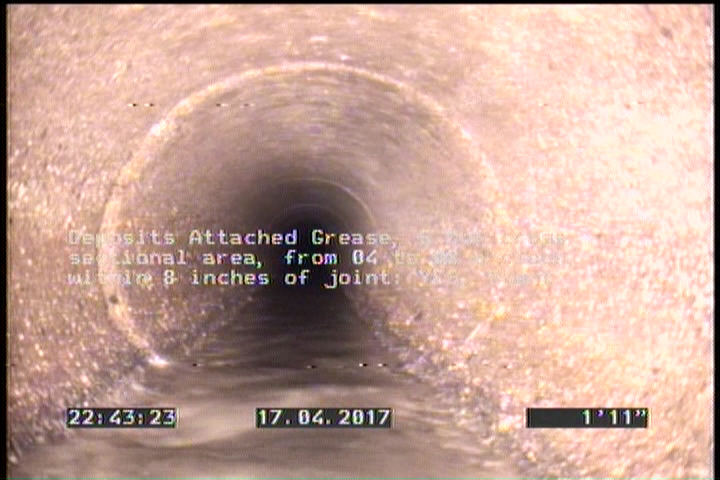

1.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

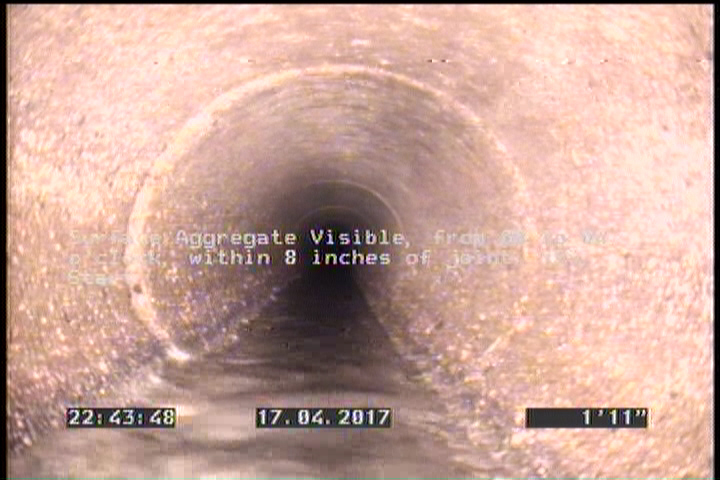

1.9 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 22 0500 |
| 49.8 | TFC | — |
| 1.9 | DAGS | — |
| 46.6 | TFC | — |
| 0 | MWM | — |
| 58.8 | SAV | — |
| 58.8 | AMH | 22 0499 |
| 1.9 | SAV | — |
| 0 | MWL | — |
| 58.8 | DAGS | — |
Properties (5)
- additional_info
- SC340719
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-04-17T22:09:46-07:00
- sewer_category
- Gravity
