Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 11, 2017, 10:02 AM

  • 01 1349_01 0782_11042017_030257.mp4

Date
04/11/2017
W/O
630043
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00197
PipeID
P01482
Time
3:02 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4424
Sewer Name
01 BULLIS ROAD-TEMPLE STREET TRUNK
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
17
Purpose
Routine Assessment
Project
WO_630043_TV01008_APR2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
01 1349
Downstream MH
01 0782
Dir. of Survey
Downstream
Length Surveyed
236 ft.
Total Length
236 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
2
O&M Quick
412H
O&M Rating
96
Overall Index
2
Overall Quick
—
Overall Rating
98
Pipe schematic from manhole 01 1349 to 01 0782
MH: 01 1349MH: 01 0782downstream0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 13492 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start54.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"94.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"97.1 ft. CS - Crack Spiral, from 12 to 01 o'clock, within 8 inches of joint: YES145 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"195.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"234.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish236 ft. AMH - Downstream Manhole, Survey Ends - 01 0782

Observation photos (2)

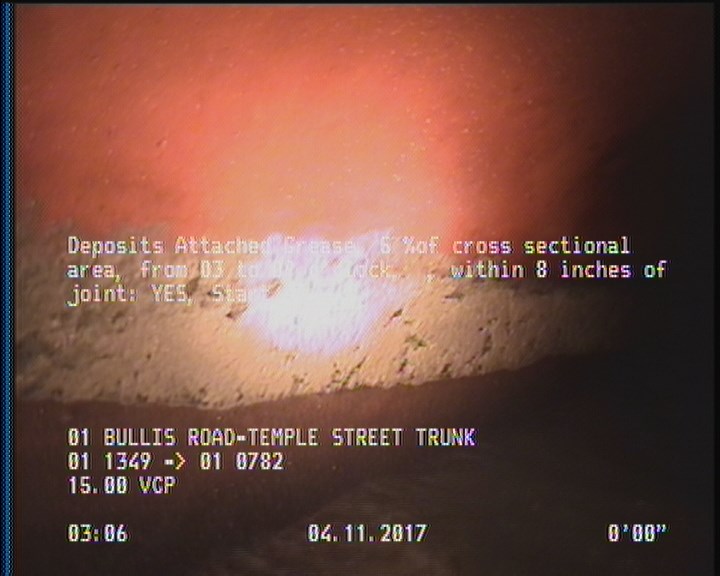

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

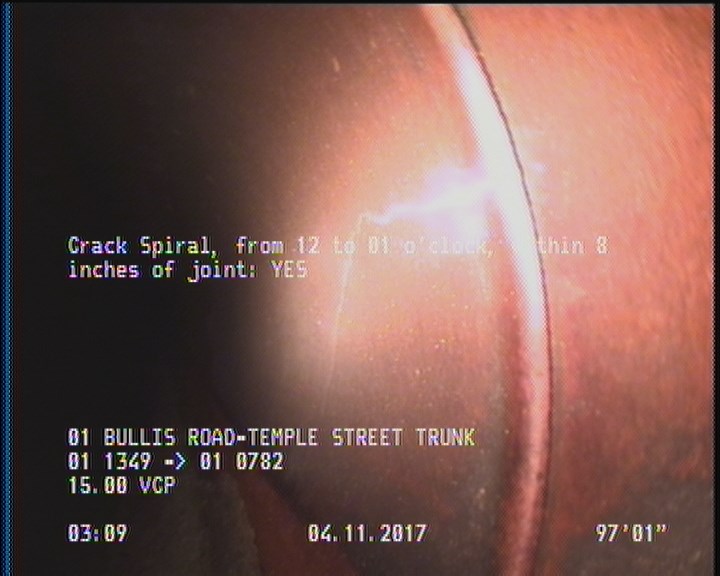

  • Crack Spiral, from 12 to 01 o'clock, within 8 inches of joint: YES

    97.1 ft. - Crack Spiral, from 12 to 01 o'clock, within 8 inches of joint: YES

All inspections of P01482Work order 630043

Observations (11)

DistanceCodeObservation
145TFC—
0MWM—
2DAGS—
234.1DAGS—
236AMH01 0782
195.7TFC—
94.2TFC—
97.1CS—
54.2TFC—
0MWL—
0AMH01 1349

Properties (5)

additional_info
SC306993
custom_field_two
4
customer
LACSD
datetime
2017-04-11T03:02:10-07:00
sewer_category
Gravity
