Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 11, 2017, 11:03 AM

  • 01 1351_01 1350_11042017_040339.mp4

Date
04/11/2017
W/O
630043
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00197
PipeID
P20017
Time
4:03 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4424
Sewer Name
01 BULLIS ROAD-TEMPLE STREET TRUNK
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
17
Purpose
Routine Assessment
Project
WO_630043_TV01008_APR2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
01 1350
Downstream MH
01 1351
Dir. of Survey
Upstream
Length Surveyed
25.2 ft.
Total Length
25.2 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
4124
O&M Rating
12
Overall Index
2
Overall Quick
—
Overall Rating
12
Pipe schematic from manhole 01 1350 to 01 1351
MH: 01 1350MH: 01 1351upstream0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. AMH - Upstream Manhole, Survey Ends - 01 13511.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish23.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start25.2 ft. MWL - Water Level, 25 %of cross sectional area25.2 ft. MWM - Water Mark, 50 %of cross sectional area25.2 ft. AMH - Downstream Manhole, Survey Begins - 01 1350

Observation photos (2)

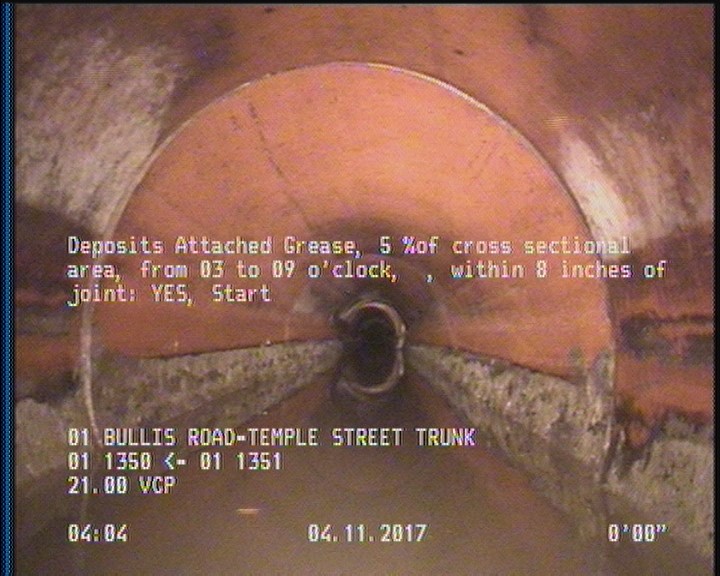

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

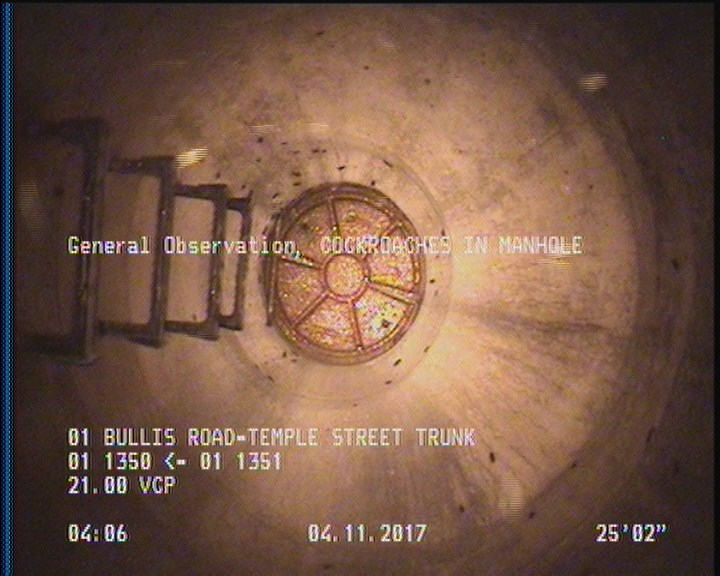

  • General Observation - COCKROACHES IN MANHOLE

    25.2 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P20017Work order 630043

Observations (8)

DistanceCodeObservation
0MWL—
0MWM—
25.2MGOACTIVE CONNECTION AT MH 3 O'CLOCK
25.2MGOCOCKROACHES IN MANHOLE
2DAGS—
0AMH01 1350
23.5DAGS—
25.2AMH01 1351

Properties (5)

additional_info
SC306993
custom_field_two
4
customer
LACSD
datetime
2017-04-11T04:03:01-07:00
sewer_category
Gravity
