Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 12, 2017, 07:17 AM

  • 01 1366_01 1365_12042017_001820.mp4

Date
04/12/2017
W/O
630043
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00197
PipeID
P21396
Time
12:17 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4425
Sewer Name
01 BULLIS ROAD-TEMPLE STREET TRUNK
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
17
Purpose
Routine Assessment
Project
WO_630043_TV01008_APR2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
01 1366
Downstream MH
01 1365
Dir. of Survey
Downstream
Length Surveyed
362.6 ft.
Total Length
362.6 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2[00
O&M Rating
276
Overall Index
2
Overall Quick
—
Overall Rating
276
Pipe schematic from manhole 01 1366 to 01 1365
MH: 01 1366MH: 01 1365downstream0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 13660 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start30.5 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - DEBRIS133.6 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"232.4 ft. TFA - Tap Factory Made Active, at 01 o'clock, -, within 8 inches of joint: NO, 6"360.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish360.6 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish362.6 ft. AMH - Downstream Manhole, Survey Ends - 01 1365362.6 ft. MGO - General Observation - COCKROACHES IN MANHOLE362.6 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK

Observation photos (2)

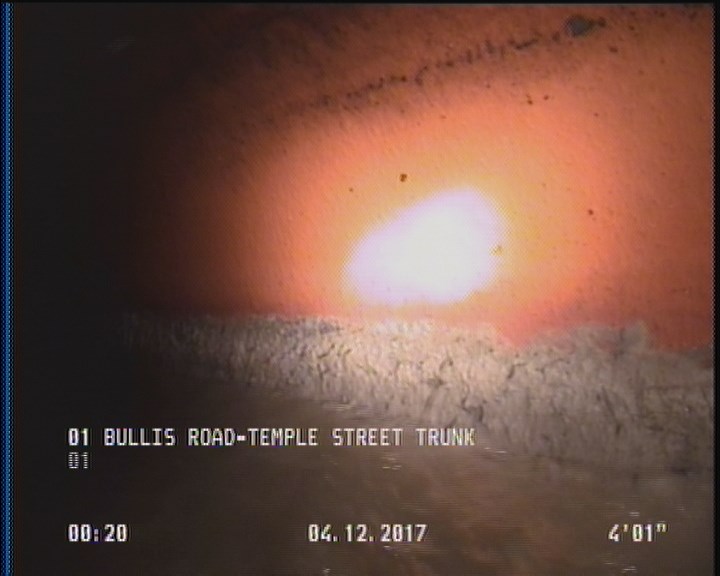

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

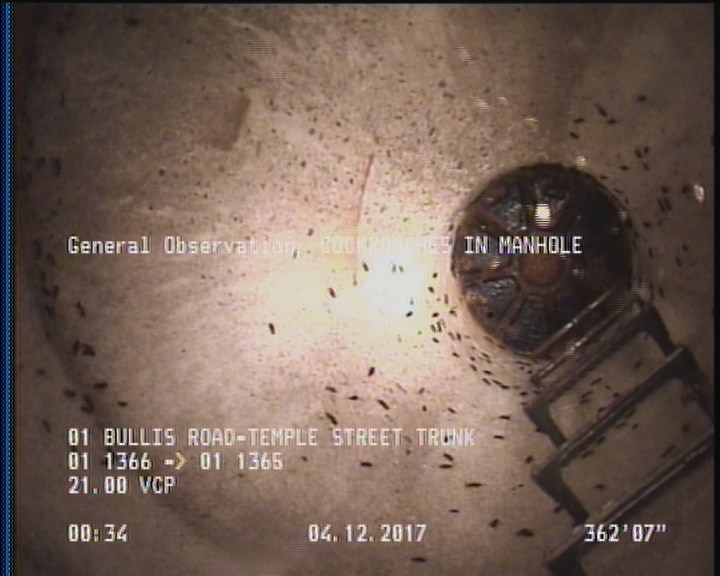

  • General Observation - COCKROACHES IN MANHOLE

    362.6 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P21396Work order 630043

Observations (14)

DistanceCodeObservation
0MGOACTIVE CONNECTION AT MH 3 O'CLOCK
133.6TFA—
362.6AMH01 1365
30.5DSZDEBRIS
362.6MGOCOCKROACHES IN MANHOLE
232.4TFA—
360.6DAGS—
2DAGS—
0MWM—
0AMH01 1366
362.6MGOACTIVE CONNECTION AT MH 3 O'CLOCK
0MWL—
0MGOCOCKROACHES IN MANHOLE
360.6DSZ—

Properties (6)

additional_info
SC306994
custom_field_two
4
customer
LACSD
datetime
2017-04-12T00:17:56-07:00
sewer_category
Gravity
year_laid
35417
