Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 19, 2017, 09:04 AM

  • 01 1379_01 1378_19042017_020522.mp4

Date
04/19/2017
W/O
630043
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00197
PipeID
P22184
Time
2:04 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4433
Sewer Name
01 BULLIS ROAD-TEMPLE STREET TRUNK
City
LYNWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
14
Purpose
Routine Assessment
Project
WO_630043_TV01008_APR2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
01 1378
Downstream MH
01 1379
Dir. of Survey
Upstream
Length Surveyed
297.1 ft.
Total Length
297.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2K00
O&M Rating
118
Overall Index
2
Overall Quick
—
Overall Rating
118
Pipe schematic from manhole 01 1378 to 01 1379
MH: 01 1378MH: 01 1379upstream0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Ends - 01 13790 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish76.4 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"177.1 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"228.9 ft. TBA - Tap Break-In Active, at 11 o'clock, -, within 8 inches of joint: YES, 6"277.1 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"295.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start297.1 ft. AMH - Downstream Manhole, Survey Begins - 01 1378297.1 ft. MWL - Water Level, 15 %of cross sectional area297.1 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK297.1 ft. MWM - Water Mark, 30 %of cross sectional area

Observation photos (1)

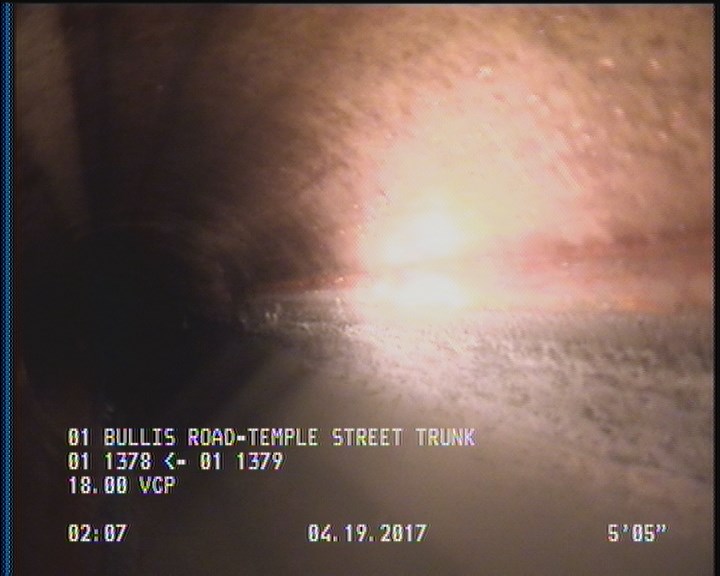

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P22184Work order 630043

Observations (12)

DistanceCodeObservation
0AMH01 1378
68.2TBA—
297.1MGOACTIVE CONNECTION AT MH 3 O'CLOCK
2DAGS—
220.7TFA—
0MWL—
120TFA—
0MGOACTIVE CONNECTION AT MH 3 O'CLOCK
297.1AMH01 1379
20TFA—
297.1DAGS—
0MWM—

Properties (6)

additional_info
SC345205
custom_field_two
4
customer
LACSD
datetime
2017-04-19T02:04:43-07:00
sewer_category
Gravity
year_laid
35934
