Wastewater/Activity/PacpInspection/1.0Jul 5, 2017, 03:59 PM
A 0348_A 0347_752017_090834.mp4
- Date
- 07/05/2017
- W/O
- 0636060
- Weather
- Dry
- Operator/Surveyor
- IGNACIO
- Sewer ID
- Z00325
- PipeID
- P08258
- Time
- 8:59 AM
- Certificate
- PENDING
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7453
- Sewer Name
- A JOA-1A SAN JOSE CREEK WRP INTERCEPTOR
- City
- EL MONTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- 20170705MI_JOA_1A_SAN_JOSE_CREEK_WRP_INTERCEPTOR
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 42 in.
- Upstream MH
- A 0348
- Downstream MH
- A 0347
- Dir. of Survey
- Downstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 4
- O&M Quick
- 4200
- O&M Rating
- 8
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 11
Observation photos (5)

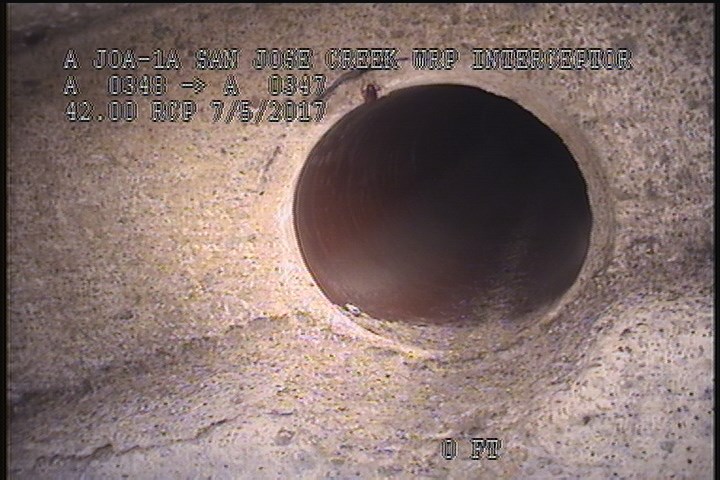

0 ft. - General Observation - AIRLINE AT MH, 12 OCLOCK

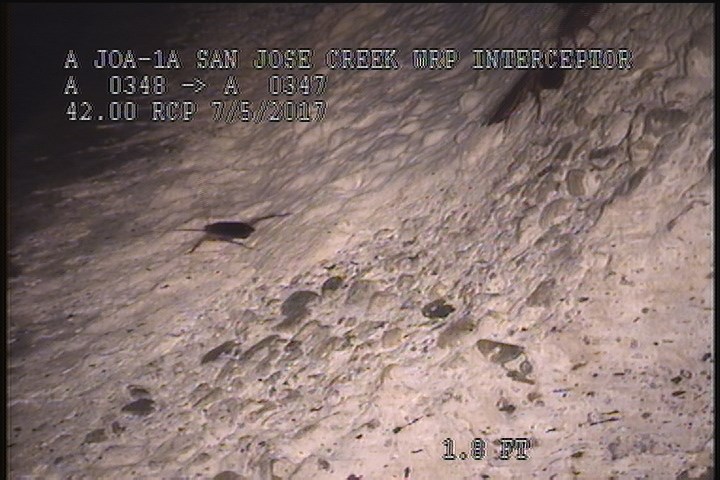

1.8 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES

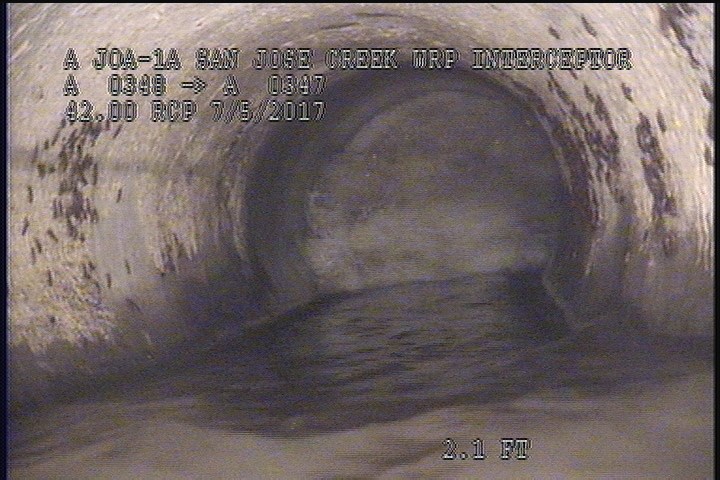

1.8 ft. - General Observation - VIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON

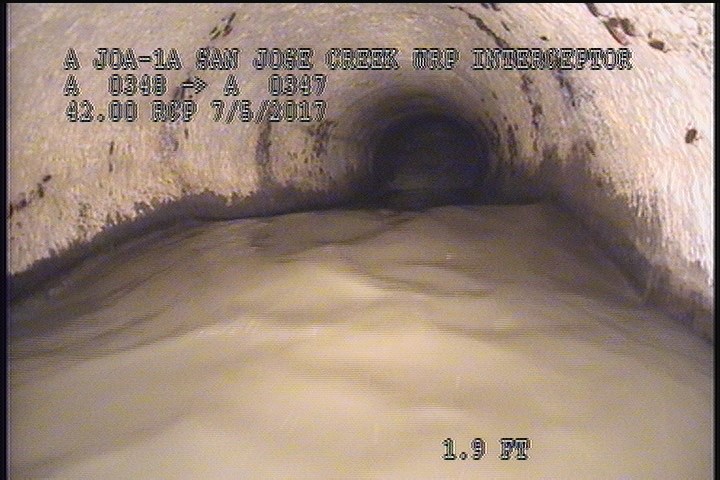

1.9 ft. - General Observation - MAGNESIUM HYDROXIDE COAT, FROM 8 TO 4 OCLOCK, 80%

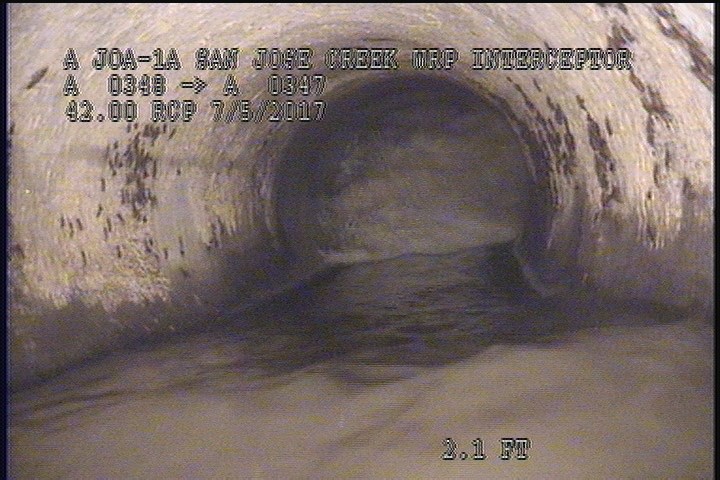

2.1 ft. - Survey Abandoned - VIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | LD | — |
| 1.8 | SAP | — |
| 2.1 | MSA | VIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON |
| 0 | MGO | AIRLINE AT MH, 12 OCLOCK |
| 0 | MWM | — |
| 0 | AMH | 09:10 AM |
| 0 | MWL | — |
| 1.8 | MGO | VIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON |
| 1.9 | MGO | MAGNESIUM HYDROXIDE COAT, FROM 8 TO 4 OCLOCK, 80% |
Properties (5)
- additional_info
- VIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-07-05T08:59:24-07:00
- year_laid
- 19800725
