Wastewater/Activity/PacpInspection/1.0Jul 6, 2017, 08:38 AM
Section#8_F 0259_F 0258__762017__G6776.mp4
- Date
- 07/06/2017
- W/O
- 0649649
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00043
- PipeID
- P10288
- Time
- 1:38 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6776
- Sewer Name
- F JOINT OUTFALL F - UNIT 7A
- City
- CERRITOS
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 37
- Purpose
- Routine Assessment
- Project
- 20170705MDM_JOINT_OUTFALL_F_UNIT_7A
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 51 in.
- Upstream MH
- F 0259
- Downstream MH
- F 0258
- Dir. of Survey
- Downstream
- Length Surveyed
- 25.5 ft.
- Total Length
- 25.5 ft.
- Structural Index
- 3
- Structural Quick
- 4234
- Structural Rating
- 30
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 30
Observation photos (3)

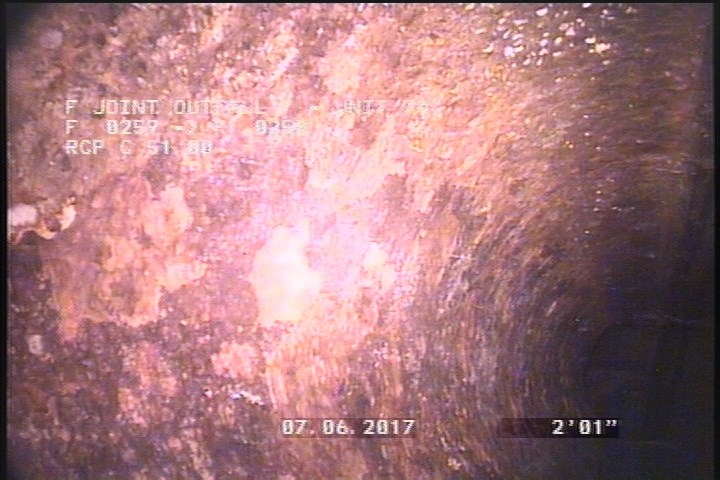

2.1 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE

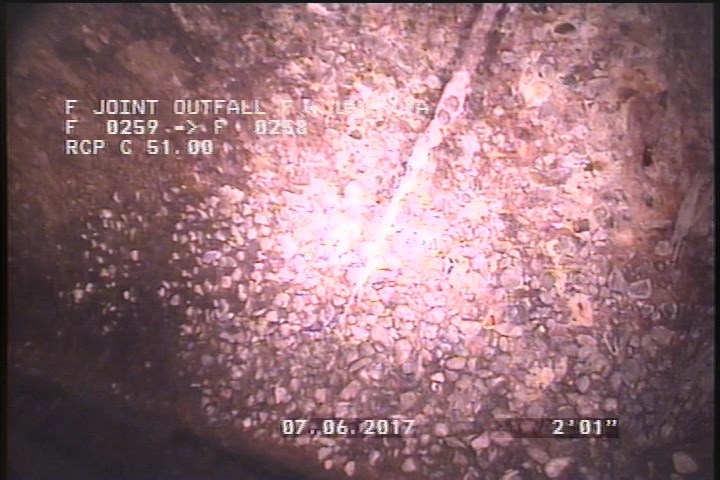

2.1 ft. - Surface Aggregate Missing, from 12 to 04 o'clock, within 8 inches of joint: NO, Start - SEVERE AGG

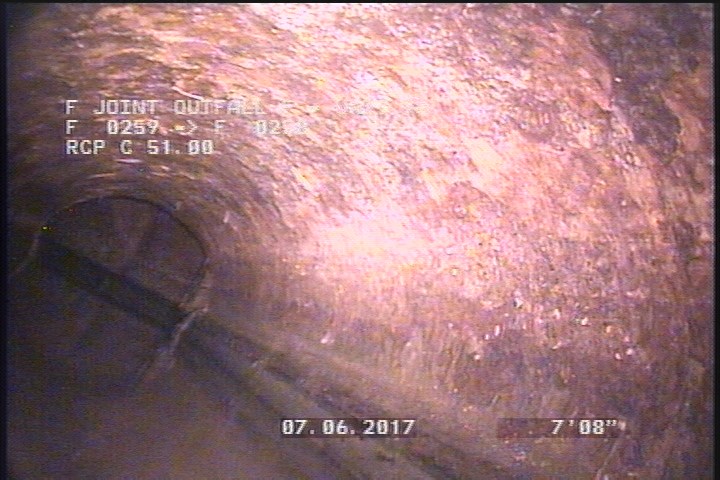

7.6 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG VERY SPORATIC
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 2.1 | SSS | BLISTERING PEELING CONCRETE |
| 2.1 | SAM | SEVERE AGG |
| 0 | MWL | — |
| 7.6 | SAV | SEVERE AGG VERY SPORATIC |
| 25.2 | SAV | SEVERE AGG VERY SPORATIC |
| 7.6 | SAM | SEVERE AGG |
| 0 | MWM | — |
| 0 | AMH | 4:10AM |
| 25.2 | SSS | BLISTERING PEELING CONCRETE |
| 25.5 | AMH | 4:20AM |
Properties (4)
- custom_field_three
- SEVERE AGG MISSING
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-07-06T01:38:21-07:00
