Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 5, 2017, 08:48 AM

  • Section#4_F 0157_F 0156__752017__G6775.mp4

Date
07/05/2017
W/O
0649649
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00043
PipeID
P10291
Time
1:48 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6775
Sewer Name
F JOINT OUTFALL F - UNIT 7A
City
CERRITOS
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
37
Purpose
Routine Assessment
Project
20170705MDM_JOINT_OUTFALL_F_UNIT_7A
Material
Reinforced Concrete Pipe
Shape
Circular
Height
51 in.
Upstream MH
F 0157
Downstream MH
F 0156
Dir. of Survey
Downstream
Length Surveyed
435.7 ft.
Total Length
435.7 ft.
Structural Index
4
Structural Quick
534P
Structural Rating
365
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
365
Pipe schematic from manhole F 0157 to F 0156
MH: F 0157MH: F 0156downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 4:50AM0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. SAM - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG2 ft. MGO - General Observation - MAG COAT 60% START 8:00 TO 4:0028.4 ft. SRV - Surface Reinforcement Visible, from 10 to 11 o'clock, within 8 inches of joint: NO - CIRCUM REBAR86 ft. FC - Fracture Circumferential, from 10 to 11 o'clock, within 8 inches of joint: YES - CIRCUM REBAR216.6 ft. SRV - Surface Reinforcement Visible, from 09 to 11 o'clock, within 8 inches of joint: YES - CIRCUM REBAR222.6 ft. SRV - Surface Reinforcement Visible, from 11 to 02 o'clock, within 8 inches of joint: YES - CIRCUM REBAR435.1 ft. SAM - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG435.1 ft. MGO - General Observation - MAG COAT 60% FINISH435.7 ft. AMH - Downstream Manhole, Survey Ends - 5:20AM

Observation photos (6)

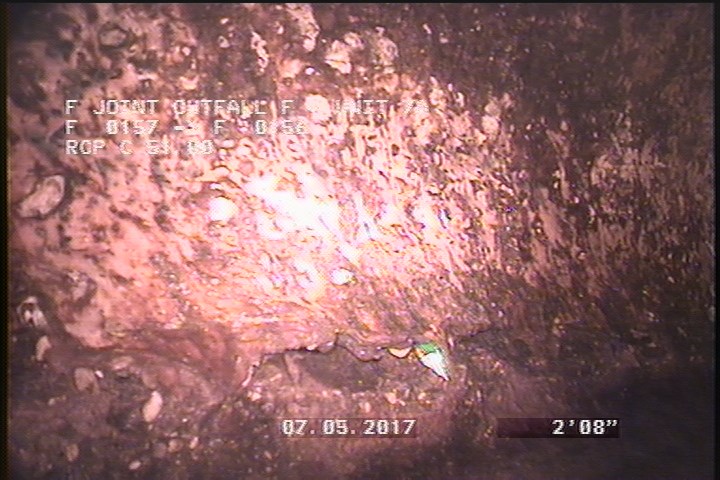

  • Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

    2 ft. - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

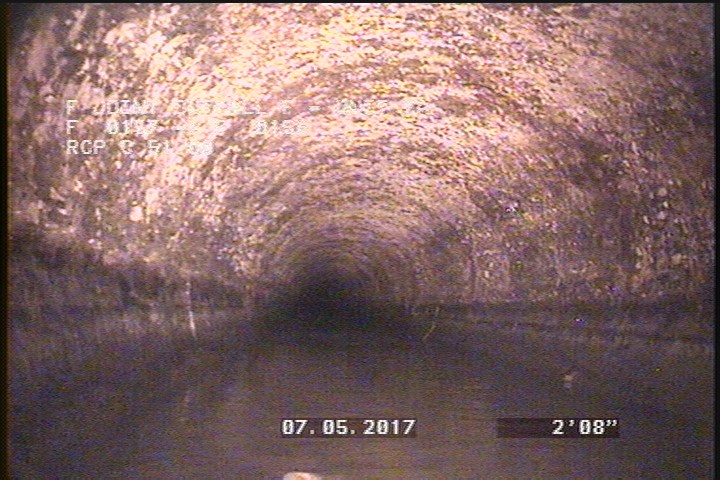

  • General Observation - MAG COAT 60% START 8:00 TO 4:00

    2 ft. - General Observation - MAG COAT 60% START 8:00 TO 4:00

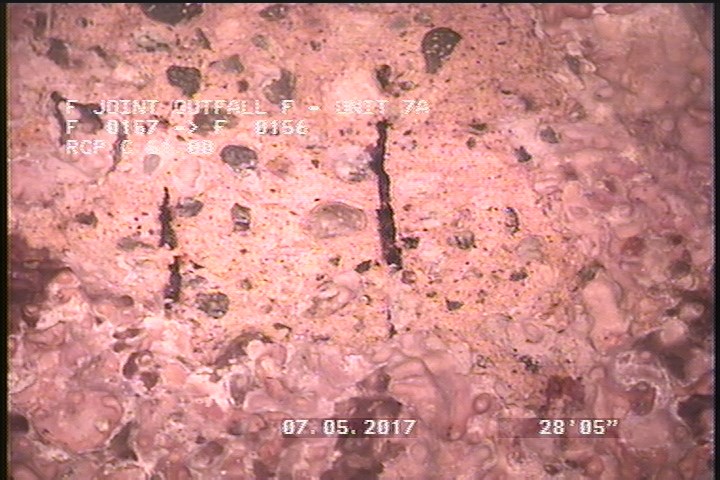

  • Surface Reinforcement Visible, from 10 to 11 o'clock, within 8 inches of joint: NO - CIRCUM REBAR

    28.4 ft. - Surface Reinforcement Visible, from 10 to 11 o'clock, within 8 inches of joint: NO - CIRCUM REBAR

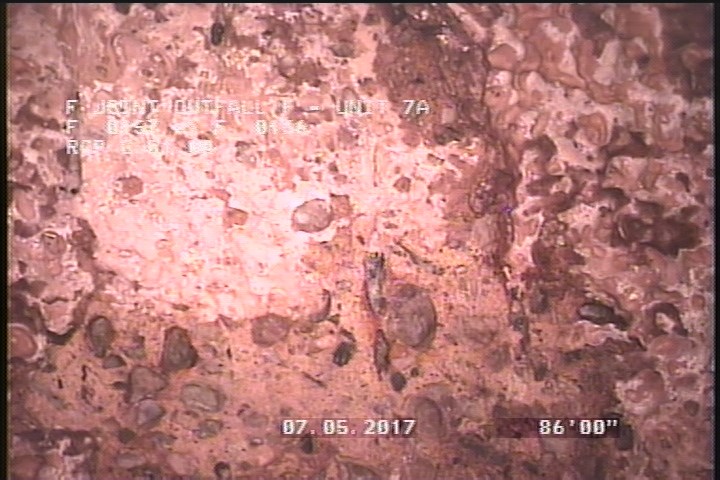

  • Fracture Circumferential, from 10 to 11 o'clock, within 8 inches of joint: YES - CIRCUM REBAR

    86 ft. - Fracture Circumferential, from 10 to 11 o'clock, within 8 inches of joint: YES - CIRCUM REBAR

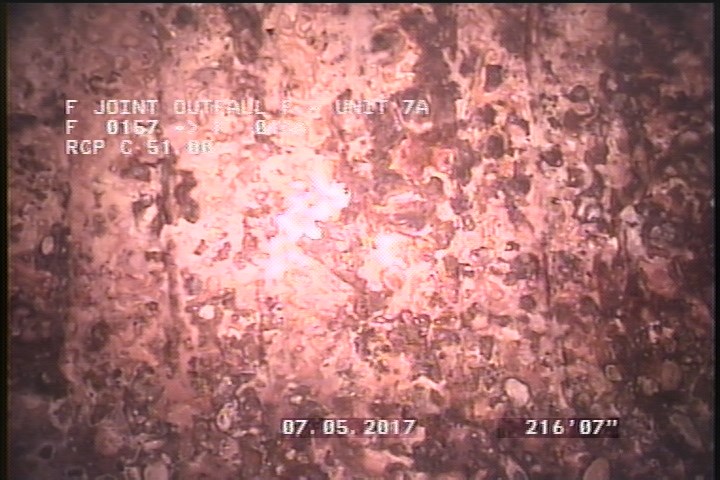

  • Surface Reinforcement Visible, from 09 to 11 o'clock, within 8 inches of joint: YES - CIRCUM REBAR

    216.6 ft. - Surface Reinforcement Visible, from 09 to 11 o'clock, within 8 inches of joint: YES - CIRCUM REBAR

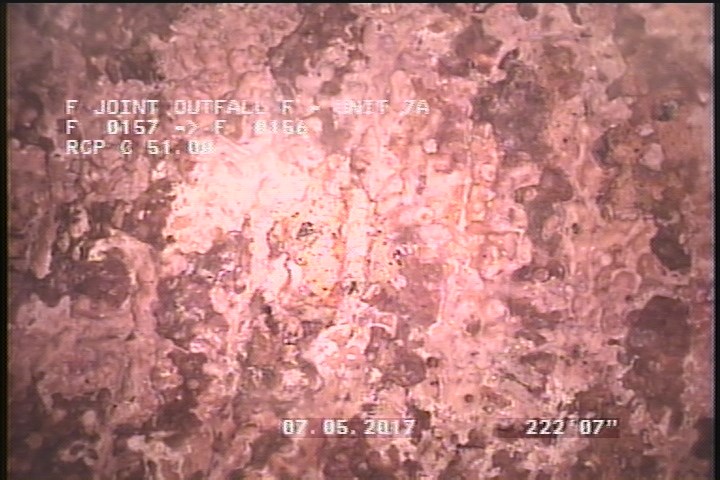

  • Surface Reinforcement Visible, from 11 to 02 o'clock, within 8 inches of joint: YES - CIRCUM REBAR

    222.6 ft. - Surface Reinforcement Visible, from 11 to 02 o'clock, within 8 inches of joint: YES - CIRCUM REBAR

All inspections of P10291Work order 0649649

Observations (12)

DistanceCodeObservation
435.1SAMSEVERE AGG
222.6SRVCIRCUM REBAR
86FCCIRCUM REBAR
28.4SRVCIRCUM REBAR
216.6SRVCIRCUM REBAR
0MWM—
2SAMSEVERE AGG
435.7AMH5:20AM
0AMH4:50AM
2MGOMAG COAT 60% START 8:00 TO 4:00
0MWL—
435.1MGOMAG COAT 60% FINISH

Properties (4)

custom_field_three
CIRCUM REBAR VISIBLE
custom_field_two
2
customer
LACSD
datetime
2017-07-05T01:48:16-07:00
