Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 11, 2017, 03:32 PM

  • C 0613_C 0612_7112017_091304.mp4

Date
07/11/2017
W/O
0640847
Weather
Dry
Operator/Surveyor
SANTIAGO OBREGON
Sewer ID
Z00124
PipeID
P22934
Time
8:32 AM
Certificate
U-1014-06022541
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7457
Sewer Name
C JOINT OUTFALL C - UNIT 3E
City
LONG BEACH
Loc. details
Parking Lot
Location Code
G
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
14
Purpose
Routine Assessment
Project
20170711SHO_JOINT_OUTFALL_C_UNIT_3E
Material
Vitrified Clay Pipe
Shape
Circular
Height
33 in.
Upstream MH
C 0613
Downstream MH
C 0612
Dir. of Survey
Downstream
Length Surveyed
256.6 ft.
Total Length
256.6 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole C 0613 to C 0612
MH: C 0613MH: C 0612downstream0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 09120 ft. MWM - Water Mark, 35 %of cross sectional area10 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start255.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish256.6 ft. AMH - Downstream Manhole, Survey Ends - 0930

Observation photos (1)

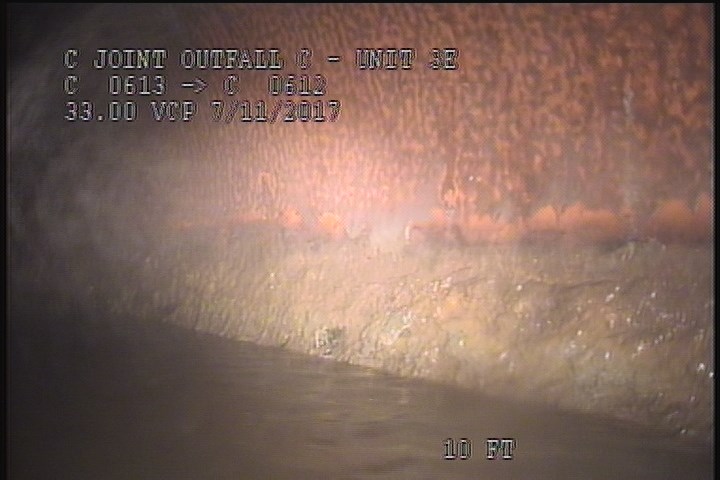

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    10 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P22934Work order 0640847

Observations (6)

DistanceCodeObservation
0MWL—
255.8DAGS—
10DAGS—
0AMH0912
0MWM—
256.6AMH0930

Properties (4)

custom_field_three
SMALL AMOUNT OF GREASE THROUGHOUT
custom_field_two
4
customer
LACSD
datetime
2017-07-11T08:32:58-07:00
