Wastewater/Activity/PacpInspection/1.0Jan 17, 2017, 12:40 PM
F 0289_F 0288 _01172017_045034.mp4
- Date
- 01/17/2017
- W/O
- 613620
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00931
- PipeID
- P20328
- Time
- 4:40 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4212
- Sewer Name
- F JOINT OUTFALL F - UNIT 5 RELIEF
- City
- NORWALK
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 34
- Purpose
- Routine Assessment
- Project
- WO_613620_TV02234_JAN2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- F 0288
- Downstream MH
- F 0289
- Dir. of Survey
- Upstream
- Length Surveyed
- 8.8 ft.
- Total Length
- 8.8 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 4131
- O&M Rating
- 11
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 11
Observation photos (3)

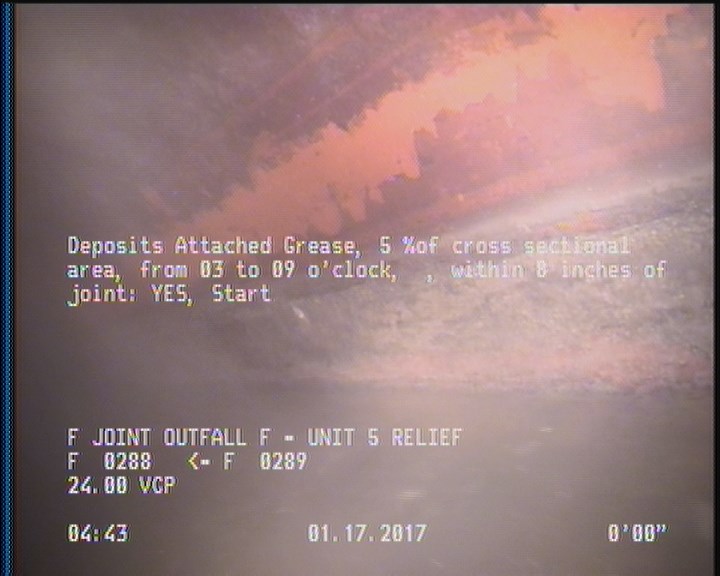

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

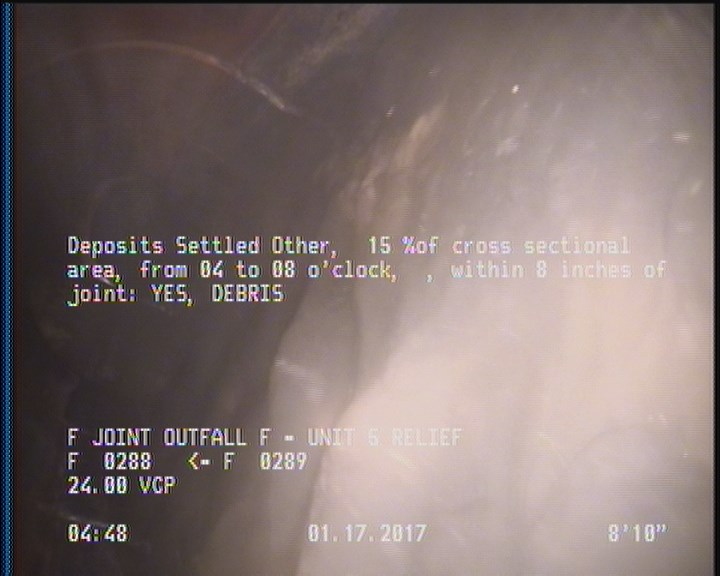

8.8 ft. - Deposits Settled Other, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES - DEBRIS

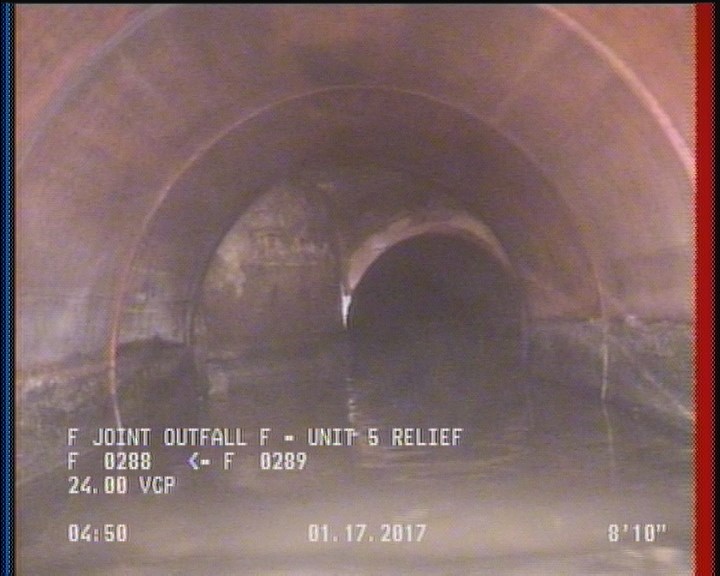

8.8 ft. - Upstream Manhole, Survey Ends - F 0289, CONDITIONS DO NOT CHANGE.
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | F 0288 |
| 0 | MWL | — |
| 8.8 | DSZ | DEBRIS |
| 2 | DAGS | — |
| 8.8 | AMH | F 0289, CONDITIONS DO NOT CHANGE. |
| 8.8 | DAGS | — |
| 0 | MWM | — |
Properties (6)
- additional_info
- SC3067414
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-01-17T04:40:51-08:00
- sewer_category
- Gravity
- year_laid
- 32789
