Wastewater/Activity/PacpInspection/1.0Jan 18, 2017, 07:54 AM
H 0863_H 0862_01182017_001053.mp4
- Date
- 01/17/2017
- W/O
- 613425
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00938
- PipeID
- P20422
- Time
- 11:54 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4213
- Sewer Name
- H JOINT OUTFALL H - UNIT 7B RELIEF
- City
- INDUSTRY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 38
- Purpose
- Routine Assessment
- Project
- WO_613425_TV15072_JAN2017
- Material
- RCP-PTL
- Shape
- Circular
- Height
- 66 in.
- Width
- 66 in.
- Upstream MH
- H 0863
- Downstream MH
- H 0862
- Dir. of Survey
- Downstream
- Length Surveyed
- 494.7 ft.
- Total Length
- 494.7 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2S00
- O&M Rating
- 198
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 198
Observation photos (1)

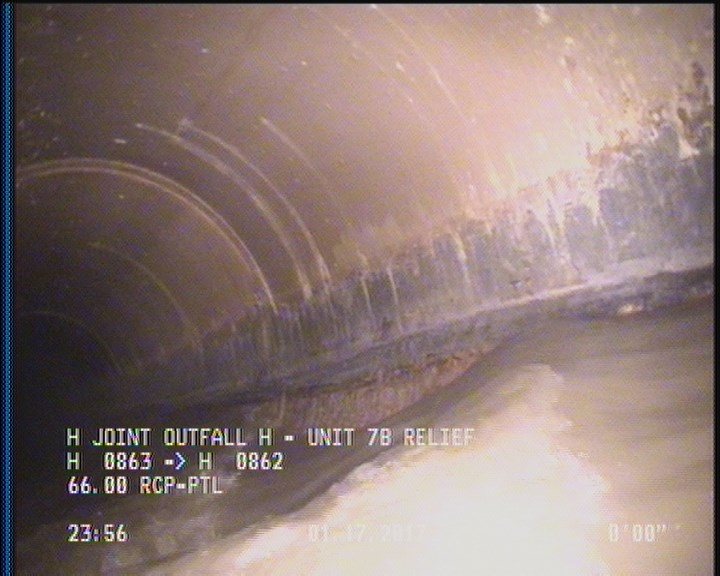

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 494.7 | AMH | H 0862 |
| 0 | MWL | — |
| 0 | AMH | H 0863 |
| 494.7 | DAGS | — |
| 0 | MWM | — |
| 2 | DAGS | — |
Properties (6)
- additional_info
- SC306715
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-01-17T23:54:32-08:00
- sewer_category
- Gravity
- year_laid
- 34292
