Wastewater/Activity/PacpInspection/1.0Jun 5, 2017, 11:00 AM
15 0673_15 0672 _05062017_054304.mp4
- Date
- 06/05/2017
- W/O
- 640776
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00602
- PipeID
- P12565
- Time
- 4:00 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4539
- Sewer Name
- 15 EL MONTE AVENUE TRUNK
- City
- EL MONTE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- WO_640776_TV15208_JUN2017
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 15 0673
- Downstream MH
- 15 0672
- Dir. of Survey
- Downstream
- Length Surveyed
- 268.3 ft.
- Total Length
- 268.3 ft.
- Structural Index
- 3
- Structural Quick
- 3J2B
- Structural Rating
- 189
- O&M Index
- 2
- O&M Quick
- 2J00
- O&M Rating
- 106
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 295
Observation photos (4)

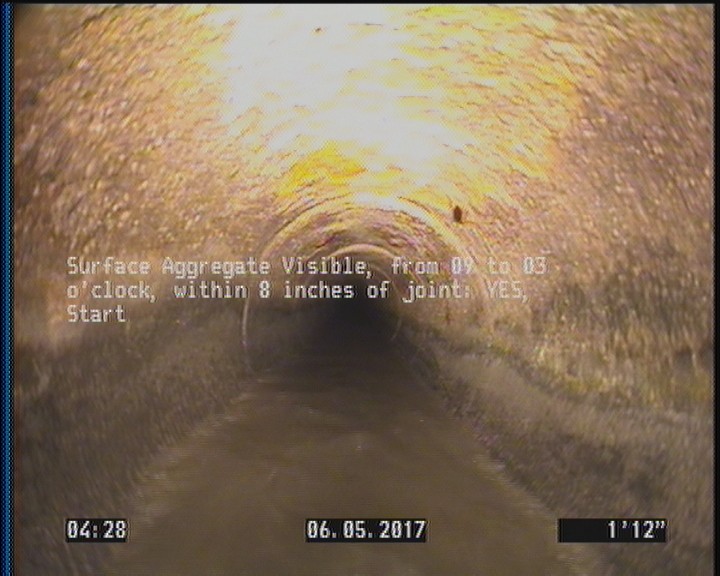

2 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

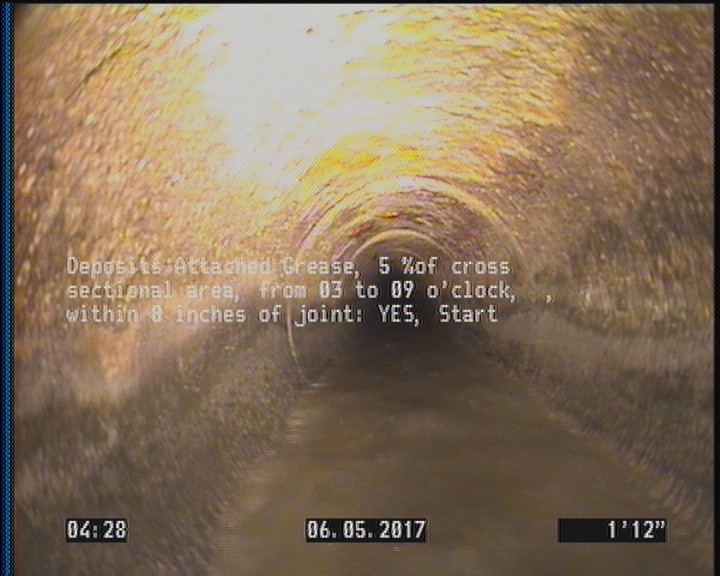

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

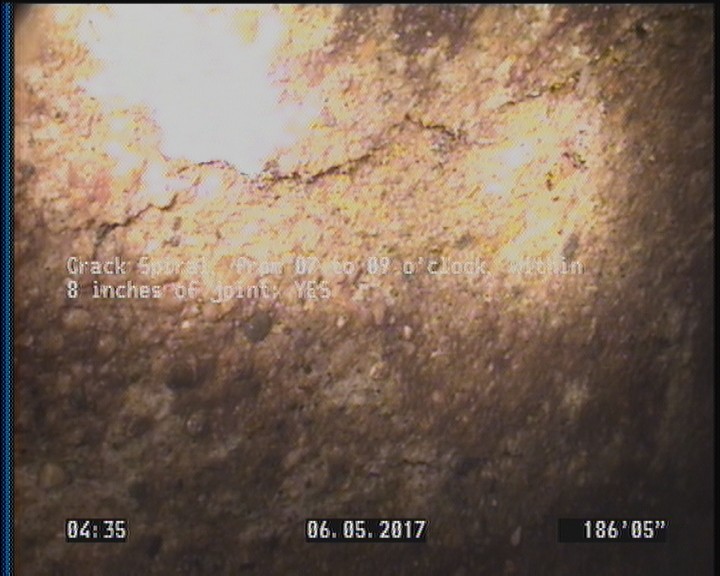

186.4 ft. - Crack Spiral, from 07 to 09 o'clock, within 8 inches of joint: YES

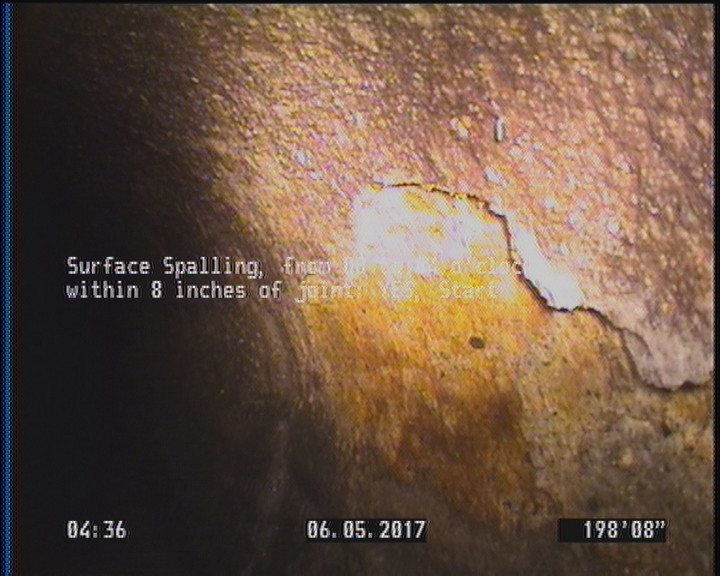

198.7 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 268.3 | DAGS | — |
| 268.3 | SAV | — |
| 198.7 | SSS | — |
| 186.4 | CS | — |
| 2 | SAV | — |
| 268.3 | MGO | CONNECTION AT 3 OC |
| 265.8 | TFC | — |
| 221.3 | TFC | — |
| 2 | DAGS | — |
| 268.3 | AMH | 15 0672 |
| 268.3 | SSS | — |
| 0 | MWM | — |
| 0 | AMH | 15 0673 |
Properties (5)
- additional_info
- SC345354
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-06-05T04:00:14-07:00
- sewer_category
- Gravity
