Wastewater/Activity/PacpInspection/1.0May 25, 2017, 09:06 AM
15 0950_15 0949 _20170525_034022.mp4
- Date
- 05/25/2017
- W/O
- 635526
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00635
- PipeID
- P12079
- Time
- 2:06 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4531
- Sewer Name
- 15 TYLER AVENUE RELIEF TRUNK
- City
- EL MONTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- WO_635526_TV15082_MAY2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 15 0949
- Downstream MH
- 15 0950
- Dir. of Survey
- Upstream
- Length Surveyed
- 581.9 ft.
- Total Length
- 581.9 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2y1B
- O&M Rating
- 596
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 596
Observation photos (4)
5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
8.1 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start
12.6 ft. - Alignment Left, 10 %, Start

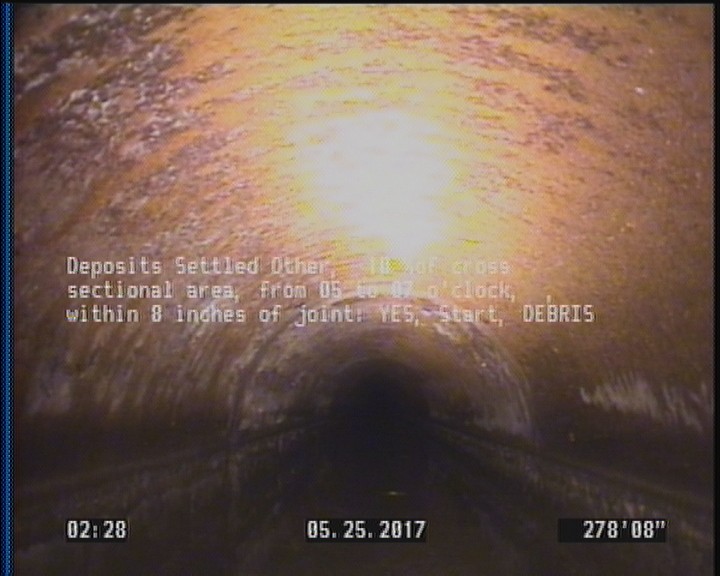

278.7 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - DEBRIS
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 15 0949 |
| 5 | DAGS | — |
| 8.1 | DAE | — |
| 581.9 | AMH | 15 0950 |
| 12.6 | LL | — |
| 581.9 | DSZ | DEBRIS |
| 581.9 | DAE | — |
| 581.9 | DAGS | — |
| 278.7 | DSZ | DEBRIS |
| 0 | MWM | — |
| 82.7 | LL | — |
| 0 | MWL | — |
Properties (6)
- additional_info
- SC340745
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-05-25T02:06:59-07:00
- sewer_category
- Gravity
- year_laid
- 30503
