Wastewater/Activity/PacpInspection/1.0May 3, 2017, 06:01 AM
B 0247_B 0246 _02052017_230228.mp4
- Date
- 05/02/2017
- W/O
- 635430
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00077
- PipeID
- P08716
- Time
- 11:01 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4441
- Sewer Name
- B JOINT OUTFALL B - UNIT 1E
- City
- ROSEMEAD
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 31
- Purpose
- Routine Assessment
- Project
- WO_635430_TV02096_MAY2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- B 0247
- Downstream MH
- B 0246
- Dir. of Survey
- Downstream
- Length Surveyed
- 38.4 ft.
- Total Length
- 38.4 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2700
- O&M Rating
- 14
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 14
Observation photos (1)

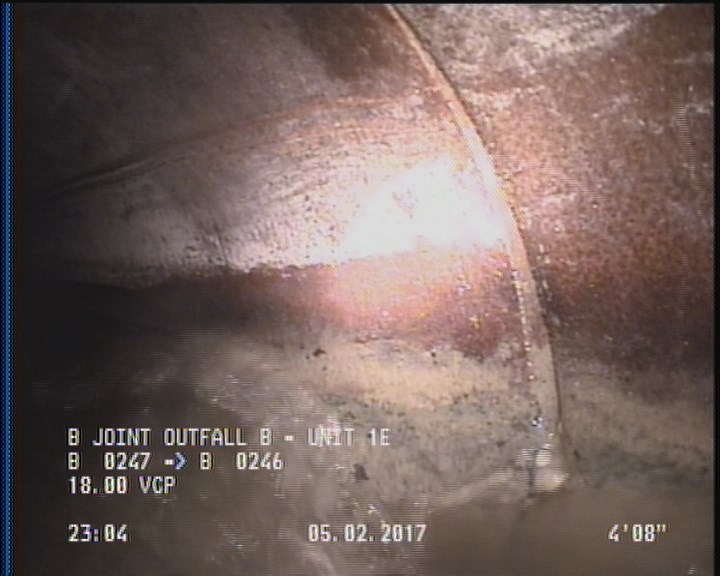

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | COCKROACHES IN MANHOLE |
| 0 | MWM | — |
| 0 | AMH | B 0247 |
| 2 | DAGS | — |
| 0 | MGO | CONNECTION AT MH 4 O'CLOCK |
| 0 | MWL | — |
| 38.4 | DAGS | — |
| 38.4 | MGO | COCKROACHES IN MANHOLE |
| 38.4 | AMH | B 0246 |
Properties (5)
- additional_info
- SC345214
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-05-02T23:01:56-07:00
- sewer_category
- Gravity
